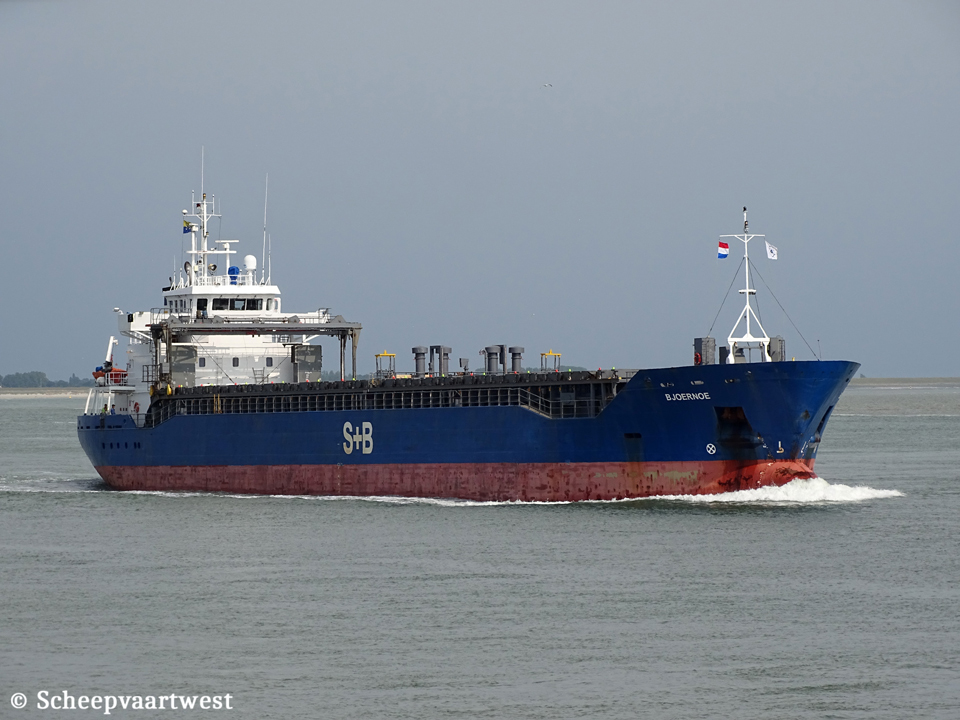

Westerschelde 10 June 2020 |
 |
 |
|

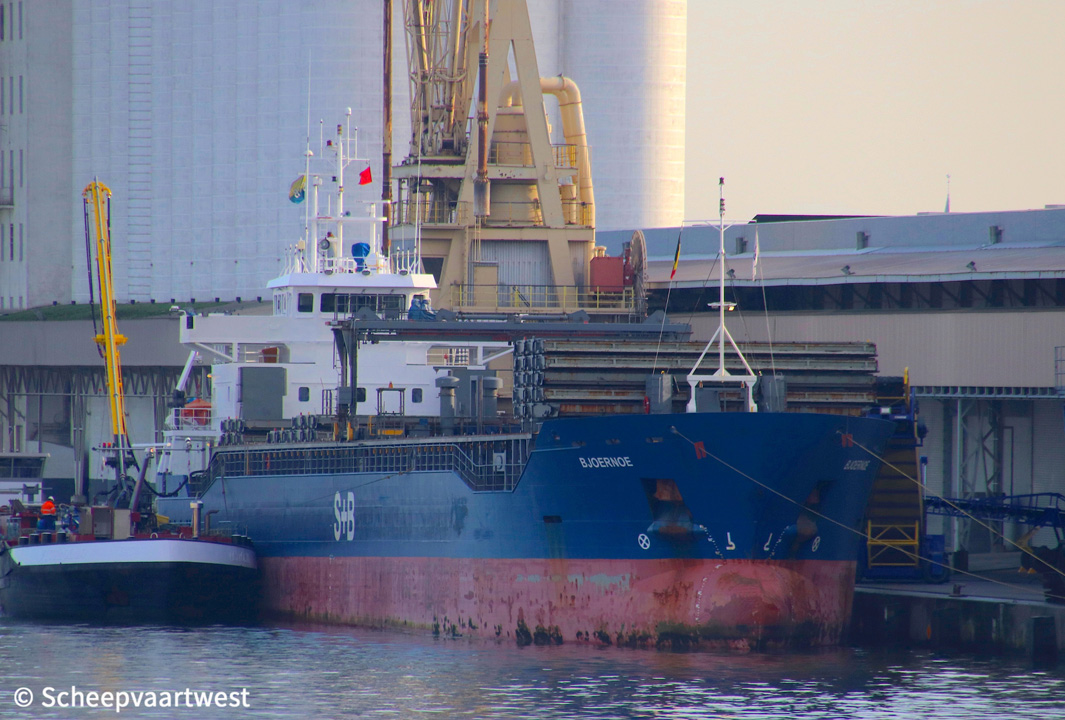

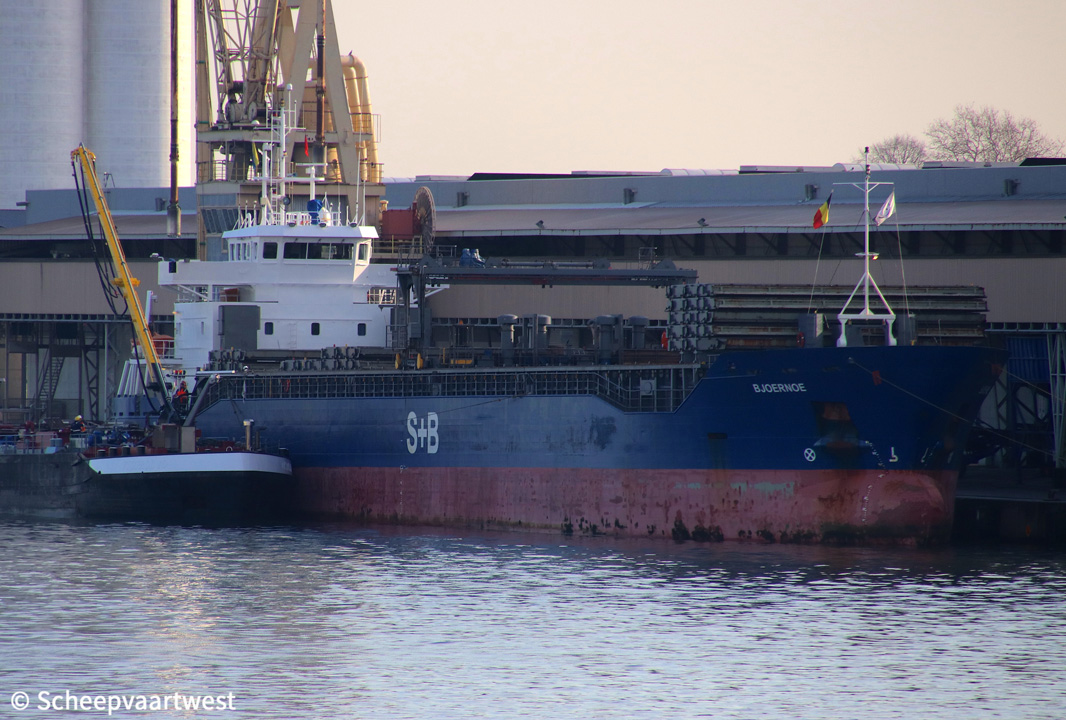

| Antwerpen 18/12/19 | Antwerpen 18/12/19 | |
|
Name |
BJOERNOE |
|
Previous names |
02/2007 - 04/2017 Balticdiep |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9342140 |
|
Call sign |
5BRP4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
05/2007 - 09/2010 Portugal, Madeira - Call sign: CQOG 09/2010 - 04/2017 The Netherlands, Groningen - Call sign: PCFD |
|
GT |
4.102 t |
|
DWT |
Summer: 5.490 t |
|
NT |
1.851 t |
|
Number of 20ft containers |
On hatches: 111 In hold: 168 Total: 279 |
|
Number of 40ft containers |
On hatches: 51 In hold: 60 Total: 111 |
|
Container capacity 14t |
241 |
|
Length |
106,86 m overall 100,62 m between perpendiculars |
|
Breadth |
15,20 m moulded |
|
Draught |
Summer: 5,25 m fully laden |
|
Air draft |
26,00 m in ballast |
|
Depth |
6,60 m moulded to main deck |
|
Speed |
Max: 12,0 knots |
|
Built |
2007 |
|
Keel laid |
30/06/1994 |
|
Launch date |
22/11/2006 |
|
Date of completion |
15/05/2007 |
|
Builder casco |
Societatea Comerciala Severnav S.A. Drobeta-Turnu Severin Rumania Yard number: 6620002 |
|
Builder completion |
Bodewes Scheepswerven B.V. Hoogezand The Netherlands Yard number: 662 |
|
Hull material |
Steel |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.692 bhp at 750 rpm Manufacturer: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 221 rpm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
1x 350 kW |
|
Generators |
1x Sisu Diesel 634 DSBIG - 4 stroke 6 cylinder 111 x 145 mm diesel engine 200 kW coupled with generator 140 kW |
|
Emergency generator |
1x Sisu Diesel 634 DSBIG diesel generatorset 150 kW |
|
Bow thruster |
1x Tunnel thruster 300 kW / 408 bhp, forward |
|
Number of holds |
2x Boxshaped Hold 1: 37,50 x 12,65 x 8,99 m (29,25 m length without narrowings) Hold 2: 37,50x 12,65x 8,99 m (35,75 m length without narrowings) |
|
Cargo hold capacity |
Grain: Hold 1abt. 4.095 m³ / 144.577 ft³ Hold 2abt. 4.269 m³ / 150.696 ft³ Total abt. 8.664 m³ / 295.273 ft³ |
|
Hold ventilation |
6x Air changes per hour |
|
Number of hatches |
2 Hatch 1: 37,50 x 12,65 m Hatch 2: 37,50 x 12,65 m |
|
Hatch type |
Pontoon type, 12 pcs (operated by gantry crane) |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatchcover: 1,75 t/m² |
|
Tank capacities |
HFO: 212 m³ MGO: 68 m³ Fresh water: 36 m³ Water ballast: 2.887 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
Crew size |
10 |
|
Manager |
Schulte & Bruns GmbH & Co. KG D-26871 Papenburg Germany |
|
Previous managers |
05/2007 - 04/2017 Feederlines B.V., Groningen - The Netherlands 04/2017 Hartmann Dry Cargo Germany GmbH & Co. KG, Leer - Germany |
|
Registered owner |
Coastal-Bulker UG (haftungsbeschränkt) & Co. MS "PAPENBURG" KG Germany |
|
Previous names & owners |
05/2007 - 04/2017 Balticdiep - Beheermaatschappij Balticdiep B.V., Groningen - The Netherlands |
|
Latest data adjustment |
16 February 2020 |
