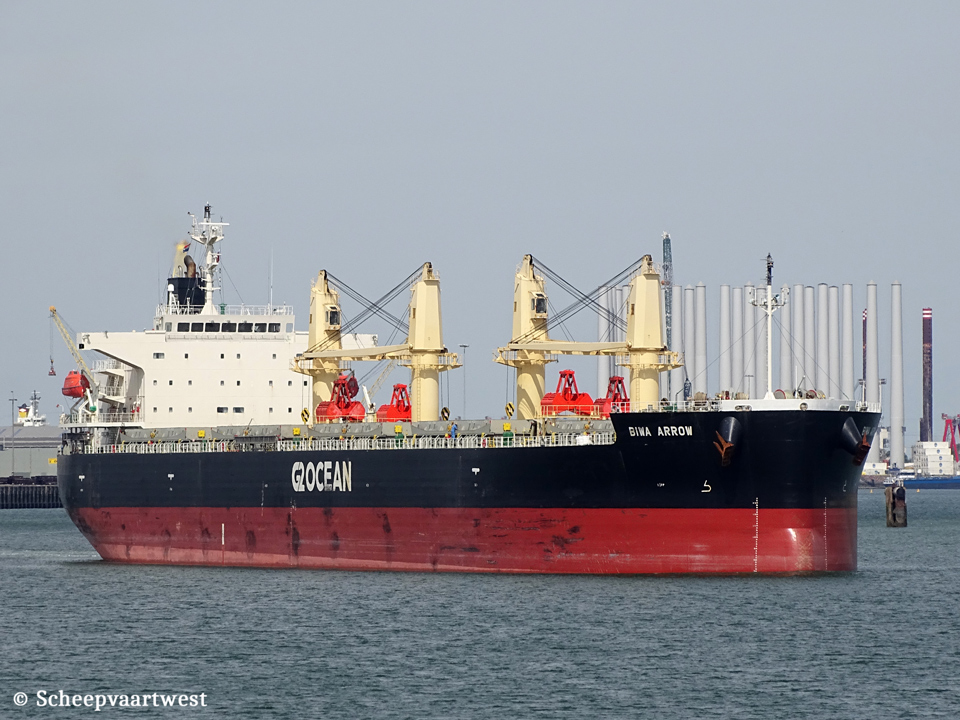

Biwa Arrow IMO 9687095 01
Westerschelde 01 June 2020



Name

BIWA ARROW

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9687095

Call sign

HOGX

Flag

Republic of Panama

Port of registry

Panama City

GT

31.864 t

DWT

55.978 t

NT

16.746 t

Length

189,99 m overall

Breadth

32,26 m moulded

Draught

Summer: 12,57 m

Moulded L x B x D

185,79 x 32,26 x 17,87 m

Registered L x B x D

185,96 x 32,26 x 17,87 m

Freeboard

Summer: 5.354 mm

Depth

17,87 t moulded

Speed

Max: 15,5 knots

Built

2014

Keel laid

28/12/2010

Launch date

26/09/2014

Date of completion

14/11/2014

Builder

Oshima Shipbuilding Co.

Saikai

Japan

Yard number

10656

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

1x MAN-B&W/Mitsui 6S50MC-C 2 - stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 7.612 kW / 10.349 hp at 102,0 rpm

Manufacturer: Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 475 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler: 0,69 MPa

Evaporation:1,70 t/h

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

4x Generatorsets total 1.750 kVA

Number of holds

5

Cargo hold capacity

Bale: 64.064 m³

Grain: 64.634 m³

Number of hatches

5

Tank capacities

Fuel oil: 2.162 m³

Fresh water: 321 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Commerical manager

G2 Ocean AS

Grieg-Gaarden, C Sundts gate 17

5004 Bergen

Norway

ISM Manager

Chugoku Sougyo Co., Ltd.

1994-4, Tsuneishi, Numakuma-cho, Fukuyama-shi, Hiroshima-ken, 720-0313

Japan

Registered owner

Caribstar Shipping SA

Care of Chugoku Sougyo Co., Ltd.

1994-4, Tsuneishi, Numakuma-cho, Fukuyama-shi, Hiroshima-ken, 720-0313

Japan

Latest data adjustment

21 December 2021
