Westerschelde 22 October 2016 |
|
Name |

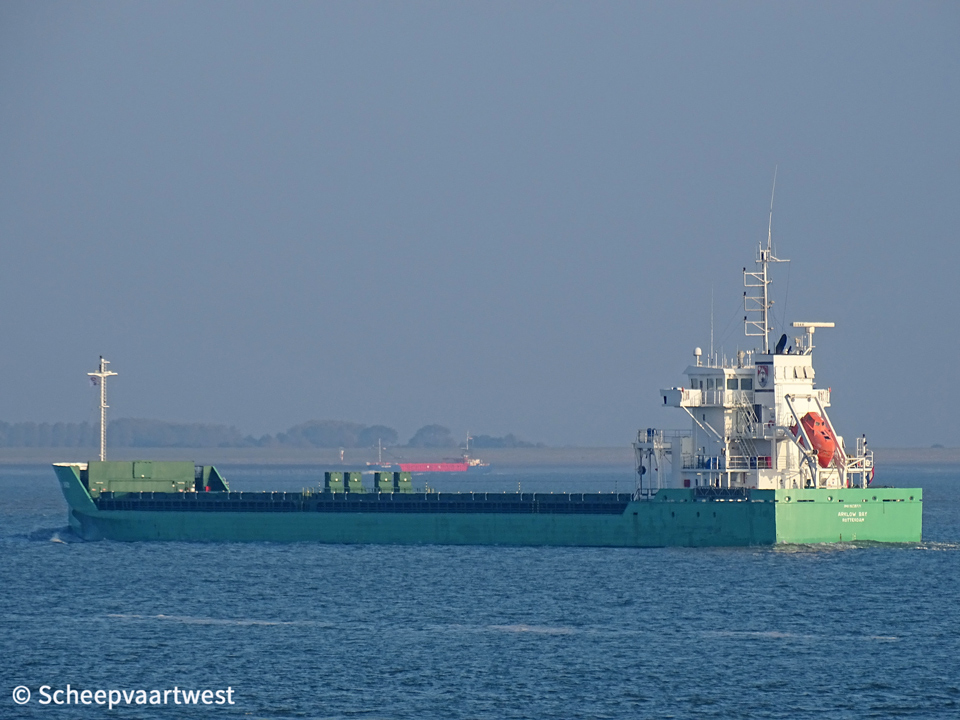

ARKLOW BAY |
|
Type |
General cargo ship - heavycargo - Occasional dry bulk cargo |
|
IMO-number |
9638771 |
|
Call sign |
PBPI |
|
Flag |
Th Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
5.065 t |
|
DWT |
Summer: 8.660 t |
|
NT |
2.655 t |
|
Displacement |
10.815 t |
|
Length |
119,49 m overall 116,89 m between perpendiculars |
|
Breadth |
14,99 m |
|
Draught |
Summer: 7,19 m |
|
Air draft |
Min: 21,50 m |
|
Freeboard |
2.524 mm |
|
Depth |
9,70 m |
|
Speed |
13,0 knots |
|
Built |
2014 |
|
Launch date |
07/03/2014 |
|
Date of completion |
10/04/2014 |
|
Builder |
Scheepswerf Ferus Smit B.V. Westerbroek The Netherlands |
|
Yard number |
410 |
|
Hull material |
Steel |
|
Movable bulkheads |
Portable bulkhead may be placed in 5 positions for cargo separation and storage position |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.665 kW / 3.621 bhp at 750 rpm Build: 30/05/2013 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Berg screw propeller controllable pitch - aft at 143 rpm |
|
Shaft generator |
1x 530 kVA - 424 kW |
|
Generators |
2x Sisu main diesel generatorsets each 295 kVA - 236 kW - 340 hp at 1.500 rpm |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 158 hp |
|
Bow thruster |
1x Electric bow thruster 380kW / 517 bhp, forward |
|
Number of cargo holds |
2 |
|
Total capacity of holds |
Grain/bale: Hold 1: 4.037,7 m³ / 142.484 ft³ Hold 2: 5.867,9 m³ / 207.222 ft2 Total: 9/902,6 m³ / 349.706 ft³ |
|
Hatch type |
Coops & Nieborg pontoon system |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Ballast: 3.547 m³ HFO: 286 m³ Gas oil: 38 m³ Fresh water: 53 m³ Lub oil: 22 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Arklow Shipping Nederland B.V. Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Registered owner |
Glenthorne Shipping Ltd. Arklow Irish Republic |
|
Latest data adjustment |
29 January 2020 |
