| Westerschelde 20 May 2017 |
|
Name |

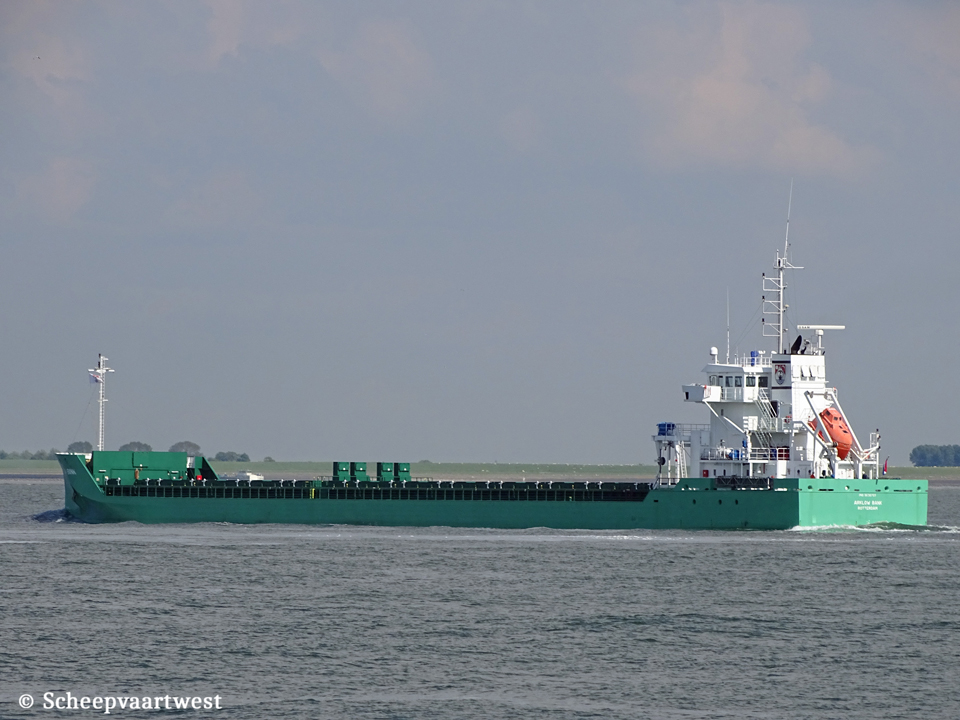

ARKLOW BANK |
|
Type |
General cargo ship - Heavycargo - Occasional dry bulk cargo |
|
IMO-number |
9638769 |
|
Call sign |
PCWW |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
5.065 t |
|
DWT |
Summer: 8.660 t Winter: 8.407 t |
|
NT |
2.655 t |
|
Length |
119,49 m overall 116,89 m between perpendiculars |
|
Breadth |
14,99 m moulded |
|
Draught |
Summer: 7,19 m Winter: 7,05 m |
|
Air draft |
Min: 23,28 m |
|
Freeboard |
2.524 mm |
|
Depth |
9,70 m moulded |
|
Speed |
Max: 14,3 knots Service: 13,0 knots |
|
Built |
2014 |
|
Launch date |
15/11/2013 |
|
Date of completion |
22/01/2014 |
|
Builder |
Scheepswerf Ferus Smit B.V. Groningen The Netherlands |
|
Yard number |
Steel |
|
Hull material |
409 |
|
Movable bulkheads |
1x Portable (6positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25C - 4 stroke single acting 8 cylinder 155 x 400 mm combustion engine 2.665 kW / 3.623 hp at 750 rpm Build: 30/05/2013 Manufacturer: Caterpillar Motoren G.m.b.H. & Co. K.G., Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 143 rpm |
|
Shaft generator |
1x 198 kW |
|
Generators |
2x Sisu Diesel main diesel generatorsets each 295 kVA - 236 kW - 340 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 158 hp |
|
Bow thruster |
1x Electric bow thruster 380 kW |
|
Number of holds |
2 Hold 1: 37,20 x 12,33 x 9,65 m Hold 2: 49,50 x 12,33 x 9,63 m |
|
Cargo hold capacity |
Grain/Bale: Hold 1: 4.034,9 m³ / 142.484 ft³ Hold 2: 5.867,5 m³ / 207.22 Total: 9.902,4 m³ / 349,706 ft³ |
|
Hold ventilation |
6x Changes per hour in empty holds |
|
Number of hatches |
2 |
|
Hatch type |
Pontoon |
|
Max permitted loads |
On hatches: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel: 325,24 m³ |
|
ISM & commercial manager |
Arklow Shipping Nederland B.V. Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Registered owner |
Glenthorne Shipping Ltd., Arklow - Irish Republic Care of Arklow Shipping ULC Arklow Ireland |
|
Latest data adjustment |
11 September 2023 |
