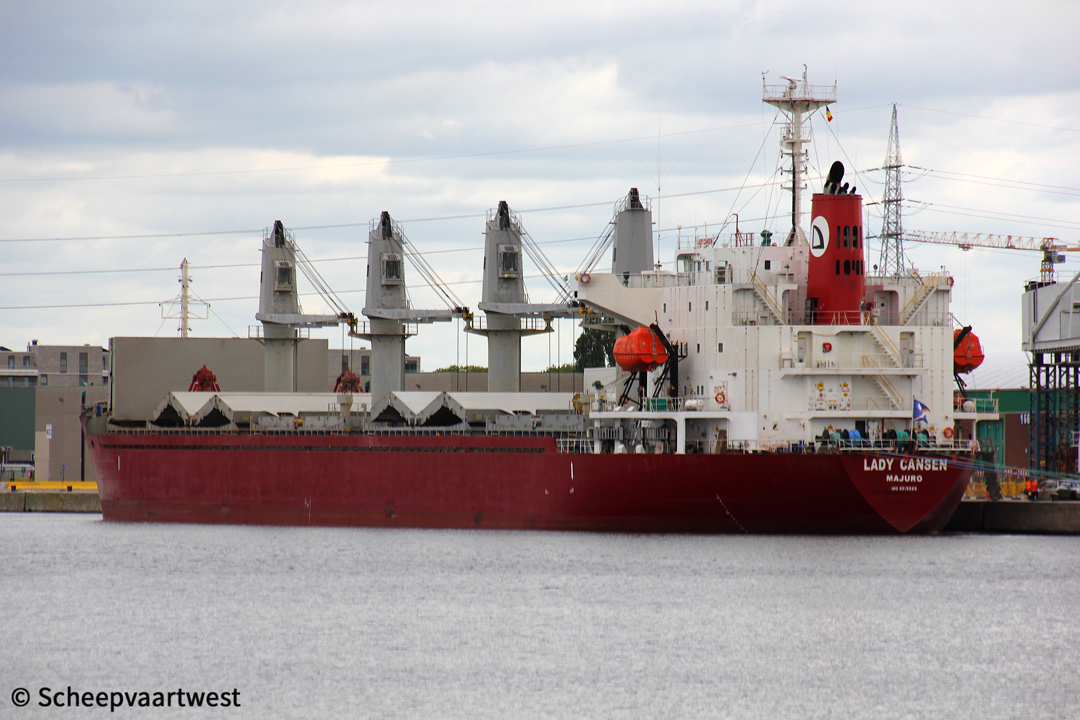

Lady Cansen 01

Antwerpen 19 September 2019



Name

LADY CANSEN

Previous names

2009 - 2016 IS Trinity

Type

General cargo vessel - Carriage of dangerous goods

IMO-number

9515565

Call sign

V7YL6

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

2009 - 2016 Republic of Panama, Panama City - Call sign: 3FSC6

GT

18.096 t

DWT

Summer: 28.740 t

NT

9.649 t

Displacement

35.634 t

Length

169,54 m overall

160,40 m between perpendiculars

Breadth

27,20 m moulded

Draught

Max: 9,76 m

Freeboard

4.081 mm

Depth

13,80 m moulded

Speed

Max: 16,0 knots

Built

2009

Keel laid

23/06/2006

Delivery date

17/07/2009

Builder

Imabari Shipbuilding Co., Ltd.

52 Koura-Cho 1-Chome

Imabari

Japan

Yard number

699

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 6 cylinder combustion engine

Propellers

1x Fixed Pitch Propeller

Boilers

1x Composite auxiliary boiler - 8 Mpa

Manufacturer: Miura Co. Ltd.

Generators

3x Yanmar 6EY18AL - 6 cylinder combustion engines each 500 kW coupled with generators each 440 kW

Number of cargo holds

5

Cargo hold capacity

Grain: 37.181,09 m³

Bale: 35.401,98 m³

Number of hatches

5

Hatch 1: 12,80 x 18,24 m

Hatch 2,3,4: 20,80 x 22,80 m

Hatch 5: 17,60 x 22,80 m

Tank capacities

Lube oil: 79,77 m³

Ballast: 9.520,46 m³

Fresh water: 260,76 m³

Fuel oil: 1.689,85 m³

Diesel oil: 21,88 m³

Lifting equipment

1x General use crane port - SWL 1,5 t

1x General use crane Stbd. - 0,9 t

Cargo gear

4x Deck cranes - SWL 30,5 t each

Grabs: 3x 15 m³ remote control

Operator

Devbulk Gemi Isletmeciligi A.S

111 Pasalimani Cad. 34674 Kuzguncuk

Uskudar - Istanbul

Turkey

Registered owner

Lady Cansen Shipping Ltd.

Previous names & owners

2009 - 2016 IS Trinity - Eastern Muse SA

Latest data adjustment

10 February 2020
