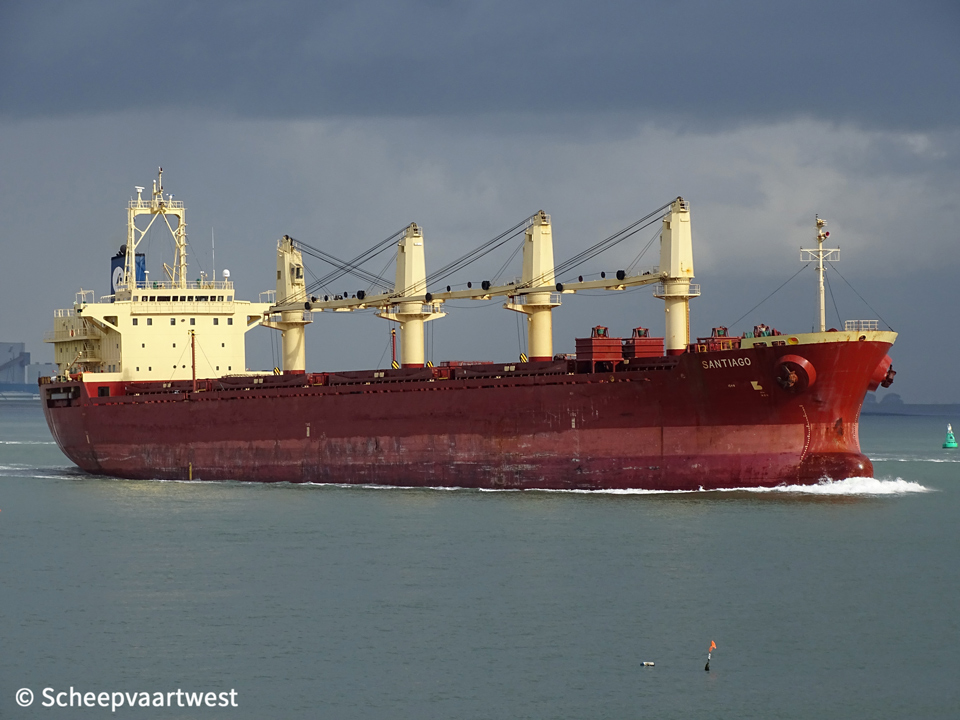

Santiago 01

Westerschelde 07 September 2019



Name

SANTIAGO

Previous names

2002 - 12/2014 UBC Singapore

Type

Multi-purpose dry cargo ship

IMO-number

9255050

Call sign

P3GK9

Flag

Cyprus

Port of registry

Limassol

GT

19.743 t

DWT

Summer: 31.759,4 t

Winter: 31.035 t

NT

10.718 t

Number of 20ft containers

363

Length

171,59 m overall

163,60 m Between perpendiculars

Breadth

27,00 m extreme

Draught

Summer: 10,42 m

Winter: 10,20 m

Forecastle

11,77 m

Poop

8,67 m

Freeboard

4.437 mm

Depth

14,80 m to main deck

Speed

Max: 15,9 knots

Built

2002

Keel laid

20/02/2002

Launch date

12/04/2002

Date of completion

01/06/2002

Builder

Saiki Heavy Industries Co., Ltd.

Japan

Yard number

1117

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x Mitsubishi 6UEC52LA - 2 stroke 6 cylinder 520 x 1.600 mm combustion engine 7.060 kW at 133,0 rpm

Manufacture:; Akasaka Diesels, Ltd. Yaizu Works - Japan

Propellers

1x Fixed pitch propeller

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 6,8 bar

Heating surface: 14,0 m²
Heating surface: 174,0 m²

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Electric installations

1x Plant 440/220 V - 600 kVA

1x Plant 440/220 V - 600 kVA

1x Plant 440 V - 313 kVA

Shaft generator

2x Yanmar 6N18L-EV main diesel generatorsets 550 kW / 600 kVA at 720 rpm

1x Caterpillar 3406 DITA main diesel generatorset 500 kW at 720 rpm

Generators

1x Caterpillar diesel generatorset 250 kW / 313 kVA

Emergency generator

2x Receivers each 4.800 litres - 25,5 bar

Number of holds

5 - (nos. 2+3+4 box shaped)

No. 1: 22,12 x 15,00 x 13,20 m

No. 2: 27,65 x 22,86 x 13,20 m

No. 3: 27,65 x 22,86 x 13,20 m

No. 4: 27,65 x 22,86 x 13,20 m

No. 5: 27,65 x 18,00 x 13,20 m

Cargo hold capacity

Grain / bale

Hold 1: 214.124 / 209.363 ft³

Hold 2: 316.656 / 314.462 ft³

Hold 3: 316.603 / 313.918 ft³

Hold 4: 316.603 / 314.425 ft³

Hold 5: 316.603 / 300.604 ft³

Total: 1.474.593 / 1.452.772 ft³

Hold ventilation

mechanical / 4x air changes per hour

Number of hatches

5

No. 1: 13,43 x 15,00 m

No. 2: 20,54 x 22,86 m

No. 3: 20,54 x 22,86 m

No. 4: 20,54 x 22,86 m

No. 5: 19,75 x 18,00 m

Tank capacities

Ballast: 19.330,8 m³

Fuel oil: 1.396 m³- 69%

MDO: 370 m³ - 96%

Fresh water: 213,9 m³

Anchor equipment

3x Anchors weight each 6.450 kg

Length: 605,00 m

Diameter: 62 mm

Cargo gear

4x Hydraulic cranes - SWL 30,0 t each which are equipped with motor grabs capacity: 8,0 m³ -1.8 t/m³ + 12,0 m³

Crew size

30

Manager

Intership Navigation Co. Ltd.
32 Miltonos Street
Limassol
Cyprus

Registered owner

Southern Princess Shipping Co. Ltd.

Group

Hartmann

Latest data adjustment

01 December 2019
