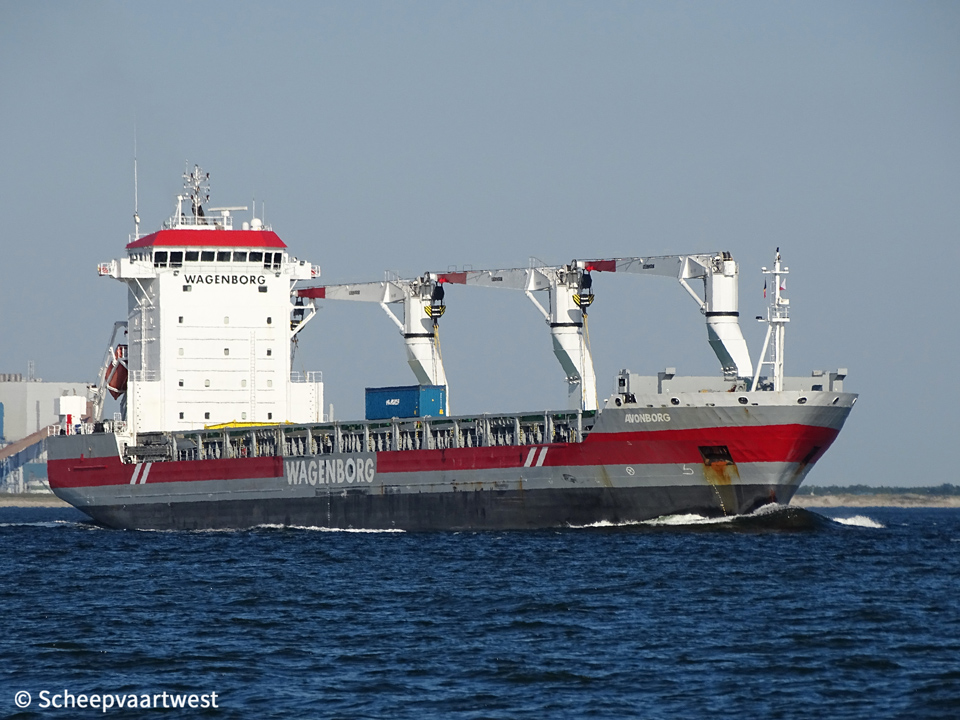

Westerschelde 01 July 2018 |
|
Name |
AVONBORG |
|
Previous names |
Build as: 2012 Archerborg |
|
Type |
Multi-purpose cargo ship - Open hatch fully box - Strengthened for heavy cargoes - Container cargoes in all holds and on upper deck and on all hatch covers |
|
IMO-number |
9466362 |
|
Call sign |
PCOF |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
11.885 t |
|
DWT |
Summer: 17.294 t |
|
DWCC |
Summer: 15.750 t |
|
NT |
5.651 t |
|
Number of 20ft containers |
962 |
|
Container capacity 14t |
640 |
|
Reefer capacity |
60 |
|
Length |
142,92 m overall 133,36 m between perpendiculars |
|
Breadth |
21,50 m overall |
|
Draught |
Max: 9,69 m |
|
Air draft |
35,40 m in ballast |
|
Depth |
13,30 m moulded |
|
Speed |
Service: 14,0 knots Max: 17,0 knots |
|
Built |
2012 |
|
Keel laid |
09/11/2011 |
|
Launch date |
13/01/2012 |
|
Date of completion |
22/05/2012 |
|
Builder |
Hudong Zhonghua Shipbuilding (Group) Co. Ltd. |
|
Yard number |
1580A |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L46F - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 7.500 kW / 10.190 bhp at 600 rpm |
|
Propellers |
1x Wärtsilä/ Lips - 4 blades, diameter 4.800 mm |
|
Bow thruster |
750 kW |
|
Number of holds |
2x Fully box and double skinned Hold 1: 35,80 x 17,75 x 13,50 m Hold 2: 52,10 x 17,75 x 13,50 m |
|
Cargo hold capacity |
Grain/Bale: Hold 1: 269.401 ft³ - 7.628,58 m³ Hold 2: 438,232 ft³ - 12.409,34 m³ Total: 707.633 ft³ - 20.037,93 m³ |
|
Hold ventilation |
12x Air changes per hour basis empty holds. Both holds fitted with dehumidifier system |
|
Number of hatches |
2 Hatch 1: 35,80 x 17,75 m Hatch 2: 52,10 x 17,75 m |
|
Hatches type |
MacGregor navire hydraulic steel pontoon hatches |
|
Tween decks |
The vessel is equipped with a full tweendeck, consisting of loose tweendeck pontoons of each: Tweendeck sizes: No. 1: 9,90 x 3,22 x 0,90 m weight abt. 6 tons No. 2 + 3: 12,57 x 6,48 x 0,90 m weight abt. 25 tons No. 4: 17,65 x 6,48 x 0,90 m weight abt. 33 tons Tweendecks can be used as vertical bulkheads at every 20ft interval |
|
Max permitted loads |
Tanktop: 20,00 t/m² Tweendeck: 4,00 t/m² Weatherdeck: 1,75 t/m² |
|
Tank capacities |
HFO: 1.350 m³ MGO: 215 m³ Water ballast: 5.490 m² Fresh water: 280 m³ |
|
Cargo gear |
3x Liebherr cranes deck cranes - SWL 60,0 t each |
|
Manager |
Wagenbotg Shipping |
|
Registered owner |
C.V. m.s. Avonborg |
|
Latest data adjustment |
24 August 2019 |
