Florø, Norway 09 June 2019 |
 |
| Florø, Norway 09/06/19 |
|
Name |

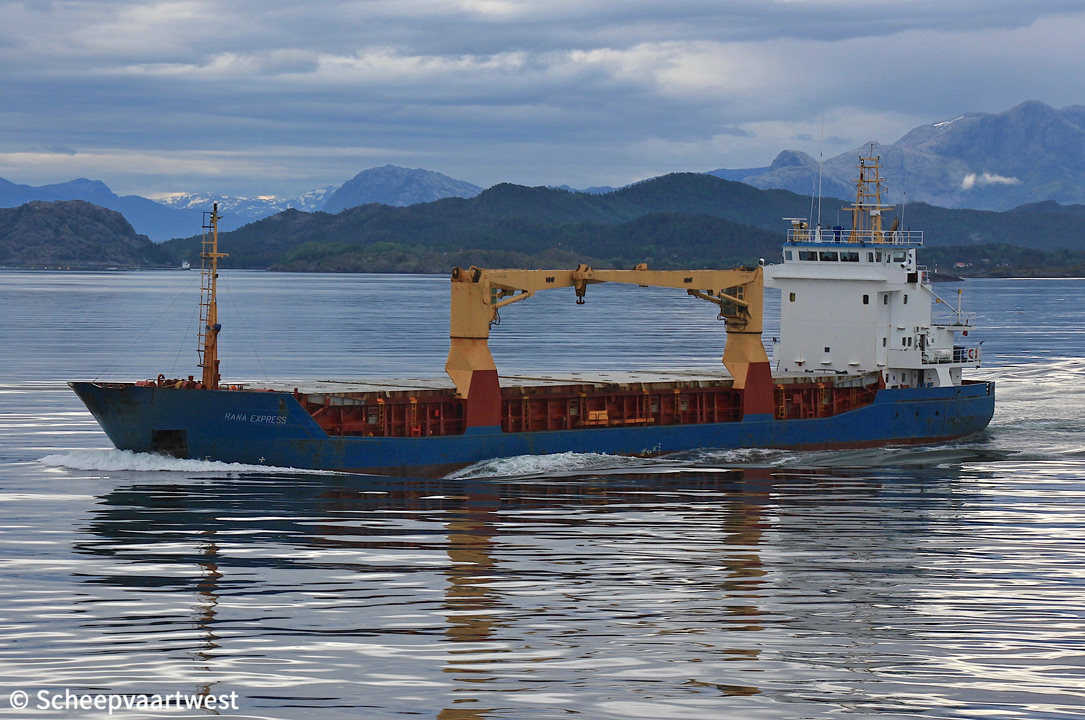

RANA EXPRESS |
|
Previous names |
2000 - 10/2000 Eemcarib 10/2000 - 02/2003 Neuwerk 02/2003 - 08/2007 Adelheid Sibum |
|
Type |
General cargo ship - Container carriage |
|
IMO-number |
9210048 |
|
Call sign |
LAVQ |
|
Flag |
Norway |
|
Port of registry |
Bodø |
|
Previous flags |
2000 - 10/2000 The Netherlands, Rotterdam - Call sign: PFAV 10/2000 - 08/2007 Antigua & Barbuda, St. John’s - Call sign: V2MA6 |
|
GT |
2.532 t |
|
DWT |
Summer: 3.604 t |
|
NT |
1.351 t |
|
Number of 20ft containers |
In hold: 105 On deck: 62 Total: 167 |
|
Number of 40ft containers |
In hold: 48 + 9 TEU On deck: 23 + 12 TEU Total: 71 + 21 TEU |
|
Length |
86,40 m overall 81,32 m between perpendiculars |
|
Breadth |
12,80 m extreme |
|
Draught |
Max: 5,52 m |
|
Depth |
7,10 m |
|
Speed |
11,3 knots |
|
Built |
2000 |
|
Keel laid |
03/04/1998 |
|
Launch date |
03/02/1999 |
|
Delivery date |
24/01/2000 |
|
Builder casco |
Slovenske Lodenice A.S. Yard number: 1601 |
|
Builder completion |
Galatz Romania |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2x Moveable bulkheads, full hold height, 10 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6L28/32A - 4 stroke single acting6 cylinder combustion 280 x 320 mm engine 1.998 bhp Manufacturer: MAN-B&W Diesel A/S (Alpha Diesel), Frederikshavn - Denmark |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
470 kVA |
|
Generators |
2x MTU 6R183 main diesel generatorsets each 230 kW |
|
Emergency generator |
1x MTU 6RO99 diesel generatorset 47 kW |
|
Bow thruster |
1x Jamstram BU 40F - 185 kW |
|
Number of holds |
1x Box double skin 56,50 x 10,20 x 8,10 m |
|
Cargo hold capacity |
Grain: 4.649 m³ Bale: 4.620 m³ |
|
Number of hatches |
1 56,50 x 10,20 m |
|
Hatch type |
Kvaerner Multifold Crocodile |
|
Tank capacities |
Ballast: 1.578,5 m³ Fuel: 193 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 34 mm |
|
Cargo gear |
2x Electric hydraulic cranes - SWL 30,0 t each |
|
Manager |
Seines AS |
|
Previous managers |
2000 - 10/2000Wesmar Shipping B.V., Eemnes - The Netherlands 10/200 - 08/2007 Reederei Bernd Sibum GmbH & Co. KG, Hamburg - Germany |
|
Registered owner |
Seines AS |
|
Previous names & owners |
2000 - 10/2000 Eemcarib- Wesmar Shipping B.V., Eemnes - The Netherlands 10/2000 - 02/2003 Neuwerk - Reederei Bernd Sibum GmbH & Co. KG, Hamburg - Germany 02/2003 - 08/2007 Adelheid Sibum - Reederei Bernd Sibum GmbH & Co. KG, Hamburg - Germany |
|
Latest data adjustment |
11 September 2019 |
