Optimana - IMO 9253856

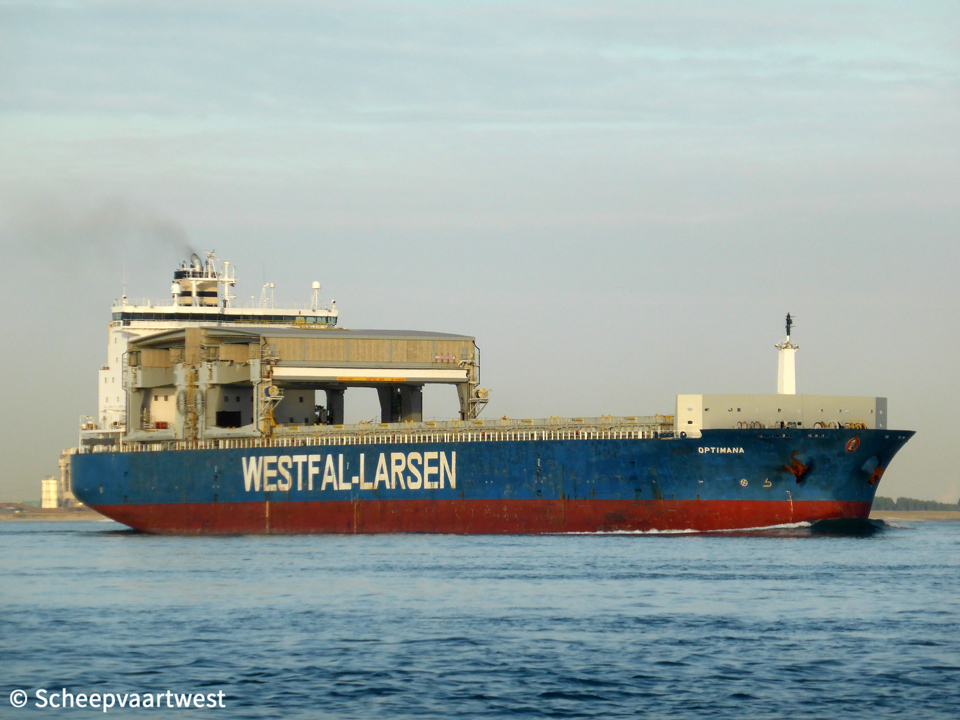

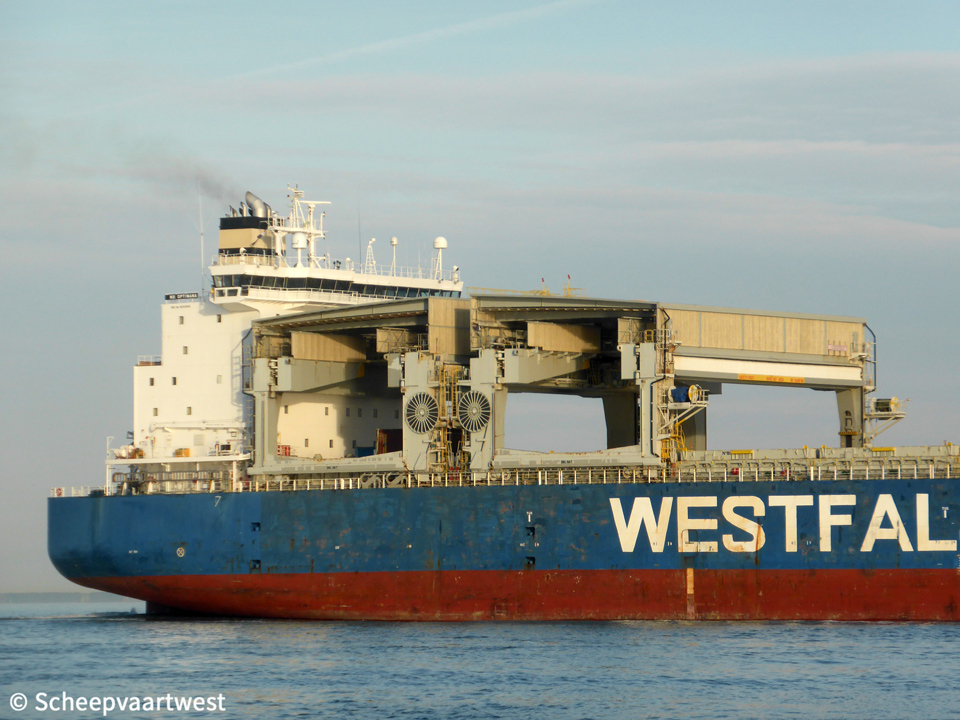

Westerschelde 25 June 2015

Name

OPTIMANA

Previous names

2003 - 01/2009 Star Optimana

Type

Open hatch dry general cargo ship / Container ship

IMO-number

9253856

Call sign

MAFM8

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

Previous flags

2003 - 2016 Republic of Singapore, Singapore City - call sing: 9VAR2

GT

38.910 t

DWT

50.683 t

NT

15.862 t

Number of 20ft containers

On hatch cover: 858

In hold: 1.670

Total: 2.528

Length

212,50 m overall

202,50 m between perpendiculars

Breadth

32,31 m extreme

32,26 m moulded

Draught

Max: 12,30 m

Depth

19,00 m

Speed

Max: 16,4 knots

Built

2003

02/10/2016 Lengthened

Keel laid

22/03/2003

Launch date

10/08/2010

Date of completion

28/10/2003

Builder

Oshima Shipbuilding Co., Ltd.
Saikai
Japan

Yard number

10331

Hull material

Steel

Bulkheads

Transverse: 14

Main engine

1x Kawasaki-MAN B&W 6S60MC - 2 stroke 6 cylinder combustion engine 11.518 kW / 15.660 bhp at 105 rpm

Manufacturer: Kawasaki Heavy Industries Co., Ltd. (B&W), Kobe - japan

Propellers

1x mono-block propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary boiler, composite GCS-22ST

Manufacturer: Aalborg Industries A/S

Generators

2x MAN B&W 6L28/32H main diesel generatorsets

1x MAN B&W 5L28/32H main diesel generatorsets

Emergency generator

1x Deutz BF 6L 913 diesel generatorset

Number of holds

12

Cargo hold capacity

Hold 1: 4.852 m³ / 171.347 ft³

Hold 2: 6.332 m³ / 233.613 ft³

Hold 3: 6.498 m³ / 229.228 ft³

Hold 4: 6.498 m³ / 229.228 ft³

Hold 5: 6.498 m³ / 229.228 ft³

Hold 6: 6.498 m³ / 229.228 ft³

Hold 7: 6.498 m³ / 229.228 ft³

Hold 8: 6.498 m³ / 229.228 ft³

Hold 9: 6.498 m³ / 229.228 ft³

Hold 10: 6.498 m³ / 229.228 ft³
Hold 11: 6.014 m² / 212.383 ft³

Hold 12: 2.703 m³ / 95.456 ft³

Total: 71.885 m³ / 2.536.623 ft³

Tank capacities

Ballast: 17.627,1 m³

Anchor equipment

Length: 660,00 m
Diameter: 78 mm

Cargo gear

2x Travelling gantry cranes with full weather protection - SWL 68,0 t

Manager

Westfal-Larsen Management AS
Fabrikkgaten 6
5059 Bergen
Norway

Technical manager

Zeaborn Ship Management (Singapore) Pte. Ltd.
1 Maritime Square #11-03
HarbourFront Centre
Singapore 099253
Republic of Singapore

Commerical manager

Saga Welco AS

Tenvikveien 373-375
3140 Nøtterøy
Norway

Registered owner

Masterbulk Pte Ltd.
Republic of Singapore

Latest data adjustment

22 July 2019
