Gent 10 May 2014 |
|
Name |

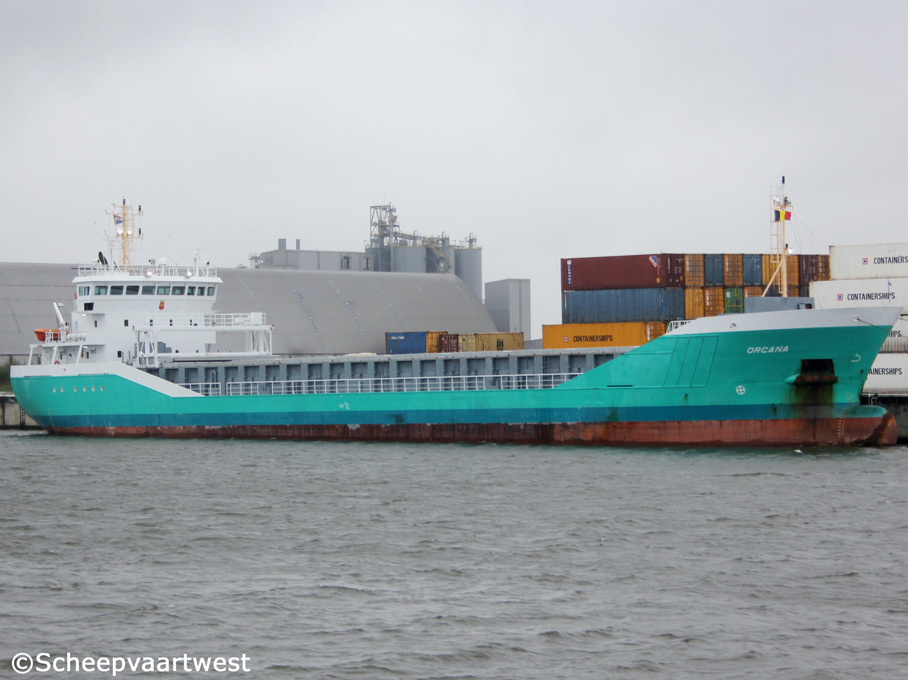

ORCANA |
|
Type |
Multi-purpose General cargo ship - heavy cargo - Strength bottom |
|
IMO-number |
9353711 |
|
Call sign |
PHHP |
|
Flag |
The Netherlands |
|
Port of registry |
Staveren |
|
GT |
2.999 t |
|
DWT |
Summer: 5.063 t Winter: 4.914 t |
|
NT |
1.639 t |
|
Number of 20ft containers |
138 |
|
Length |
89,99 m overall 84,99 m between perpendiculars |
|
Breadth |
14,50 m moulded |
|
Draught |
Summer: 6,18 m |
|
Air draft |
Max.: 22,00 m |
|
Freeboard |
780 mm |
|
Depth |
7,15 m moulded |
|
Speed |
12,5 knots |
|
Built |
2006 |
|
Launch date |
20/10/2006 |
|
Date of completion |
08/12/2006 |
|
Builder |
Scheepswerf & Machinefabriek Barkmeijer Stroobos B.V. Stroobos The Netherlands |
|
Yard number |
314 |
|
Hull material |
Steel |
|
Movable bulkhead |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.800 kW / 2.446 hp at 750 rpm Built: 2006 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Electric installations |
Power voltage: 400 V Frequency: 50 Hz |
|
Shaft generator |
1x 400 kVA - 320 kW |
|
Generators |
2x Diesel generatorsets each 210 kVA - 168 kW - 245 hp |
|
Number of holds |
1 |
|
Hold capacity |
Grain & bale: 209.601 ft³ / 5.920 m³ |
|
Cargo Hatchways |
1 Dimension: 11,50 x 62,55 m |
|
Hatch type |
Pontoon |
|
Max. permitted loads |
Tank top: 15 t/m² Hatch covers: 1,75 t/m² |
|
Ventilation |
6x Air changes per hour |
|
Fuel capacity |
150,52 m³ |
|
Manager |
Thorco Shipmanagement B.V. Winschoten The Netherlands |
|
Previous manager |
2006 - 2017 Flinter Shipping B.V., 2993 LV Barendrecht - The Netherlands |
|
Registered owner |
Flinter Orcana B.V., Staveren Staveren The Netherlands |
|
Previous owners |
2006 - 2013 Scheepvaartbedrijf de Haan (Simon de Haan), Staveren - The Netherlands 2013 - 2017 Flinter Orcana II B.V., Staveren - The Netherlands |
|
Renamed |
12/2020 Celtic Fortune United kingdom, Cardiff - Call sing: MIMX2 Manager & Owner: Charles M. Willie & Co. (Shipping) Ltd., Cardiff - United Kingdom |
|
Latest data adjustment |
13 February 2021 |
