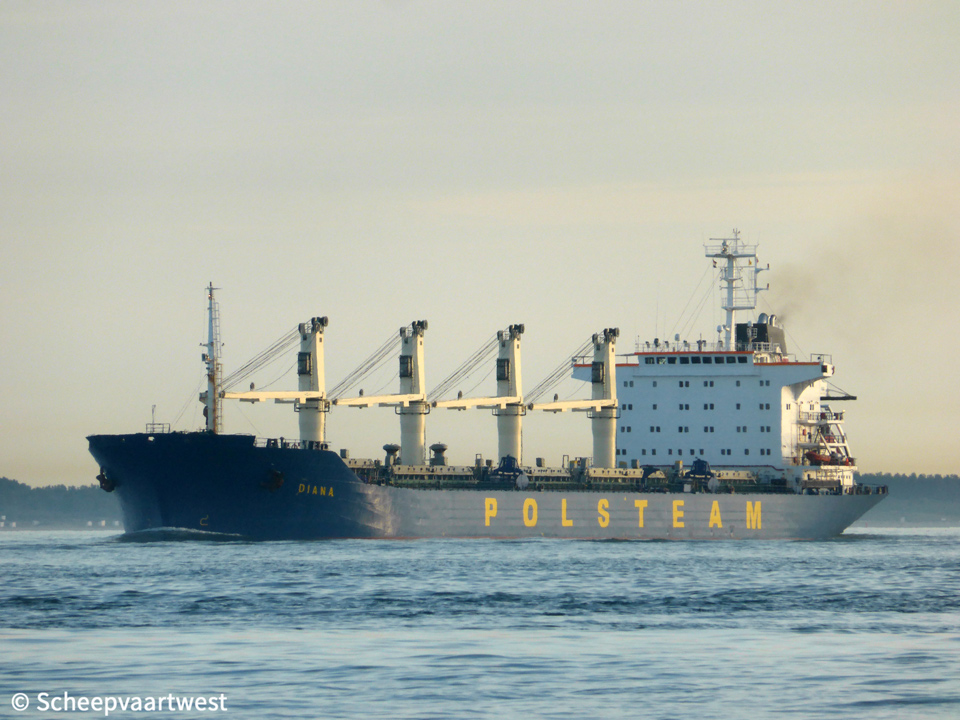

Diana 01

Westerschelde 25 June 2015

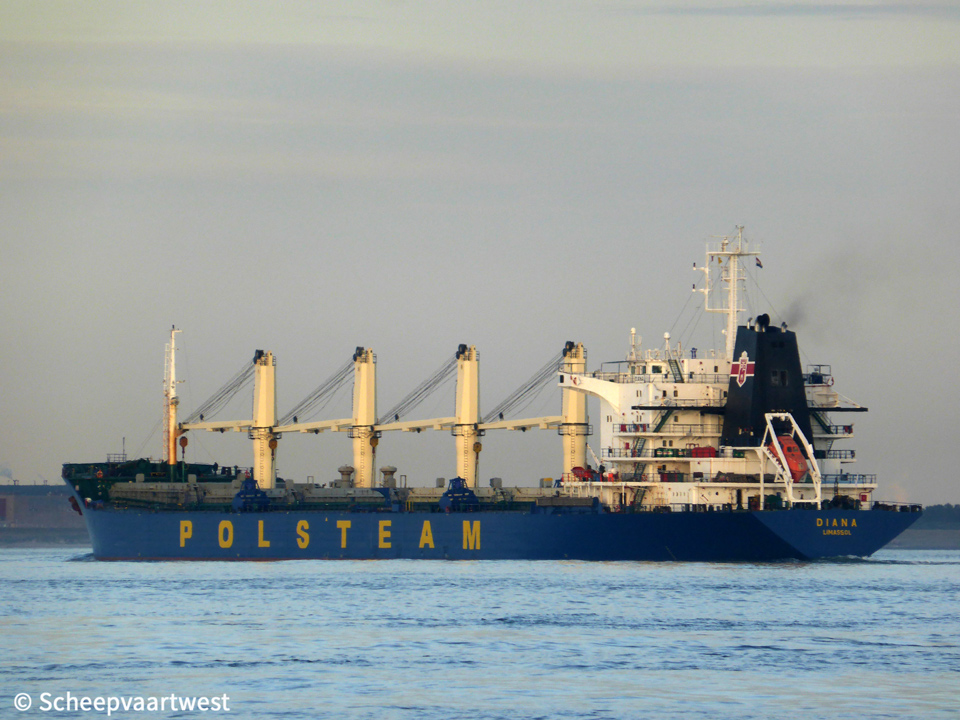

Diana 02
Westerschelde 25/06/15



Name

DIANA

Type

Bulk carrier - Handymax

IMO-number

9133769

Call sign

P3PY7

Flag

Cyprus

Port of registry

Limassol

GT

25.206 t

DWT

Summer: 41.180 t

Length

186,25 m overall

Breadth

30,00 m

Draught

9,80 m

Depth

11,46 m

Speed

Service: 14,3 knots

Max: 16,0 knots

Built

1997

Keel laid

08/10/1996

Date of completion

21/07/1997

Builder

Bulyard Shipbuilding Industry
Varna

Bulgaria

Yard number

507

Hull material

Shipbuilding steel (standard)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN-B&W 6S50MC-C Mk 7 - 2 stroke 6 cylinder combustion engine 8.338 kW / 11.336 bhp

Manufacturer: Bryansk Engineering Work

Propellers

1x Solid fixed pitch propeller (keyless) - aft at 117 rpm

Boilers

1x Steam boiler, oil fired - 7,0 bar
Heating surface 67,3 m²

1x Steam boiler, exhaust gas heated - 7,0 bar

Heating surface: 304,0 m²

Build: 2007

Manufacturer: KMM AD, YoM

Electric installations

1x Plant 400 V - 750 kVA
1x Plant 400 V - 750 kVA
1x Plant 400 V - 750 kVA
1x Plant 400 V - 159 kVA

Generators

3x Main diesel generatorset each 750 kVA

Emergency generator

1x Main diesel generatorset 159 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 32,0 bar
1x Receiver 2.000 litres - 32,0 bar
1x Receiver 205 litres - 32,0 bar
1x Receiver 150 litres - 29,4 bar

Number of holds

5

Cargo hold capacity

1x 9.721 m³
1x 10.858 m³
1x 10.836 m³
1x 10.895 m³
1x 10.737 m³

Grain: 52.598 m³

Bale: 51.617 m³

Number of hatches

5

1x 9,70 x 15,30 m

4x 19,80 x 15,30 m

Tank capacities

Ballast: 25.643 t

Fuel: 1.983 t

Anchor equipment

3x Anchors weight each 10.500 kg
Chain Length: 660,00 m

Cargo gear

4x Cranes - SWL 30,0 t each

Crew size

28

Manager

Polska Zegluga Morska PP

Operator

Polsteam Polska Żegluga Morska
Szczecin
Poland

Owner

Polsteam Oceantramp Ltd.
Poland

Registered owner

Diana Marine Ltd.
Cyprus

Renamed

12/2016 Balkar Trust
Republic of Panama, Panama City - Call sign: 3FXST

Manager: Pacship Pte Ltd.

Owner: Ocean Trust Marshall Ltd.

Scrapped

21/03/18 Beached at Gadani - Pakistan

Latest data adjustment

21 July 2019
