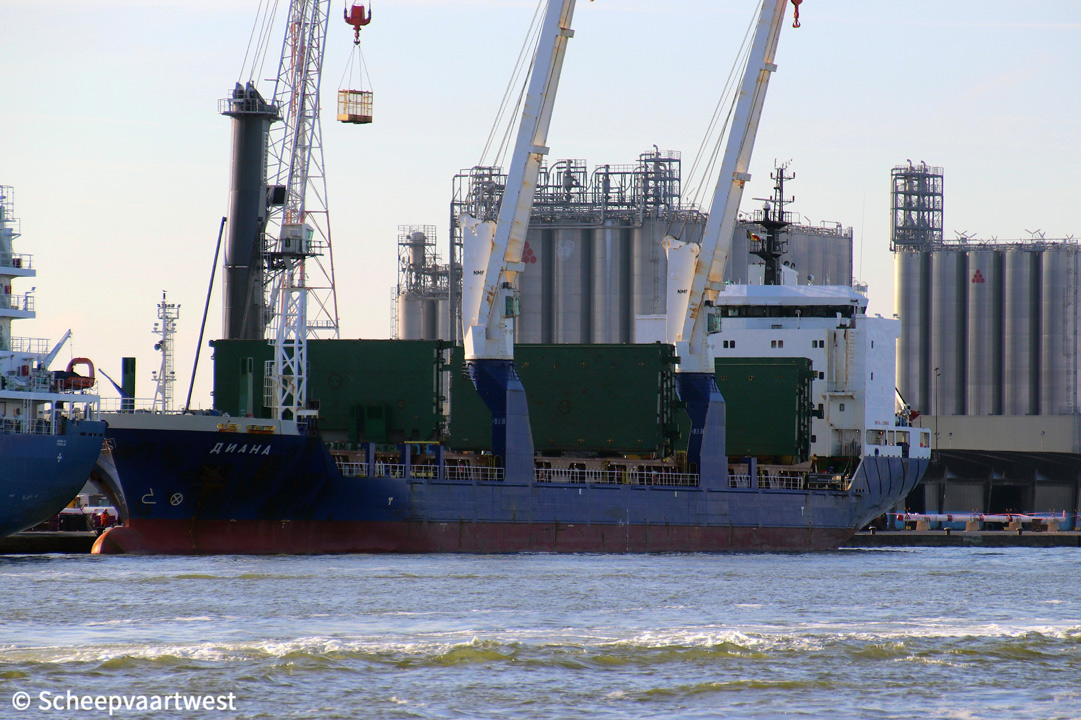

Diana IMO 9358058 01

Antwerpen 16 January 2020



Name

DIANA

Russian name

Диана

Previous names

2007 - 03/2011 Beluga Function

03/2011 - 2017 Steinwall

2017 - 2019 Gallia

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9358058

Call sign

UBJT2

Flag

Russian Federation

Port of registry

Bolshoy Port Of St. Petersburg

Previous flags

Liberia, Monrovia - Call sign: A8MA4

Antigua & Barbuda, St. John’s - Call sign: V2HB3

GT

9.611 t registered

DWT

Summer: 12.791 t

NT

4.260 t registered

Number of 20ft containers

On deck: 331

Under deck: 334

Total: 665

Length

138,07 m overall

130,00 m between perpendiculars

Breadth

21,00 m

Draught

Max: 8,00 m

Freeboard

3.018 mm

Depth

11,00 m

Speed

Max: 15,0 knots

Built

2007

Keel laid

27/09/2005

Date of completion

09/04/2007

Builder

Jiangzhou Union Shipbuilding Co., Ltd.

China

Yard number

JU002

Hull material

Steel

Hull type

Single hull

Watertight compartment

6

Main engine

1x MaK 6M43 - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.337 hp at 500 rpm

Manufacturer: Caterpilllar Motoren GmbH & Co. KG

Propellers

1x Screw propeller controllable pitch - aft at 132 rpm

Boilers

1x CHR 88,60 m² - 10,0 bar

1x CHO 44,84 m² - 13,0 bar

Shaft generator

750 kW

Generators

3x Main diesel generatorsets each 493 kVA - 394 kW - 602 hp

3x 400/230 Volt 50 Hz

Emergency generator

1x Diesel generatorset 124 kVA - 99 kW - 149 hp

Bow thruster

500 kW

Number of cargo holds

3

Hold 1: 18,75 x 15,02 m aft to 10,06 m forward

TD position (5,40 m)

Hold 2: 42,00 x 17,50 m

TD positions (3,25 m/6,00 m/7,40 m)

Hold 3: 25,50 x 17,50 m

TD position (5,59 m)

Total Capacity of holds

Bale: 15.953 m³ / 56,.340 ft³

Number of hatches

3

Max permitted loads

Tanktop: 16,0 t/m²

Tweed deck/hold: 4,0 t/m

Hatch covers 1,75 t/m²

Tank capacities

Fuel IFO: 948 m³

Fuel MDO: 150 m³

Freshwater: 141 m³

Ballast: 5.000 m³

Cargo gear

2x NMF deck cranes - SWL 120 t each, located port side

Combinable to 240 t SWL

Outreach SWL: 120 t/16,00 m; 95 t/19,00 m; 75 t/24,00 m; 55 t/33,00 m

Registered owner

Transflot Ltd.

office 715, 5АХ Mezhevoy Kanal

St. Petersburg, 198035

Russia

Latest data adjustment

02 July 2020
