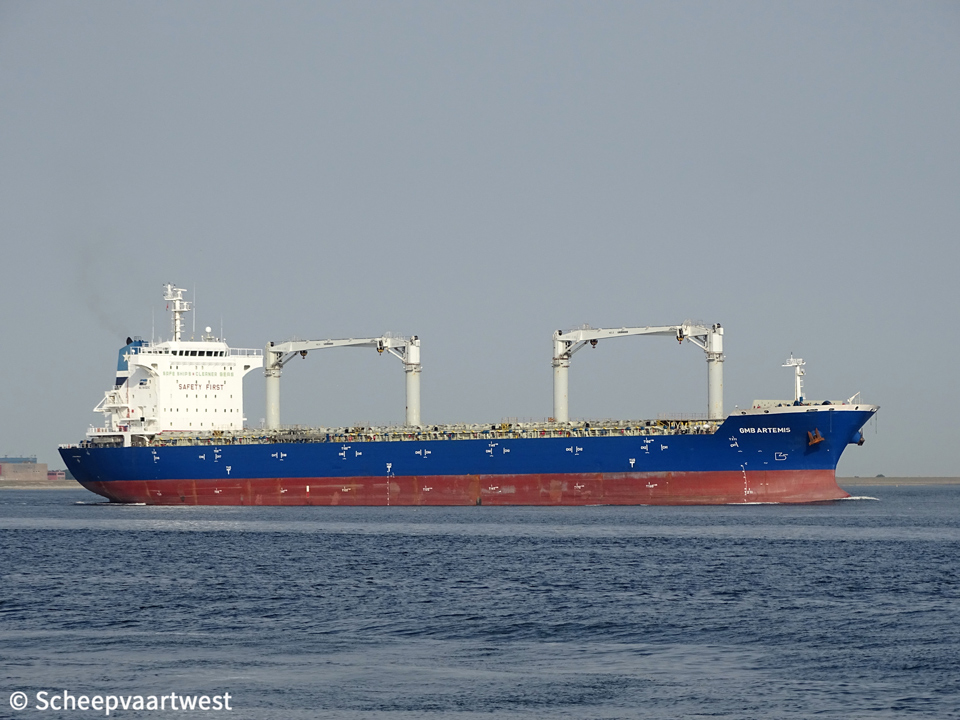

GMB Artemis 01

Westerschelde 07 July 2018



Name

GMB ARTEMIS

Previous names

2009 - 12/2009 Alcmene

12/2009 - 09/2010 Aphrodite

09/2010 - 01/2011 Botany Sea

01/2011 - 12/2011 Aphrodite

12/2011 - 04/2018 Salta

Type

General Cargo Ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9419242

Call sign

A8WC6

Flag

Liberia

Port of registry

Monrovia

GT

35.240 t

DWT

Summer: 52.998,4 t

NT

16.425 t

Number of 20ft containers

In hold: 1.298

On deck: 435

Total: 2.033

Number of 40ft containers

300

Length

196,21 m overall

186,80 m between perpendiculars

188,36 m registered

Breadth

32,25 m moulded

32,31 m extreme

Draught

Max: 13,25 m

Depth

19,50 m moulded

Speed

15,0 knots

Built

2009

Keel laid

28/04/2008

Launch date

11/05/2009

Date of completion

18/12/2009

Builder

Zhejiang Shipping Group Zhoushan Wuzhou Ship Repairing & Building Co., Ltd.
59, Wukuishan Dinghai District
Zhoushan, Zhejiang
People's Republic of China

Yard number

WZ0050603

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

12

Continuous decks

1

Main engine

1x MAN-B&W 7S50MC-C Mk7 - 2 stoke 7 cylinder 500 x 2.000 mm combustion engine 11.060 kW at 127,0 rpm

Year of manufacture: 2008

Manufacturer: STX Engine Co., Ltd.
36, Gongdanro474-gil Sungsan-gu
Changwon, Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 127,0 rpm

Diameter: 5.800 mm, 4 blades

Boilers

1x Steam boiler, oil fired - 8,0 bar

Heating surface: 13,35 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 208,0 m²

Year of manufacture: 2008

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
Qingdao, Shandong
People's Republic of China

Electric installations

3x Plants each 450 V - 1.081 kVA

1x Plant 450 V - 150 kVA

2x Plants each 24 V - 117 Ah

2x Plants each 24 V - 160 Ah

2x Plants each 24 V - 180 Ah

2x Plants each 24 V - 200 Ah

Generators

3x Main diesel generatorsets each 1.081 kVA

Emergency generator

1x Diesel generatorset 120 kW / 150 kVA at 1.800 rpm

Batteries

2x Batteries for UPS navigation each 200 Ah

2x Batteries for start emergency engine each 180 Ah

2x Batteries for automation each 160 Ah

2x Batteries for UPS radio each 117 Ah

Compressed air receivers

2x Receivers each 4.500 litres - 30,0 bar

1x Receiver 320 litres - 30,0 bar

1x Receiver 100 litres - 11,0 bar

Number of holds

Hold 1: dim. 14,28 x 16,18 x 9,96 m

Hold 2-7: dim. 16,80 x 27,50 x 19,50 m

Hold 8: dim. 14,28 x 27,50 x 19,50 m

Cargo hold capacity

Bales/Grain: 64.231,5 m³

Number of hatches

3

1x Hatch welded steel construction / folding type TTS

hydraulically operated "trans-folding" hatch cover 14,64 x 16,60 m

1x Hatch welded steel construction / TTS electrically &

hydraulically operated "piggy-back" hatch covers 17,07 x

27,92 m

1x Hatch welded steel construction / folding type TTS

hydraulically operated "trans-folding" hatch cover (14,64 x 27,92 m

Tank capacities

Heavy fuel oil: 2.153,10 m³

Marine diesel oil: 124 m³

Lub oil: 136,69 m³

Ballast water: 23.000 m³

Fresh water: 279 m³

Anchor equipment

3x Anchors weight each 10.500 kg

Chain length: 660,00 m

Diameter: 78 mm

Cargo gear

4x Single deck cranes - SWL 45,0 t each

Accommodation

For a crew of 25 persons with heating, ventilation and air-conditioning

Manager

NSC Shipping GmbH & Cie. KG
Van-der-Smissen-Str. 9
22767 Hamburg
Federal Republic of Germany

Registered owner

MS "BOTANY SEA" Schifffahrtsgesellschaft mbH & Co. KG
Van-der-Smissen-Str. 3
22767 Hamburg
Federal Republic of Germany

Latest data adjustment

18 March 2019
