Westerschelde 30 March 2017 |
 |
| Westerschelde 30/03/17 |
|
Name |

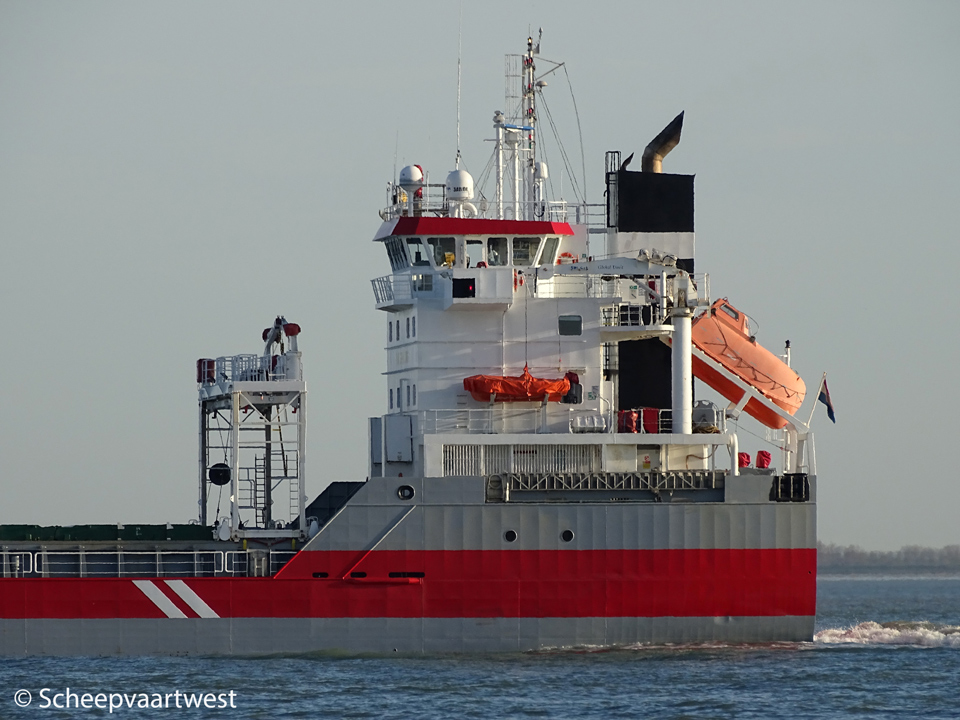

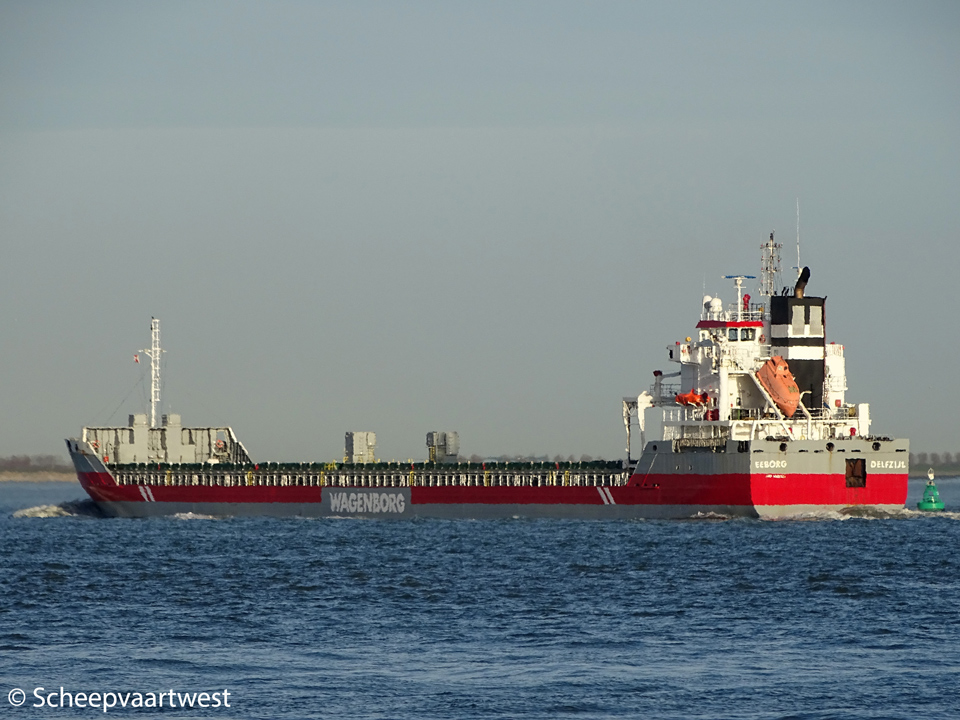

EEBORG |
|
Type |
General cargo ship / Containership / Heavycargo |
|
IMO-number |
9568328 |
|
Call sign |
PCNL |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
7.680 t |
|
DWT |
Summer: 12.000 t |
|
DWCC |
Summer: 10.900 t |
|
NT |
3.846 t |
|
Number of 20ft containers |
462 |
|
Length |
144,56 m overall 138,16 m between perpendiculars |
|
Breadth |
15,87 m moulded |
|
Draught |
Summer: 7,98 m Winter: 7,85 m |
|
Air draft |
30,34 m in ballast |
|
Freeboard |
2.862 mm |
|
Depth |
11,15 m moulded |
|
Speed |
Max: 13,7 knots |
|
Built |
2012 |
|
Launch date |
27/10/2011 |
|
Date of completion |
26/01/2012 |
|
Builder |
Royal Niestern Sander BV |
|
Yard number |
843 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L32C - 4 stroke single acting 9 cylinder 320 x 400 mm combustion engine 4.500 kW / 6.114 bhp at 750 rpm Built: 26/04/2011 Builder: Wartsila Finland Oy, Vaasa - Finland |
|
Propellers |
1x Screw propeller controllable - aft at 151 rpm 4 blades - 4.200 mm |
|
Boilers |
1x CHF 26,20 m² - 10,0 bar |
|
Shaft generator |
1x 938 kVA - 750 kW |
|
Generators |
2x Main diesel generatorsets 330 kVA - 264 kW - 380 hp |
|
Emergency generator |
1x Diesel generatorset 140 kVA - 112 kW - 198 hp |
|
Bow thruster |
1x 700 kW |
|
Number of holds |
2x Both holds are open hatch, double skinned, fully box Hold 1: 48,10 x 13,20 x 11,42 m Hold 2: 54,76 x 13,20 x 11,42 m |
|
Total capacity of holds |
Grain / bale: 14.828 m³ / 523.237 ft³ |
|
Hold ventilation |
Holds are equipped with electrical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with dehumidifier system |
|
Number of hatches |
2 Hatch 1: 48,10 x 13,20 m Hatch 2: 54,76 x 13,20 m |
|
Type hatch over |
Coops & Nieborg pontoon hatches |
|
Tween decks |
4x Tweendecks, consisting of loose tweendeck pontoons Tweendecks can be used as vertical bulkheads |
|
Max permitted loads |
Tanktop: 15,0 t/m³ Tweendecks: 3,5 t/m² Weatherdeck: 1,75 t/m² |
|
Tank capacities |
HFO: 876 m³ MGO: 86 m³ Water ballast: 4.450 m³ Fresh water: 56 m³ |
|
Manager |
Wagenborg Shipping B.V. |
|
Registered owner |
Scheepvaartonderneming Eeborg B.V. |
|
Sister ships |
Elbeborg - IMO 9568249 |
|
Latest data adjustment |
29 January 2019 |
