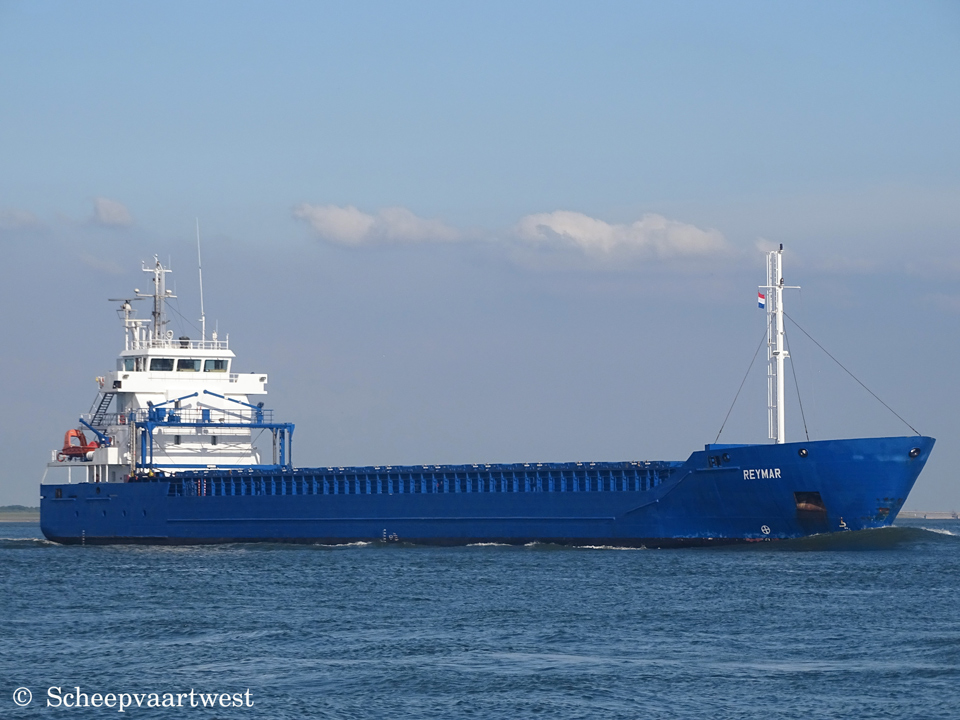

Reymar 01

Westerschelde 31 May 2017



Name

REYMAR

Previous names

2011 Launch as: Groma Domsum

2011 - 2016 Emslake

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

Gearless box single decker

IMO-number

9552032

Call sign

5BNU4

Flag

Cyprus

Port of registry

Limassol

Previous flags

2011 - 2016 Antigua & Barbuda, St. John’s - Call sign: V2FL4

GT

3.500 t

DWT

Summer: 5.235,3 t

DWCC

Summer: 4.900 t

Winter: 4.800 t

NT

1.382 t

Number of 20ft containers

In hold; 108

On deck: 80

Total: 188

Length

99,37 m

92,49 m between perpendiculars

Breadth

13,35 m

Draught

Max: 6,15 m

Air draft

24,50 m

Depth

9,11 m moulded

Speed

Max: 12,0 knots

Service: 10,0 knots

Built

2011

Keel laid

18/12/2008

Launch date

22/01/2011

Date of completion

31/03/2011

Builder

Western Marine Shipyard Ltd.
Chittagong
Bangladesh

Yard number

928/03

Hull material

Steel

Movable bulkheads

2 pcs./4 pontoons

Main engine

1x MaK 6M25C - 6 cylinder combustion engine 2.000 kW / 2.719 bhp

Propellers

1x Controllable pitch propeller

Boilers

1x 1x Auxiliary boiler, oil/gas fired (Central heating boiler) type Compact A 200

Generators

2x Sisu 74.475 CTAG-4V main diesel generatorsets each 172 kW

Emergency generator

1x SISU 49.548DTG diesel generatorset

Bow thruster

1x 280 kW

Number of holds

1

61,80 x 11,20 x 9,60 m

Cargo hold capacity

6.644,7 m³. / 234.655 ft³

Number of hatches

1

61,80 x 11,20 m

Hatch type

Pontoon hatch covers

Max permitted loads

Hatch covers: 1,75 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Ballast: 1.911,8 m³

Anchor equipment

Length: 467,50 m

Diameter: 36 mm

Manager

GoTa Ship Management AB
Norra Ågatan 10b
416 64 Göteborg
Sweden

Registered owner

AtoB@C Shipping AB
”Terminal Fyrkajen”
Hamntorget 2
271 39 Ystad
Sweden

Latest data adjustment

26 December 2018
