Westerschelde 08 November 2017 |
 |
 |
 |
 |
 |
||||
| Westerschelde 08/11/17 | Westerschelde 22/07/19 | Westerschelde 17/02/20 | Westerschelde 17/02/20 | Westerschelde 17/02/20 |
|
Name |

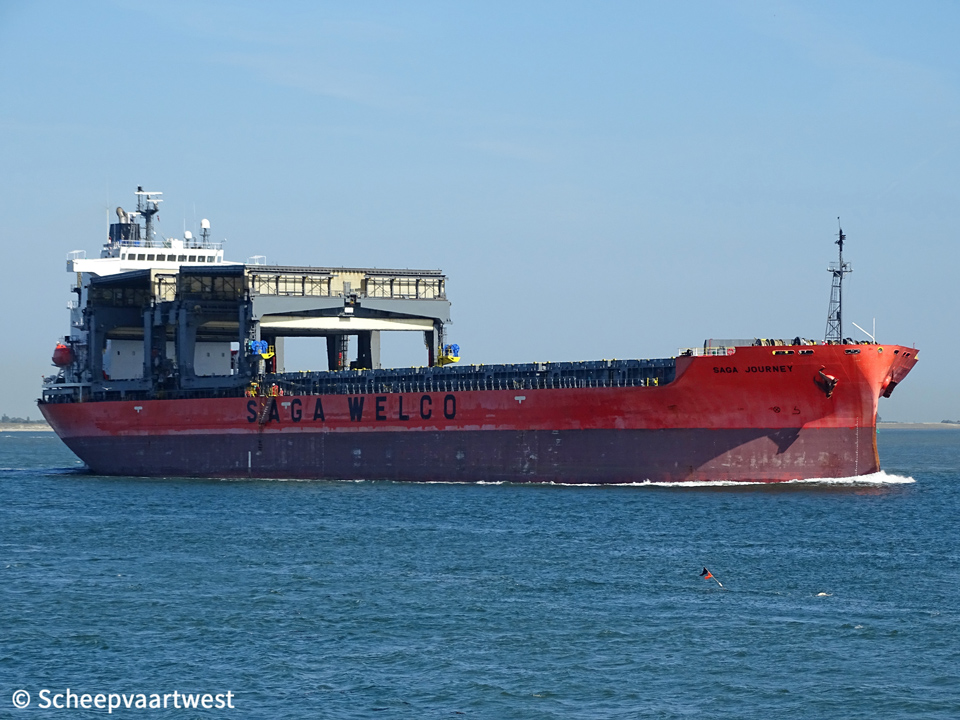

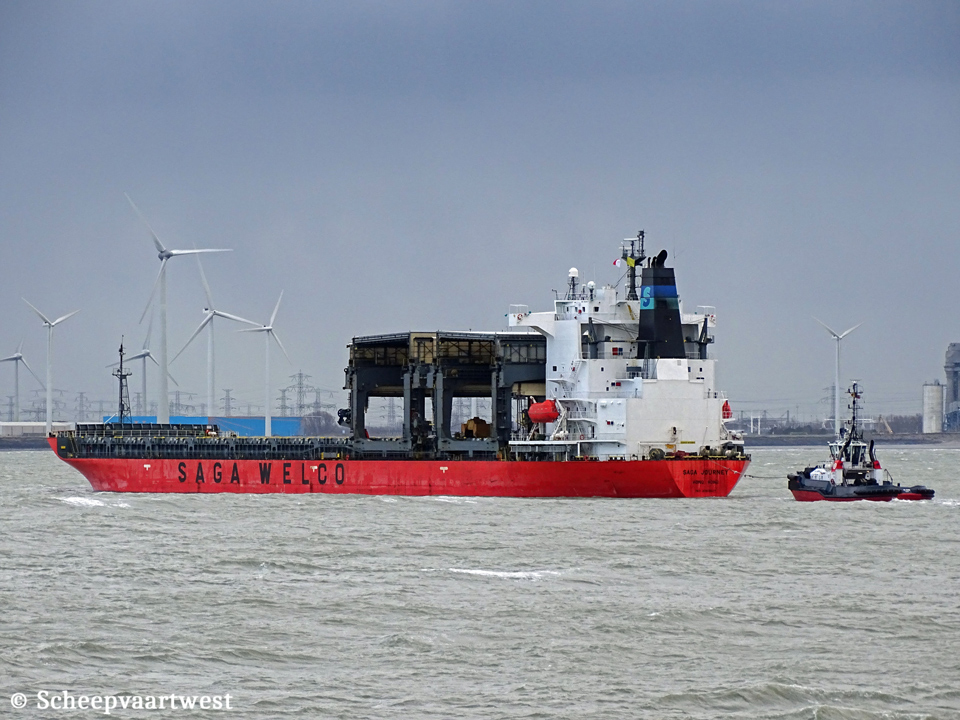

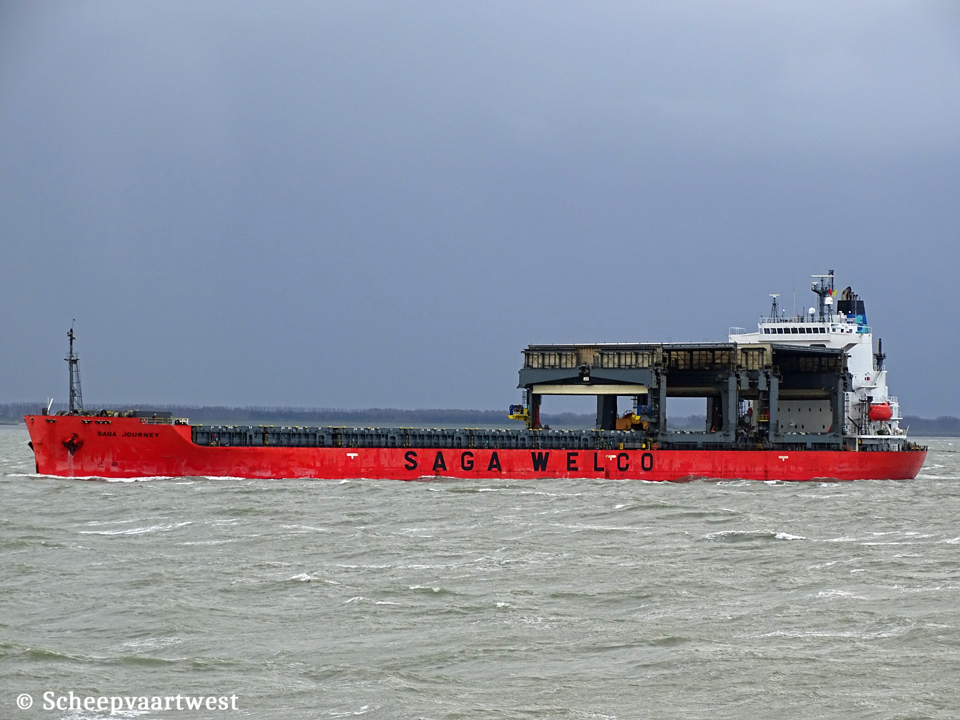

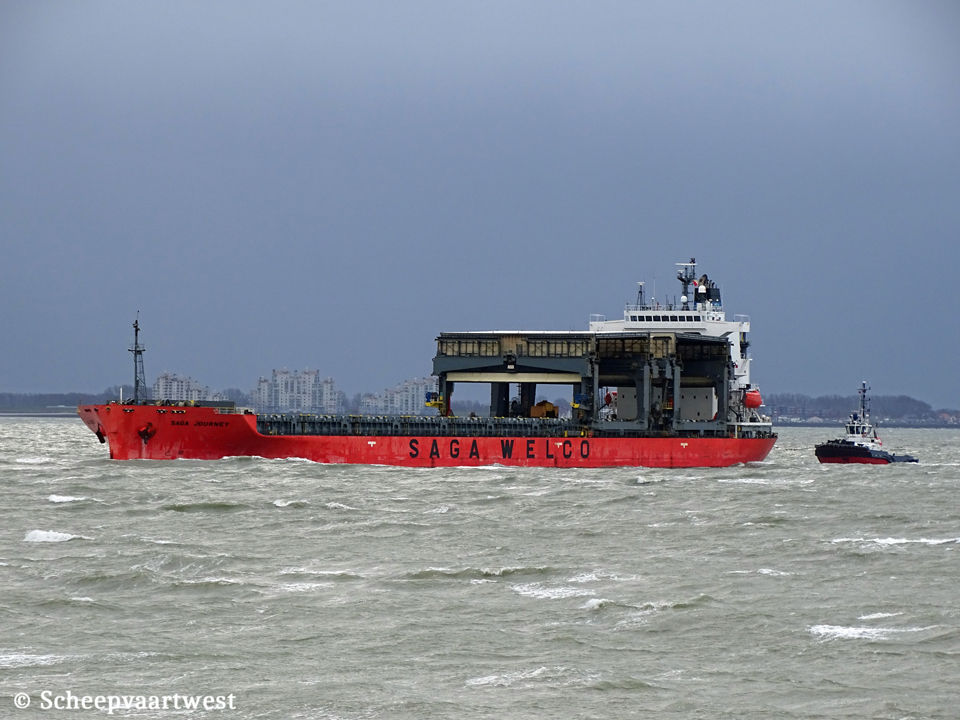

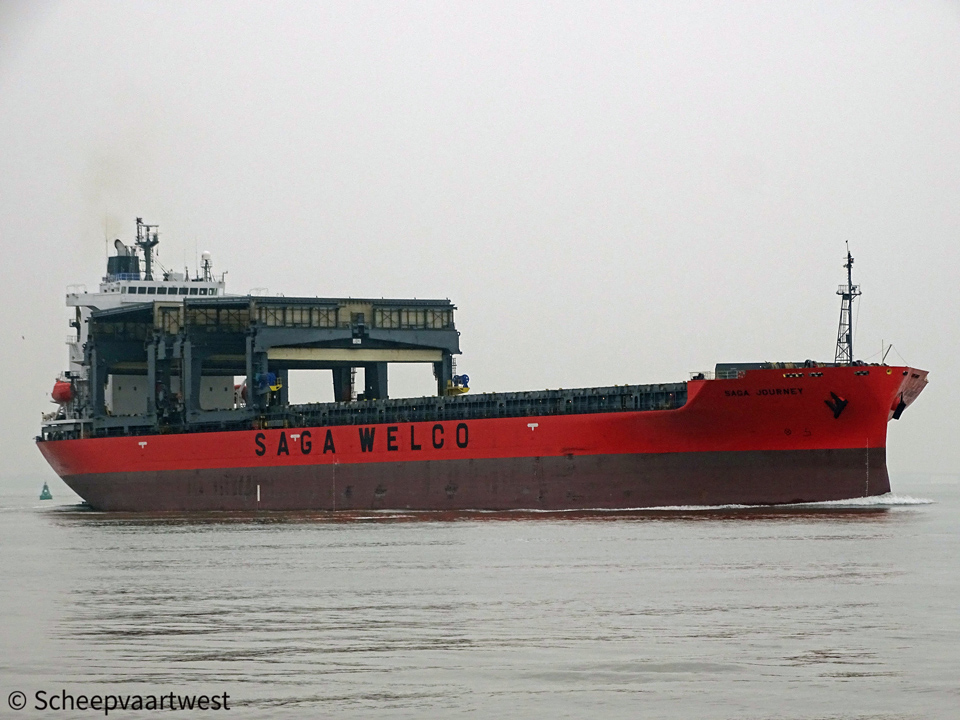

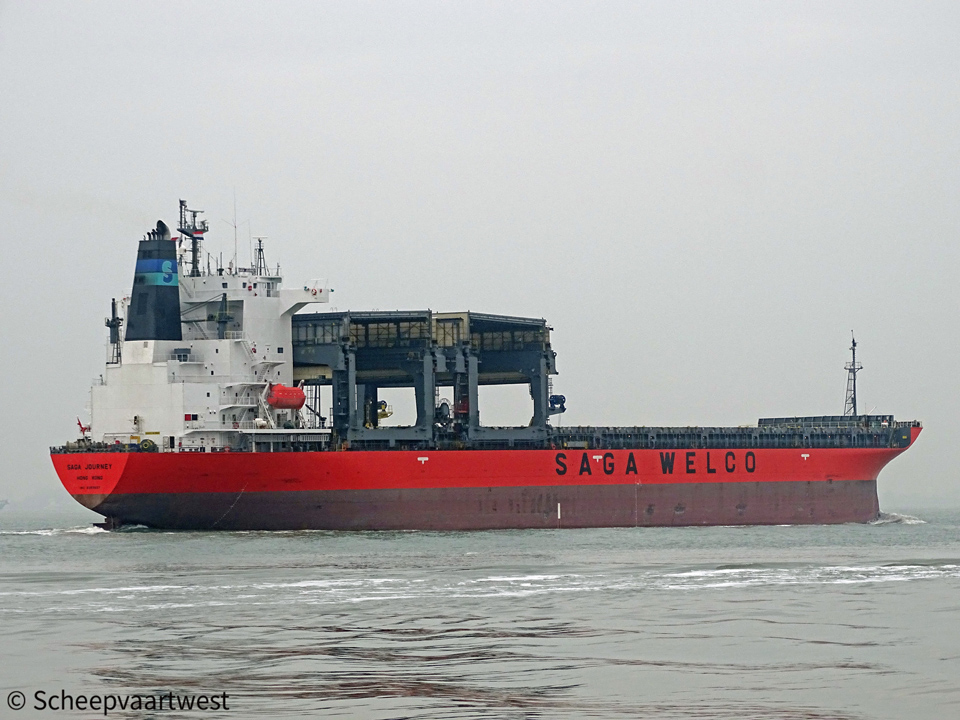

SAGA JOURNEY |
|
Type |
General cargo ship with travelling gantry cranes with weather protection |
|
IMO-number |
9363637 |
|
Call sign |
VRCY8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
29.758 t |
|
DWT |
Summer: 46.652 t |
|
NT |
14.440 t |
|
Number of 20ft containers |
On deck: 400 In hold: 360 Total: 760 |
|
Length |
199,20 m overall 190,00 m between perpendiculars |
|
Breadth |
30,58 m extreme |
|
Draught |
Max: 11,82 m |
|
Depth |
16,40 m |
|
Speed |
15,0 knots |
|
Built |
2007 |
|
Keel laid |
21/09/2004 |
|
Launch date |
25/05/2007 |
|
Date of completion |
11/07/2007 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10474 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 13 Longitudinal: 2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 7RTA52U - 7 cylinder combustion engine 10.920 kW / 14.847 hp at 135 rpm Builder: Wärtsilä NSD Switzerland Ltd. |
|
Propellers |
1x Fixed pitch propeller Builder: Nakashima Propeller Co., Ltd. |
|
Boilers |
1w Auxiliary boiler, composite Builder: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Daihatsu 6DK-20 main diesel generatorsets Builder: Daihatsu Diesel Mfg. Co., Ltd. |
|
Emergency generator |
1x Mitsui BF6L913 diesel generatorset |
|
Number of holds |
10 |
|
Cargo hold capacity |
1x 3.607 m³ / 127.380 ft³ 2x 5.099 m³ / 180.069 ft³ 3x 5.659 m³ / 199.846 ft³ 4x 5.659 m³ / 199.846 ft³ 5x 5.659 m³ / 199.846 ft³ 6x 5.659 m³ / 199.846 ft³ 7x 5.659 m³ / 199.846 ft³ 8x 5.659 m³ / 199.846 ft³ 9x 5.659 m³ / 199.846 ft³ 10x 4.913 m³ / 173.501 ft³ Total: 53.232 m³ / 1,879.872 ft³ |
|
Tank capacities |
Ballast: 16.475 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 73 mm |
|
Cargo gear |
2x Gantry Crane - SWL 40,0 t each travelling gantry cranes with weather protection |
|
Crew size |
27 |
|
Manager |
Anglo-Eastern Ship Management Ltd. 23rd Floor 248 Queen’s Road East Wan Chai Hong Kong |
|
Operator |
Saga Welco SA Tenvikveien 373-375 3140 Nøtterøy Norway |
|
Registered owner |
SAGA Shipholding Norway AS Tenvikveien 373-375 3140 Nøtterøy Norway |
|
Latest data adjustment |
11 October 2020 |
