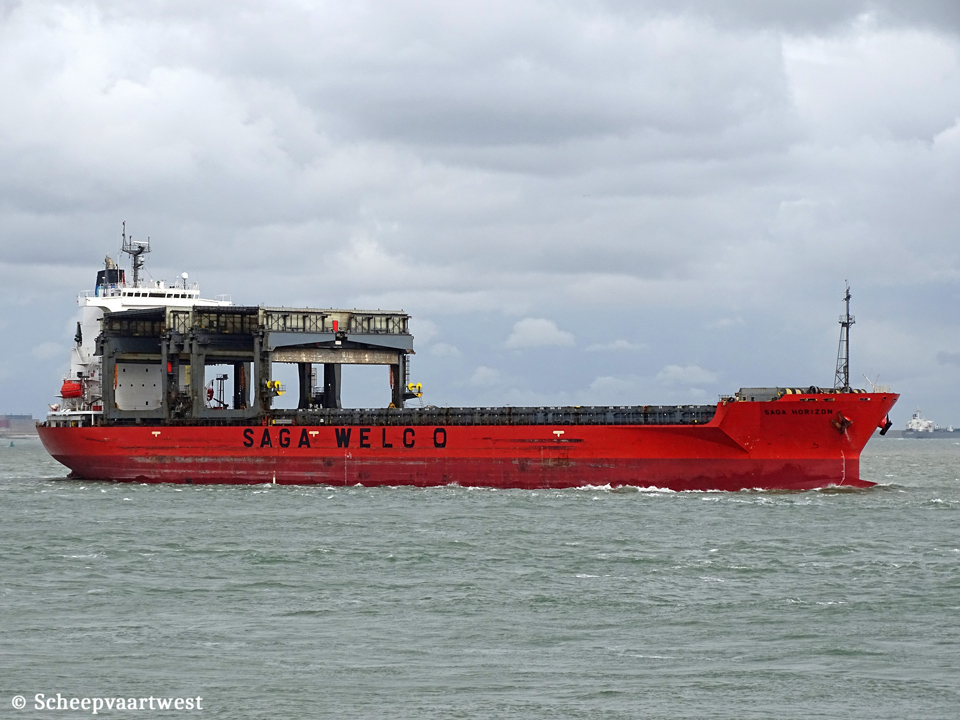

| Westerschelde 04 June 2020 |
|
Name |
SAGA HORIZON |
|
Type |
General cargo (single deck) |
|
IMO-number |
9121297 |
|
Call sign |
VRUZ9 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
29.381 t |
|
DWT |
47.016 t |
|
NT |
14.155 t |
|
Number of 20ft containers |
On deck: 560 In holds: 1.128 |
|
Length |
199,20 m overall 190,00 m between perpendiculars |
|
Breadth |
30,57 m extreme |
|
Draught |
Summer: 11,82 m |
|
Keel to mast end |
48,30 m |
|
Depth |
16,40 m |
|
Speed |
Max: 15,0 knots |
|
Built |
1995 |
|
Keel laid |
09/05/1995 |
|
Launch date |
10/08/2015 |
|
Date of completion |
21/11/2015 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Japan |
|
Yard number |
10196 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 13 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 7RTA52 - 2 stroke 7 cylinder 520 x 1.800 mm combustion engine 8.952 m³ / 12.171 hp at 126,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x Daihatsu 6DL22 main diesel generatorsets |
|
Emergency generator |
1x Mitsui BF6L913 diesel generatorset |
|
Number of holds |
10 |
|
Cargo hold capacity |
Bale: Hold 1: 3.513 m³ / 124.060 ft³ Hold 2: 4.979 m³ / 175.832 ft³ Hold 3: 5.525 m³ / 195.114 ft³ Hold 4: 5.525 m³ / 195.114 ft³ Hold 5: 5.525 m³ / 195.114 ft³ Hold 6: 5.525 m³ / 195.114 ft³ Hold 7: 5.525 m³ / 195.114 ft³ Hold 8: 5.525 m³ / 195.114 ft³ Hold 9: 5.525 m³ / 195.114 ft³ Hold 10: 4.779 m³ / 168.769 ft³ Total: 51.946 m³ / 1.834.456 ft³ |
|
Number of hatches |
10 |
|
Tank capacities |
Ballast: 16.185,5 m³ |
|
Cargo gear |
2x Travelling gantry cranes with weather protection - SWL 40,0 t each |
|
Crew size |
27 |
|
Commercial manager |
Saga Welco AS Tenvikveien 373-375 3140 Notteroy Norway |
|
ISM manager |
Anglo-Eastern Ship Management Ltd. 17th Floor, Kingston International Centre 19, Wang Chiu Road, Kowloon Bay, Kowloon Hong Kong China |
|
Registered owner |
Saga Shipholding Norway AS Tenvikveien 373-375 3140 Notteroy Norway |
|
Previous owners |
1995 - 2000 Nada Maritime Enterprise Co Ltd. 2000 - 2003 Perpetual Motion Sg Ltd |
|
Latest data adjustment |
29 June 2022 |
