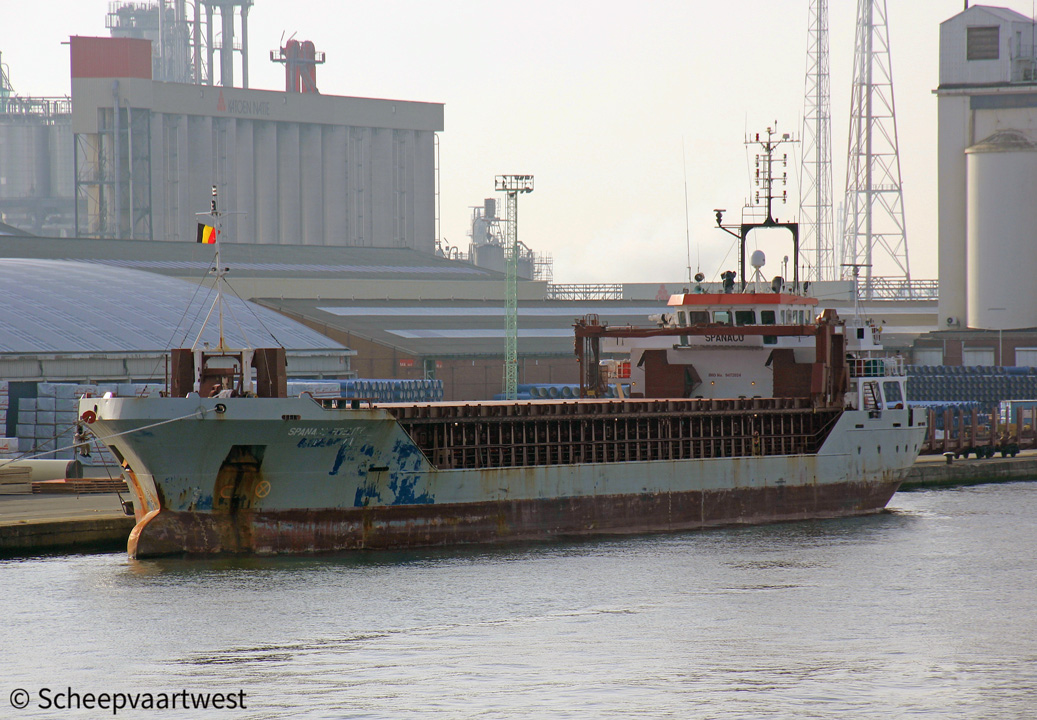

Spanaco Fidelity 01

Antwerpen 04 November 2018



Name

SPANACO FIDELITY

Previous names

2009 - 02/2014 Araldiep

02/2014 - 11/2016 Lunamar

Type

General cargo ship

IMO-number

9472024

Call sign

V2QR9

Flag

Antigua and Barbuda

Port of registry

St. John’s

Previous flags

2009 - 2016 Cyprus, Limassol - Cal sign: 5BNV2

GT

2.984 t

DWT

Summer: 4.192 t

DWCC

Summer: 3.900 t

Winter: 3.800 t

NT

1.769 t

Number of 20ft containers

126

Length

89,98 m overall

84,98 m between perpendiculars

Breadth

15,20 m

Draught

Summer: 5,10 m

Air draft

20,10 m

12,10 m masts collapsed

Depth

6,60 m moulded

Speed

12,0 knots
Max: 14,4 knots

Built

2009

Keel laid

28/02/2008

Launch date

06/02/2009

Date of completion

15/04/2009

Builder

Rongcheng Shipbuilding Industry Group
Rongcheng
China

Yard number

RC18

Hull material

Steel

Hull type

Single hull

Watertight bulkheads

5

Movable bulkheads

2x Bulkheads (2 panels each) or 4x bulkheads (one panel each) erection possible in 4 different positions

Main engine

1x Yanmar 6EY26 - 6 cylinder combustion engine 1.800 kW at 750 rpm

Propellers

1x Controllable pitch propeller

Shaft generator

1x 350 kW - 400 V, 50 Hz at 1.500 rpm

Generators

2x Main diesel generatorsets each 144 kVA - 400 V, 50 Hz at 1.500 rpm

Bow thruster

285 kW

Number of holds

1

61,50 x 12,65 x 7,99 m

Cargo hold capacity

Grain & bale:

5.975 m³ / 211.000 ft³

5.860 m³ / 208.003 ft³ with bulkheads

Hold ventilation

6x Air changes per hour

Hatches

8x Pontoons moved with gantry crane

Max permitted loads

Hatch cover: 2,2 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Fuel oil: 210 m³
Gas oil: 36 m³
Freshwater: 60 m³
Water ballast: 1.996 m³

Crew size

9

Manager

Interorient Navigation Germany

Operator

Interorient Marine Services (Germany) GmbH & Co KG
Kajen 12
20459 Hamburg
Germany

Registered owner

Spanaco Four Ltd.

Latest data adjustment

13 November 2018
