Spaarnegracht - IMO 9202558

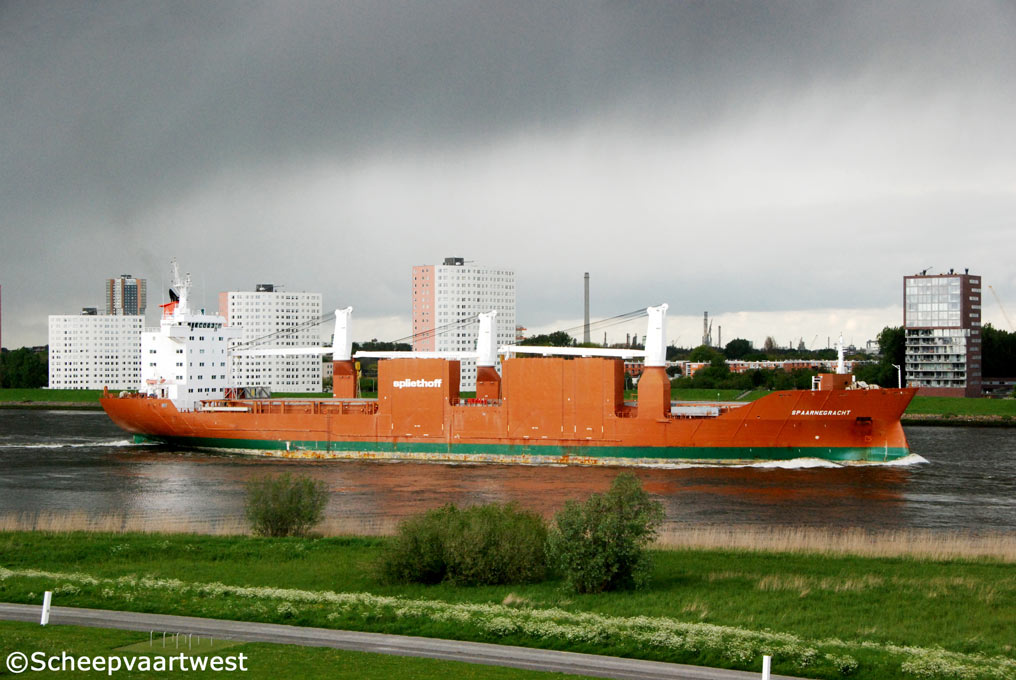

Spijkenisse 16 May 2012

Name

SPAARNEGRACHT

Type

Multi-purpose cargo ship - Lumber / containers / bulk / project cargo

IMO-number

9202558

Call sign

PDBO

Flag

The Netherlands

Port of registry

Amsterdam

GT

16.641 t

DWT

Summer: 21.402 t

NT

6.730 t

Number of 20ft containers

Hold: 478

Deck: 656

Total: 1.134

Number of 40ft containers

Hold: 219

Deck: 502

Total: 502 + 133 TEU

Reefer capacity

120 - total power 850 kW

Length

168,21 m overall

159,14 m between perpendiculars

Breadth

25,20 m moulded

Draught

Summer: 10,74 m

Depth

14,60 m

Speed

18,0 knots ballast

17,0 knots laden

Built

2000

Builder casco

Kambara Marine Development & Shipbuilding
Japan

Builder completion

Tsuneishi Shipbuilding
Fukuyama
Japan

Yard number

1174

Hull material

Steel

Movable pontoons

Removable pontoons for up to 14 compartments at TEU interval

Main engine

1x Wärtsilä/Fincantieri 6L64 - 4 stroke 6 cylinder diesel engine - 12.060 kW / 16.400 hp

Propellers

1x variable pitch propeller

Shaft generator

1x 1000 kW

Generators

3x main diesel generatorsets each 450 kW

Bow thruster

1x 850 kW / 1.155 hp

Hold capacities

Hold 0: 5.250 ft³ / 430 m³

Hold 1: 160.000 ft³ / 4.530 m³
Hold 2/3: 65.000 ft³ / 18.280 m³
Total: 840.250 ft³ / 22.780 m³

If tween deck installed 56.200 ft³ / 1.620 m³ less in hold

Hold heights

Height in hold as SID: 14,38 m
Height in lower hold as TWD: 3 heights 3,18 or 7,03 or 10,23 m
Height in tween deck as TWD: 3 heights 10,10 or 6,25 or 3,05 m

Hatches

Weather deck:

N° 0: 6,40 x 7,60 m

N° 1: 15,60 x 17,80 / 15,20 m

N° 2: 38,40 x 17,80 m

N° 3: 32,00 x 20,40 m

Steel an folding type

Tween deck:

No 1: 25,60 x 17,80 m

N° 2: 38,40 x 17,80 m

N° 3: 32,00 x 20,40 m

Consisting 16 steel pontoops

2x 6,37 x10,02 m

1x 6,37 x 15,12 m

6x 6,37 x 17,72 m

2x 3,17 x 17,72 m

4x 6,37 x 20,32 m

1x 4,20 x 17,72 m

Floor space

Tank top: 1.620 m²

Tween deck: 1.840 m²

Total: 2.400 m³

Max. load

Weather deck hatch covers: 2,0 t/m²

Tween deck hatch covers:

Hatchway 1: 7,50 t/m²

Hatchway 2: 5,50 t/m²

Hatchway 33: 5,0 t/m²

Tank top: 20,0 t/m²

Ventilation

Hold 0: 6x air-changes per hour

Hold 1: 20 air-changes per hour

Hold 2/3: 20 air-changes per hour

Tank capacities

Fuel oil: 1.635 m³

Marine gas oil: 220 m³

Ballast: 7.545 m³

Crew

15

Manager

Spliethoff´s Bevrachtingskantoor
Radarweg 36
1042 AA Amsterdam
The Netherlands

Owner

Spliethoff´s Bevrachtingskantoor
Radarweg 36
1042 AA Amsterdam
The Netherlands

Registered owner

CV Scheepvaartonderneming Houtmangracht
The Netherlands

Latest data adjustment

27 November 2014
