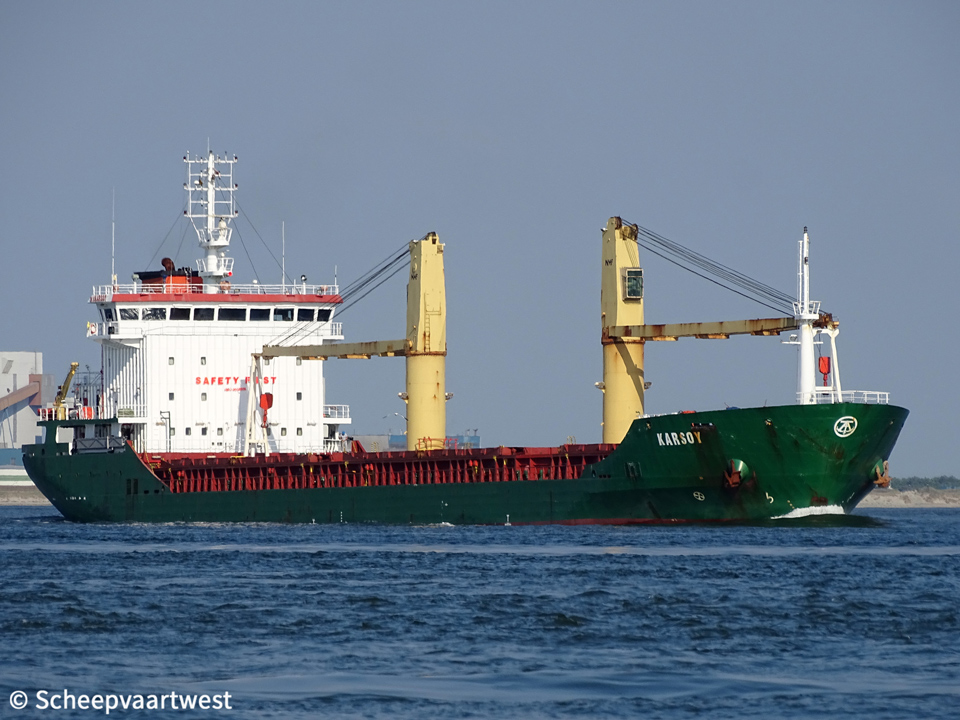

Karsoy 03

Westerschelde 18 July 2018

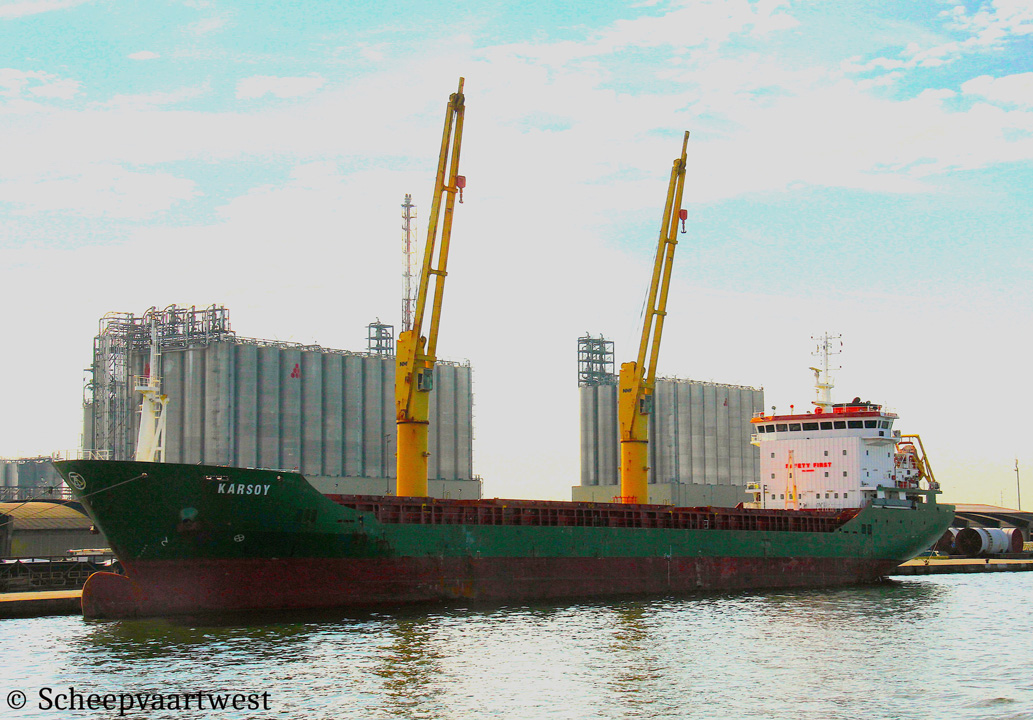

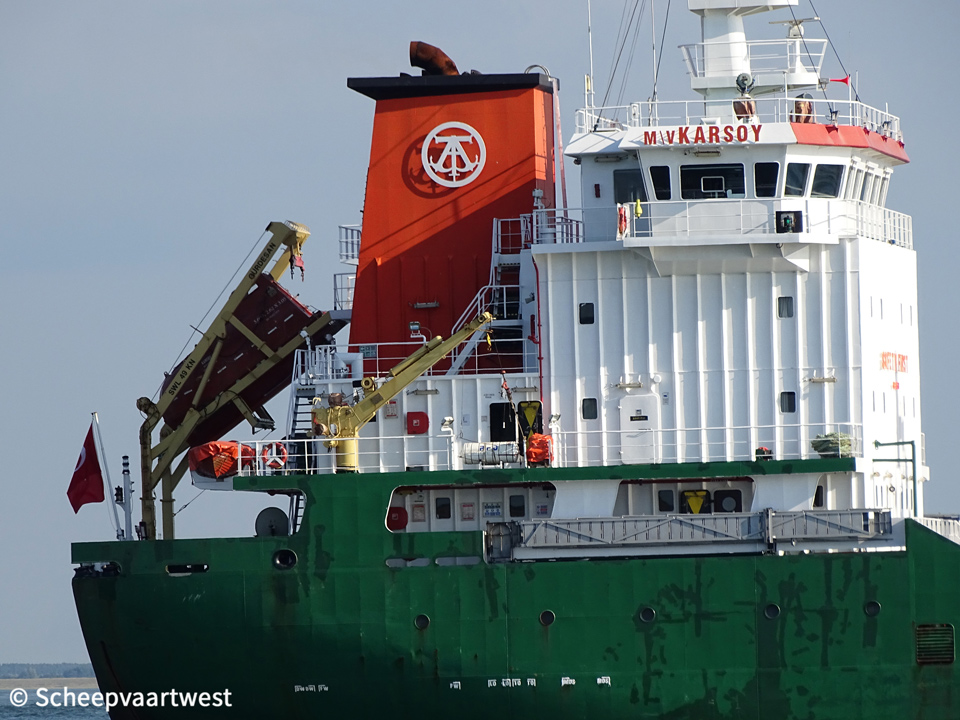

Karsoy 05   Karsoy 02   Karsoy 01
Westerschelde 18/07/18 Antwerpen 16/10/18 Antwerpen 16/10/18



Name

KARSOY

Type

General cargo ship

IMO-number

9555618

Call sign

TCXR3

Flag

Turkey

Port of registry

Istanbul

GT

7.635 t registered

DWT

Summer: 10.563 t

Winter: 10.188 t

NT

3.848 t registered

Light ship

3.763,156t

Length

132,10 m overall

123,50 m between perpendiculars

Breadth

18,40 m

Draught

Summer: 7,78 m

Winter: 7,61 m

Keel to top antenna

33,00 m

Air draft

32,00 m

Freeboard

Summer: 2.734 mm

Winter: 2.896 mm

Depth

10,50 m moulded

Speed

Service: 13,0 knots

Built

2009

Date of completion

28/12/2009

Builder

Ustaoglu Yat Gemi Sanayi Ltd. (Ustaoglu Yacht & Shipbuilding)
Karadeniz Eregli
Turkey

Yard number

96

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

1x Wärtsilä VASA 8L32 - 4 stroke 8 cylinder 320 x 400 mm combustion engine 4.000 kW / 5.436 hp at 750 rpm

Built: 08/01/2009

Builder: Wärtsilä Finland OY, Vaasa - Finland

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHR AALBORG 68,80 m² - 10;0 bar
1x CHO AALBORG 19,00 m² - 13;0 bar

Generators

2x Main diesel generatorsets each 455 kVA - 364 kW - 530 hp

1x Main diesel generatorset 312 kVA - 250 kW - 380 hp

Emergency generator

1x Diesel generatorset 124 kVA - 99 kW - 149 hp

Bow thruster

500 kW

Number of holds

3x box shape

Hold 1: 21,80 x 12,60 x 10,45 m

Hold 2: 34,05 x 15,20 x 11,05 m

Hold 3: 32,00 x 15,20 x 11,05 m

Cargo hold capacity

Grain / Bale:

Hold 1: 2.576,14 m³ / 2.447,33 m³

Hold 2: 5.496,51 m³ / 5.496,51 m³

Hold 3: 5.199,72 m³ / 5.147,72 m³

Total: 13.272,39 m³ / 13.091,58 m³

Number of hatches

3

Hatch 1; 15,00 x 12,60 m

Hatch 2; 27,20 x 15,20 m

Hatch 3: 27,20 x 15,20 m

Hatches cover type

MacGregor Folding

Main deck area

314,34 m²

Max permitted loads

Tanktop: 14,0 t/m²

Hatches: 1,75 t/m²

Pumps

2x Ballast pumps each 201 m³/h

Tank capacities

IFO 396,14 m³

MGO: 113,70 m³

Ballast: 3.975,73 m³

Cargo gear

2x NMF cranes - SWL 35,0 t each

Manager

Atasoy Uluslararasi Deniz Tasimaciligi A.S.
Gayrettepe Mah. Ayazmadere Cad. Atasoy 1.Blok No:7/A 34349
Besiktas / Istanbul
Turkey

Registered owner

Karsoy Uluslararasi Denizcilik

Latest data adjustment

02 November 2018
