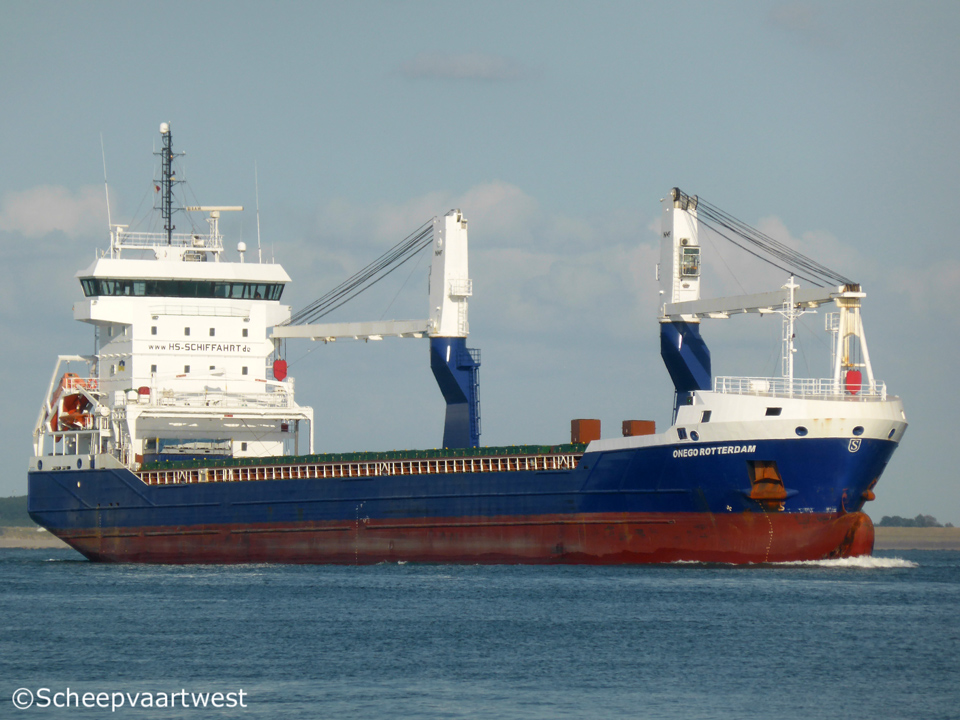

Onego Rotterdam 01

Westerschelde 09 July 2015



Name

ONEGO ROTTERDAM

Previous names

2013 - 2013 Anna

Type

Multipurpose singledeck/tweendeck box-shaped open-hatch, Equipped for dangerous goods according, Strengthened for heavy cargo

Damen Combi Freighter ® 8200

Basic functions

Transport of bulk, steel coils, containers, forest products, general cargo

IMO-number

9631345

Call sign

V2QO7

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

5.751 t

DWT

8.268 t

DWCC

Summer: 7.400 t

NT

3.048 t

Number of 20ft containers

In hold; 171

On deck: 165

Total: 336

Reefer capacity

20

Length

118,14 m overall

115,70 m between perpendiculars

Breadth

15,90 m moulded

Draught

Summer: 7,20 m

Freeboard

1.310 mm

Depth

8,80 m

Speed

13,6 knots

Built

2013

Delivery date

26/04/2013

Builder

Damen Shipyard Bergum
Bergum
The Netherlands

Yard number

9438

Hull material

Steel

Main engine

1x MaK 6M32C - 6 cylinder 320 x 480 mm combustion engine output 2.995 kW / 4.068 hp at 600 rpm

Builder: Caterpillar Motoren GmbH & Co. KG

Propellers

1x Controllable pitch propeller aft at 130 rpm - Diameter 4.250 mm

Shaft generator

1x 585 kVA / 468 kW

Generators

3x Main diesel generatorsets each 450 kVA - 360 kW - 520 hp

Emergency generator

1x Diesel generatorset 120 kVA - 96 kW - 158 hp

Bow thruster

1x Electrically driven fixed pitch propeller 400 kW

Number of holds

2

Hold 1: 19,17 x 13,20 x 10,05 m

Hold 2: 63,90 x 13,20 x 10,05 m

Cargo hold capacity

Grain & bale: 10.795 m³ / 381.220 ft³

Hold ventilation

105.000 m³/h

Number of hatches

2

Hatch 1: 19,17 x 13,20 m

Hatch 2: 63,90 x 13,20 m

Hatches & tweendeck

Weatherdeck hatches pontoon type, full tweendeck pontoon type, three positions, operated by gantry crane and cargo cranes

Max permitted loads

Tanktop: 17,0 t/m²

Tweendeck: 3,0 t/m²

Hatches: 2,0 t/m²

Auxiliary equipment

2x Starting air compressors

2x HFO separators

1x LO separator

1x Booster unit

2x Fuel oil trim pump

1x Bilge water separator acc. to Marpol Regulations

2x General service pumps

1x Fire fighting pump

1x CO2 fire fighting system for the engine room and holds

Tank capacities

HFO (IFO 380): 497 m³

Gas oil: 36 m³

Lub oil clean: 34 m³

Dirty oil: 10 m³

Sludge :19 m³

Sewage: 52 m³

Potable water: 52 m³

Ballast water: 3.028 m³

Cargo gear

2x Deck cranes - SWL 60,0 t each

Accommodation

For captain, officers and crew for a total of 14 persons with heating, ventilation and air-conditioning

Manager

HS Bereederung Haren Ems
Thyssenstraße 16
49733 Haren (Ems)

Germany

Operator

Onego Shipping & Chartering
Spui 24
3161 ED Rhoon
The Netherlands

Owner

Emstrans Scheepvaart Management
Viaductstraat 128 a
9561 AG Ter Apel
The Netherlands

Latest data adjustment

28 September 2018
