Westerschelde 05 May 2014 |
|
Name |

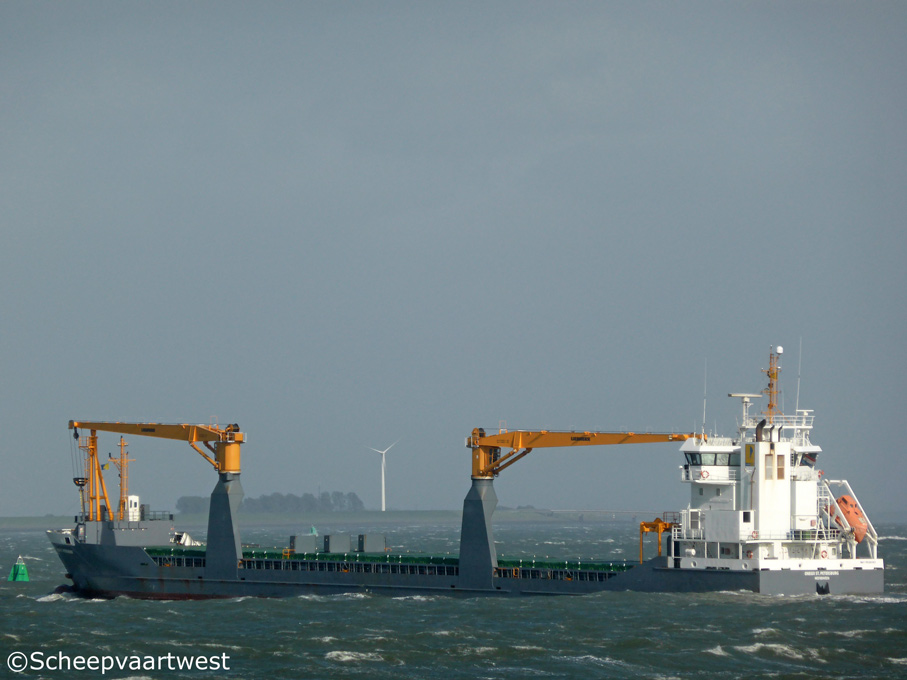

ONEGO ST PETERSBURG |
|
Previous names |
2011 built as: Tide Navigator |
|
Type |
Multi -purpose geared box tweendecker |
|
IMO-number |
9526083 |
|
Call sign |
PCJP |
|
Flag |
The Netherlands |
|
Port of registry |
Heerenveen |
|
GT |
5.425 t |
|
DWT |
Summer: 8.200 t Winter: 8.000 t |
|
DWCC |
Summer: 7.400 t |
|
Number of 20ft containers |
366 of which 165 on deck |
|
Reefer capacity |
20 on deck only |
|
Length |
118,14 m overall 112,29 m between perpendiculars |
|
Breadth |
15,90 mm |
|
Draught |
7,20 m fully laden |
|
Draft ballast |
Fore: 3,20 m Aft: 4,65 m |
|
Air draft |
28,50 m ballast |
|
Depth |
8,80 m to main deck |
|
Speed |
Max.: 13,6 knots Service: 11,5 knots |
|
Built |
2011 |
|
Keel laid |
18.09.2008 |
|
Launch date |
24.11.2009 |
|
Date of completion |
12.02.2011 |
|
Builder casco |
ATVT Sudnobudivinyi Zavod Zaliv |
|
Builder completion |
Damen Shipyards Bergum |
|
Yard number |
9422 |
|
Hull material |
Steel |
|
Number of decks |
2 |
|
Main engine |
1x MaK 9M25C - 4 stroke single acting 9 cylinder 255 x 400 mm diesel engine 2.970 kW / 4.038 bhp at 750 rpm Manufacturer: M.A.K. Caterpillar, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 130 rpm |
|
Generators |
3x Main diesel engine each 280 kW coupled with Stamford generators each 435 KVA / 348 kW |
|
Bow thruster |
1x Berg 300 kW |
|
Number of holds |
2x Boxshaped Hold 1: 21,35 x 13,20 + 11,31 x 7,0 (narr) x 9,70 m Hold 2: 51,12 x 13,20 x 9,70 m |
|
Cargo hold capacity |
10.510 m³ / 371.155 ft³ |
|
Number of hatches |
2 Hatch 1:32,66 x 13,20 m Hatch 2: 51,22 x 13,20 m |
|
Hatch covers |
Pontoon |
|
Tween deck |
Complete twd (except narrowing in Hold1) adjustable 2 heights Pos 1: 3,82 m / 5,37 m Pos 2: 4,59 m / 4,59 m |
|
Max. permitted loads |
Tanktop: 17,0 t t/m² Tweendeck: 3,0 t/m² Hatchcover: 1,75 t/m² |
|
Tank capacities |
HFO: abt 375 m³ (incl day + settling tank) MGO: abt 171 m³ (incl day + settling tank) Fresh water: abt 52 m³ Ballast water: abt 2.943 m³ |
|
Cargo gear |
2x Liebherr cranes - SWL 40,0 t, portside |
|
Manager |
Forest Wave Navigation B.V |
|
Owner |
Forest Wave Navigation B.V |
|
Renamed |
04.2015 Tide Navgator |
|
Latest data adjustment |
03 March 2016 |
