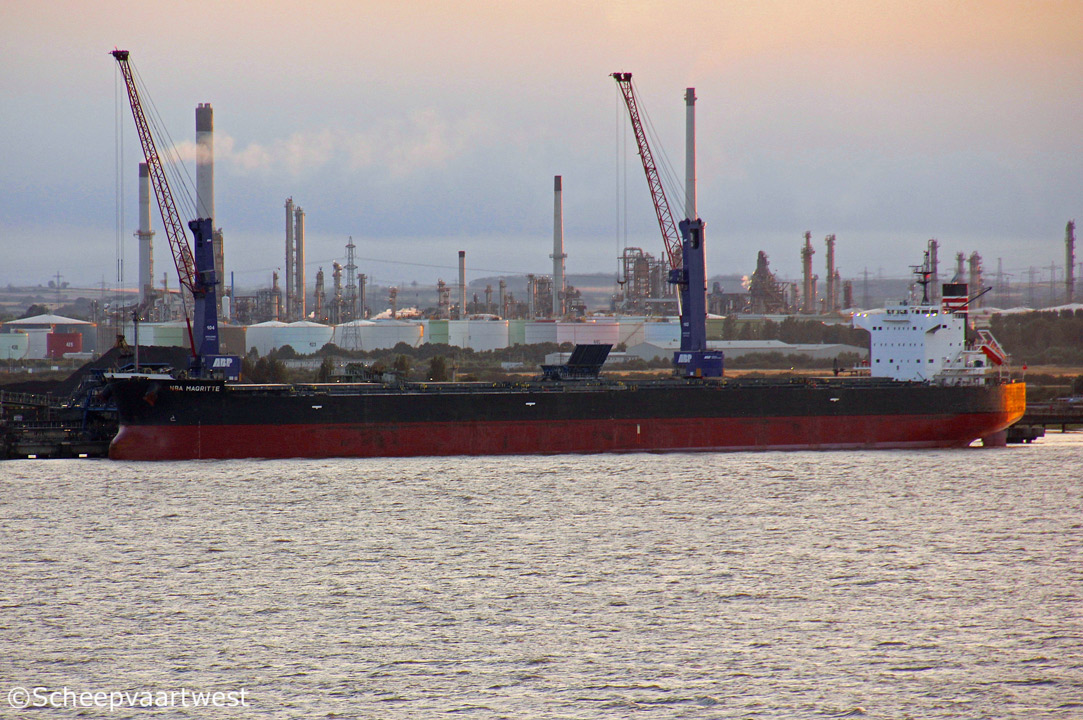

Immingham, United Kingdom 13 July 2018 |
|
Name |
NBA MAGRITTE |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9512331 |
|
Call sign |
9HA3255 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
43.013 t registered |
|
DWT |
Summer: 82.099 t |
|
NT |
27.239 t registered |
|
Length |
228,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,43 mm |
|
Moulded L x B x D |
222,00 x 32,26 x 20,05 m |
|
Registered L x B x D |
222,54 x 32,26 x 20,05 m |
|
Freeboard |
Summer: 5.675 mm |
|
Depth |
20,05 m moulded |
|
Speed |
Max: 15,6 knots |
|
Built |
2013 |
|
Keel laid |
05/07/2010 |
|
Launch date |
06/11/2012 |
|
Date of completion |
29/03/2013 |
|
Builder |
Tsuneishi Shipbuilding Co., Ltd. Japan |
|
Yard number |
1473 |
|
Hull material |
Steel |
|
Main engine |
2x MAN-B&W-Mitsui 6S60MC-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 9.710 kW at 97,4 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 560 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary boiler- 7,0 bar Evaporation: 2,22 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generators - 1.600 kVA |
|
Number of holds |
7 |
|
Cargo hold capacity |
Grain: 97.381 m³ |
|
Tank capacities |
Fuel oil: 3.184 m³ Fresh water: 468 m³ |
|
Manager |
NYK Shipmanagement Pte Ltd. |
|
Registered owner |
NYK Bulkship (Atlantic) NV Antwerpen |
|
Latest data adjustment |
19 August 2018 |
