Westerschelde 18 March 2018 |
|
Name |

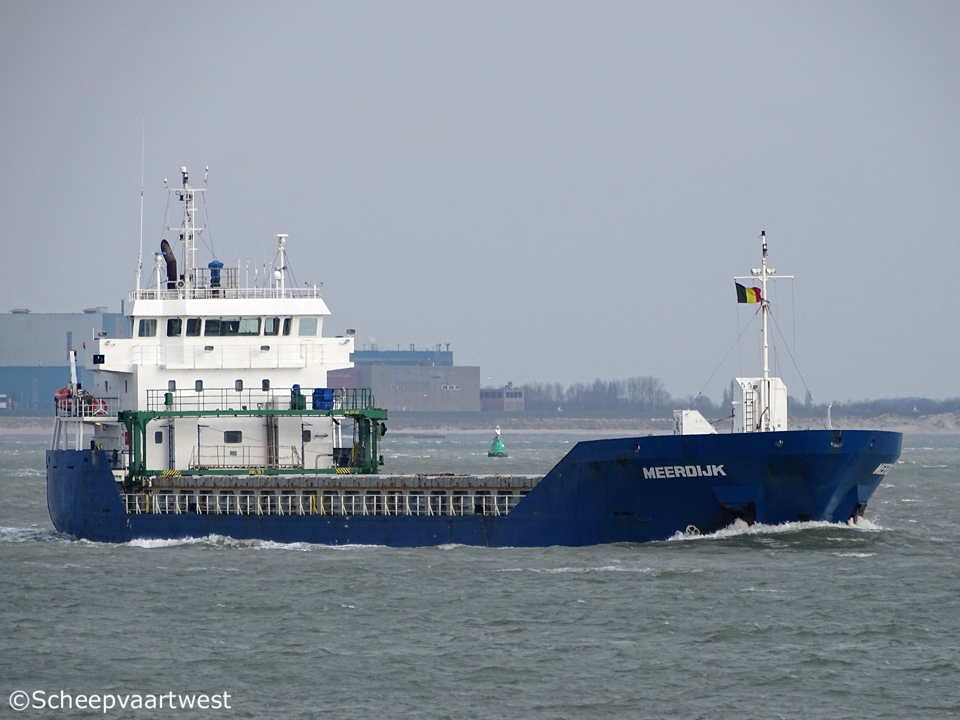

MEERDIJK |
|
Previous names |
2010 Built as: Amisia |
|
Type |
Multi-purpose dry cargo ship - Gearless box singledecker - Strengthened for heavy cargo |
|
IMO-number |
9377925 |
|
Call sign |
PBYY |
|
Flag |
The Netherlands |
|
Port of registry |
Groningen |
|
GT |
2.984 t |
|
DWT |
Summer: 4.891t |
|
DWCC |
Summer: 4.600 t Winter: 4.500 t |
|
NT |
1.598 t |
|
Number of 20ft containers |
On deck: 38 |
|
Length |
89,94 m overall 84,96 m between perpendiculars |
|
Breadth |
14,43 m extreme |
|
Draught |
Summer: 6,22 m Winter: 6,09 m |
|
Air draft |
22,50 m keel/mast 19,00 m keel/mast down |
|
Depth |
7,85 m |
|
Speed |
11,5 knots |
|
Built |
2010 |
|
Keel laid |
10/01/2008 |
|
Launch date |
29/09/2009 |
|
Date of completion |
27/05/2010 |
|
Builder |
Chowgule & Company Pvt. Ltd. Shipbuilding Division Loutulim |
|
Yard number |
C187 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x (in 8 positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MAK Caterpillar 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 2.840 bhp |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
1x 645DSBIG main diesel generatorset |
|
Emergency generator |
1x 645DSBIG diesel generatorset |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1 62,30 x 11,70 x 8,10 m Full box: over 50,28 x 11,70 x 8,10 m |
|
Cargo hold capacity |
Grain: 5.818 m³ / 205.471 ft³ |
|
Hatch covers |
10x Pontoon |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,6 t/m² |
|
Anchor equipment |
Length: 440,00m Diameter: 36 mm |
|
Lifting equipment |
1x Gantry crane for pontoons |
|
Manager |
SCG Management B.V. (Shipping Company Groningen) 9735AD Groningen |
|
Previous managers |
2010 - 2017 Navigia Shipping B.V., Groningen - The Netherlands |
|
Owner |
Meerdijk 2.0 B.V. |
|
Registered owner |
Meerdijk 2.0 B.V. |
|
Previous owner |
2010 - 2017 Meerdijk B.V., Groningen - The Netherlands |
|
Latest data adjustment |
20 June 2018 |
