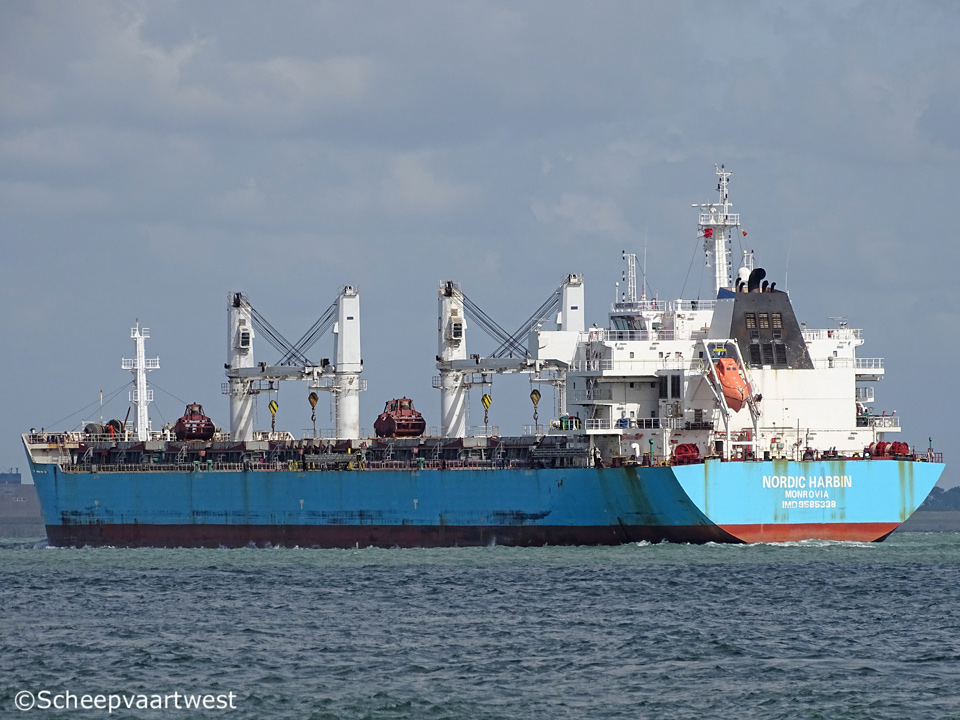

Nordic Harbin 01

Westerschelde 12 July 2017



Name

NORDIC HARBIN

Previous names

2011 - 04/2012 U Sea Corbita

04/2012 - 02/2014 Ultra Corbita

02/2014 - 2015 Corbita

Type

Supramax bulk carrier

IMO-number

9585338

Call sign

D5LV6

Flag

Liberia

Port of registry

Monrovia

Previous flags

2011 - 2012 Marshall Island; Majuro

2012 - 2016 Isle of man, Douglas - 2GCT8

GT

33.044 t

DWT

Summer: 56.811 t

NT

19.231 t

Length

189,99 m overall

185,00 m between perpendiculars

Breadth

32,26 m

Draught

12,80 m

Freeboard

5.224 mm

Speed

14,2 knots

Built

2011

Keel laid

17/12/2009

Date of completion

24/08/2011

Builder

Yangzhou Guoyu Shipbuilding Co., Ltd.
Yizheng City
China

Yard number

GY438

Hull material

Steel

Hull type

Single hull

Watertight bulkheads

6

Continuous decks

1

Main engine

1x Wärtsilä 6RTFLEX-50B - 2 stroke 6 cylinder 500 x 2050 mm combustion engine 9.480 kW / 12.880 hp at 124 rpm

Built: 08/2010

Builder: Qindao Qiyao Wartsila MHI Linshan Marine Diesel Co., Qingdao - China

Propellers

1x Screw propeller solid - aft at 124 rpm

Boilers

1x CHM 243,00 m² - 7,0 bar

Generators

3x Daihatsu 5DK-20e Main diesel generatorsets each 750 kVA - 600 kW - 897 hp

Emergency generator

1x Cummins 6BT5.9-D(M) Diesel generatorset 124 kVA - 99 kW - 175 hp

Number of holds

5

Total capacity of holds

Hold 1: 13.009,86 m³

Hold 2: 15.333,25 m³

Hold 3: 14.553,08 m³

Hold 4: 15.333,27 m³

Hold 5: 13.404,64 m³

Total: 71.634,1 m³

Hold ventilation

Natural

Number of hatches

5

Hatch 1: 18,86 x 18,26 m

Hatch 2: 21,32 x 18,26 m

Hatch 3: 21,32 x 18,26 m

Hatch 4: 21,32 x 18,26 m

Hatch 5: 21,32 x 18,26 m

Hatch cover type

Folding

Pumps

2x Ballast pumps each 800 m³/h

Tank capacities

Ballast: 16.314 m³
Ballast with flooted hold: 30.867 m³
Fuel: 2.412 m³

Cargo gear

4x MacGregor electro-hydraulic cranes - SWL: 36 t each for hook use & 28 t for grab use, max outreach abt 11,90 m

Type of grabs: 4 electro-hydraulic/dual scoop

Crew size

25

Manager

Corbita Ship Managers
Hamburg
Germany

ISM manager

Nordic Hamburg Shipmanagement GmbH
Cremon 32
20457 Hamburg
Germany

Owner

Corbita-Guoyu Dolphin One Gmbh & Co. KG
Cremon 32
20457 Hamburg
Germany

Latest data adjustment

13 May 2018
