Antwerpen 19 April 2018 |
|
Name |

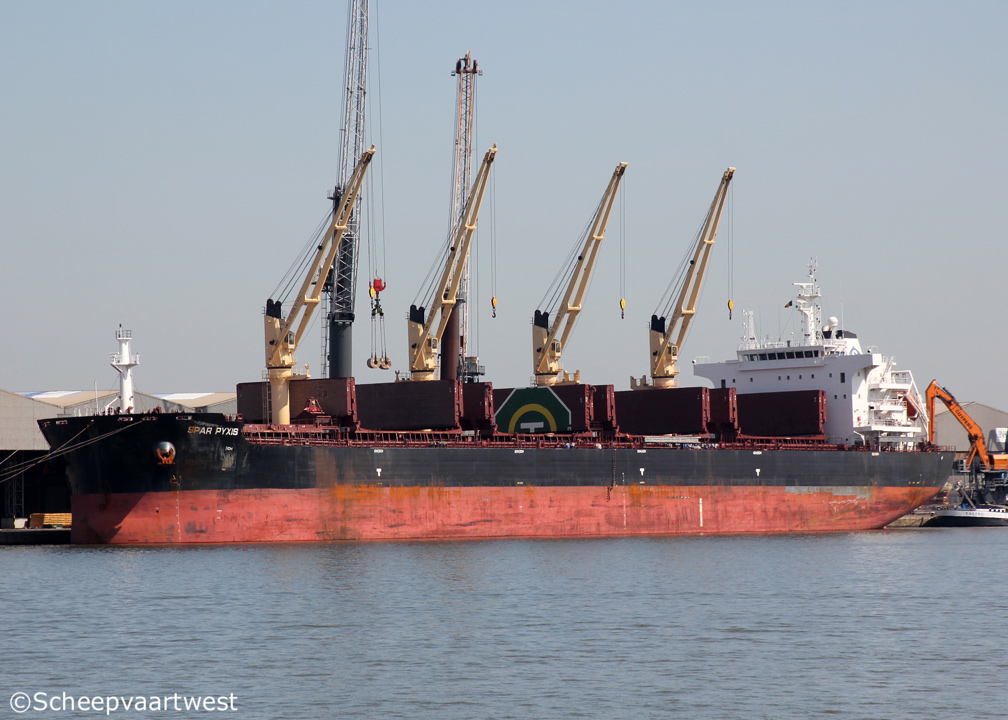

SPAR PYXIS |
|
Type |
Grab fitted bulk carrier - Ultramax |
|
IMO-number |
9701932 |
|
Call sign |
LATQ7 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
36.730 t |
|
DWT |
Summer: 63.800 t |
|
NT |
21.623 t |
|
Length |
199,90 m overall 194,81 m between perpendiculars |
|
Breadth |
32,26 m extreme |
|
Draught |
13,29 m |
|
Depth |
18,50 m |
|
Speed |
Max: 16,5 knots |
|
Built |
2015 |
|
Keel laid |
29/08/2014 |
|
Launch date |
20/12/2014 |
|
Date of completion |
19/03/2015 |
|
Builder |
Jiangsu Hantong Ship Heavy Industry Co., Ltd. |
|
Yard number |
HT64-159 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x HHM-MAN & B&W 5S60ME-C8 - 5 cylinder combustion engine 8.050 kW / 12.880 bhp at 89,0 rpm |
|
Propellers |
1x Mono-block propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x Daihatsu 6DEM-18 main diesel generatorsets each 850 kW Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Factory |
|
Emergency generator |
1x Cummins 6CT-8.3-D(M) diesel generatorset 140 kW |
|
Number of cargo holds |
5 |
|
Cargo hold capacity |
78.928,91 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Ballast: 33.055,3 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
4x Cranes - SWL 35,0 t each with 4 grabs |
|
Manager |
Fleet Management Limited |
|
Registered owner |
Spar Shipping AS |
|
Latest data adjustment |
09 May 2018 |
