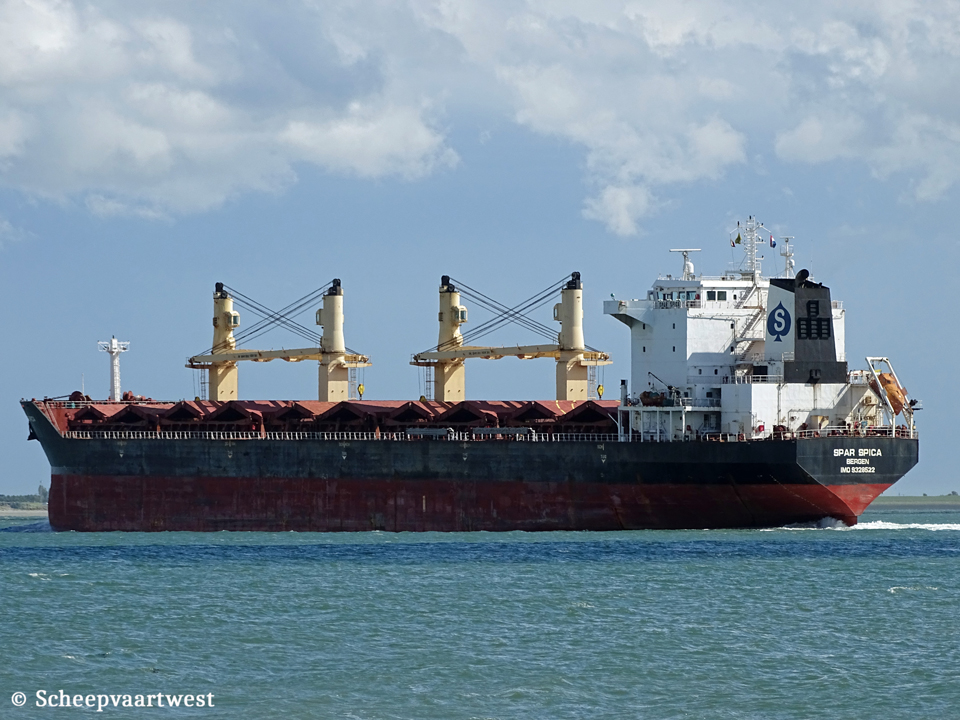

| Westerschelde 09 September 2017 |
|
Name |
SPAR SPICA |
|
Previous names |
2005 - 2005 Paracan 10/2005 - 11/2005 Bulk Voyager 11/2005 - 03/2009 Arya Payam 03/2009 - 04/2001 Bulk Voyager |
|
Type |
Geared grab fitted bulk carrier - Strengthened for heavy cargo loading - Supramax |
|
IMO-number |
9328522 |
|
Call sign |
LAMY7 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
Previous flags |
2005 - 2005 Hong Kong 2005 - 2011 Cyprus, Limassol - Call sign: C4FE2 |
|
GT |
32.474 |
|
DWT |
53.565 t |
|
NT |
17.790 |
|
Length |
190,00 m overall 183,30 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
Summer: 12,55 m |
|
Moulded L x B x D |
182,95 x 32,26 x 17,50 m |
|
Freeboard |
Summer: 4.986 mm |
|
Depth |
17,50 m |
|
Speed |
Max: 14,5 knots |
|
Build |
2005 |
|
Keel laid |
27/12/2004 |
|
Launch date |
07/04/2005 |
|
Date of completion |
08/08/2005 |
|
Builder |
Chengxi Shipyard Jiangyin China |
|
Yard number |
CX4212 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Hudong 6S50MC - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.890 bhp at 127,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 439 mm |
|
Propellers |
1x Fixed keyless propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,90 MPa Evaporation: 3,10 t/h Manufacturer: Saacke Qingdao Marine Boiler Co.,Ltd. |
|
Generators |
4x Generatorsets total 2.706 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 64.000 m³ Grain: 65.752 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 2.044 m³ Fresh water: 239 m³ |
|
Cargo gear |
4x Deck cranes - SWL 36,0 t each 4x Electro hydraulic grabs |
|
Commercial manager |
Spar Shipping AS Kokstadflaten 305257 Kokstad Norway |
|
ISM manager |
Fleet Management Limited 27 Th Floor, South Island Place, 8 Wong Chuk Hang Road Hong Kong China |
|
Registered owner |
Spar Shipping AS Kokstadflaten 305257 Kokstad Norway |
|
Latest data adjustment |
16 December 2024 |
