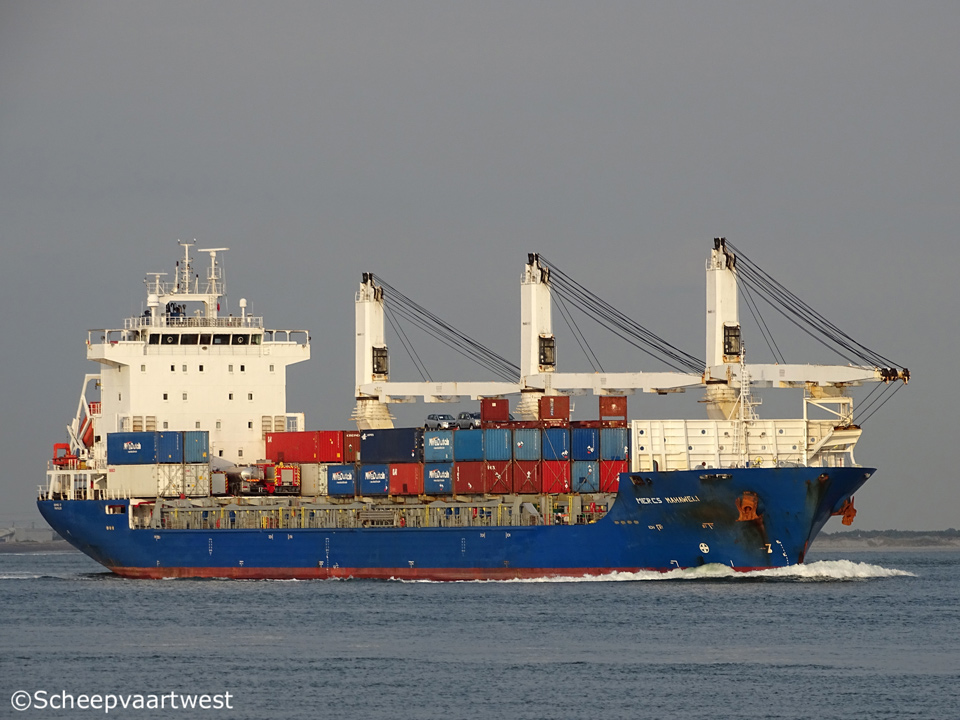

Westerschelde 13 July 2017 |
|
Name |
MERCS MAHAWELI |
|
Previous names |
2010 Launch as: Sonja Friederich 2010 - 2015 Safmarine Longa 2015 - 2017 BBC Mahaweli |
|
Type |
Multi-Purpose dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9500077 |
|
Call sign |
4RBQ |
|
Flag |
Sri Lanka |
|
Port of registry |
Colombo |
|
GT |
9.772 t |
|
DWT |
Summer: 12.349 t |
|
NT |
4.384 t |
|
Number of 20ft containers |
712 |
|
Length |
140,07 m overall 133,72 m registered |
|
Breadth |
21,50 m registered |
|
Draught |
8,20 m |
|
Forecastle |
10,35 m |
|
Poop |
12,90 m |
|
Depth |
11,40 m moulded |
|
Speed |
16,5 knots |
|
Built |
2010 |
|
Keel laid |
04/12/2008 |
|
Launch date |
06/08/2009 |
|
Date of completion |
21/09/2010 |
|
Builder |
Tongfang Jiangxin Shipbuilding Co., Ltd. Jiangxin Road, Hukou County Jiujiang, 332501 Jiangxi People's Republic of China |
|
Yard number |
JX603 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW at 129 rpm Year of manufacture: 2008 Manufacturer: Hyundai Heavy Industries Co., Ltd. 1, Jeonha-dong, Dong-gu Ulsan ,682-792 Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 129 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating Surface: 22,6 m² 1x Steam boiler, exhaust gas heated - 7,0 bar Heating Surface: 260,0 m² Year of manufacture: 2008 Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. 1, Renmin XI Road Zhangjiagang City ,215600 Jiangsu People's Republic of China |
|
Electric installations |
3x Plants each 450 V - 1.000 kVA 1x Plant 450 V - 122,5 kVA 2x Plants each 24 V - 200 Ah 1x Plant 24 V - 400 Ah 4x Plants each 24 V - 600 Ah |
|
Generators |
3x Main diesel generatorsets each 1.000 kVA |
|
Emergency generator |
1x Diesel generatorset 122,5 kVA |
|
Batteries |
4x Batteries for start emergency engine each 600 Ah 1x Battery for UPS radio 400 Ah 2x Batteries for automation each 200 Ah |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 40 litres - 10,0 bar 1x Receiver 1.000 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster - 500 kW, forward |
|
Tank capacities |
Ballast: 4.753,4 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m Diameter: 54 mm |
|
Cargo gear |
1x Crane - 45,0 / 40,0 t 2x Cranes - each 80,0 / 40,0 t |
|
Crew size |
25 |
|
Manager |
Reederei Eugen Friederich GmbH & Co. KG Anne-Conway-Str. 2 28359 Bremen Federal Republic of Germany |
|
Operator |
Mercantile Marine Management Ltd. No 441, K. Cyril C. Perera Mawath Colombo Sri lanka |
|
Registered owner |
MS "SONJA FRIEDERICH" Schifffahrtsges. mbH & Co. KG Anne-Conway-Str. 2 Federal Republic of Germany |
|
Renamed |
2019 Zea Mahaweli Sri Lanka, Colombo - Call sign: 4RBQ |
|
Latest data adjustment |
22 November 2020 |
