Westerschelde 01 April 2017 |
 |
| Westerschelde 01/04/17 |
|
Name |

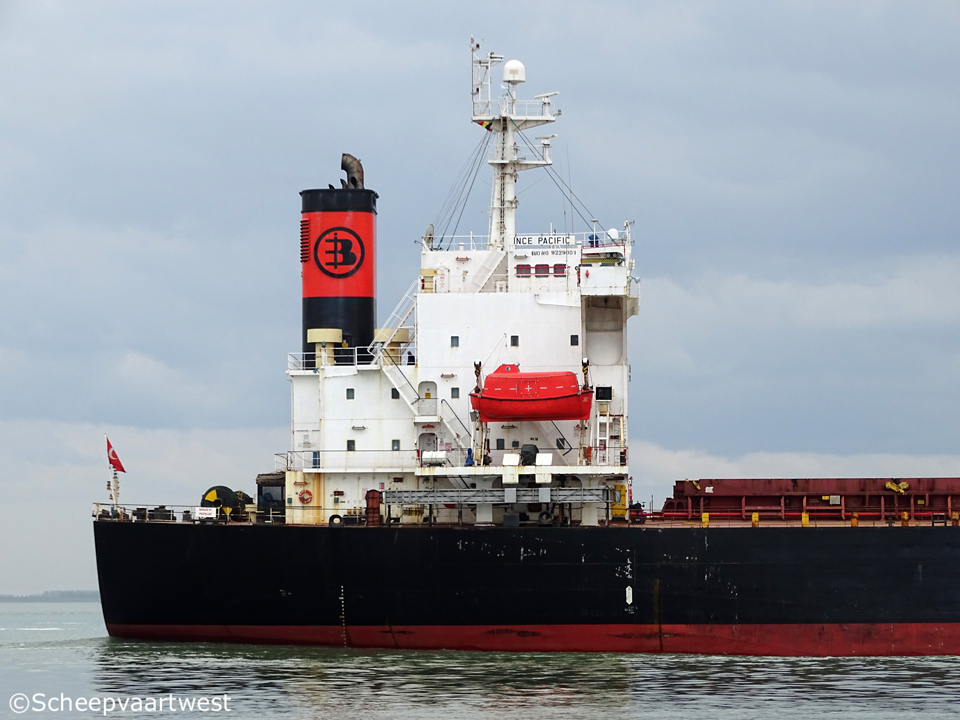

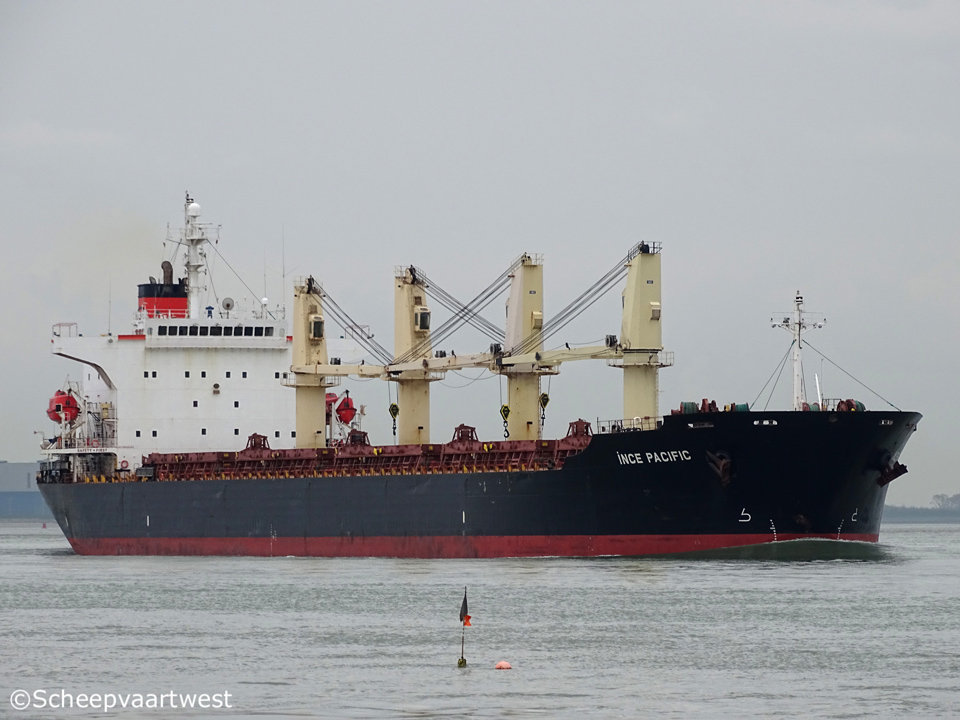

INCE PACIFIC |
|
Type |
Bulk carrier |
|
IMO-number |
9229001 |
|
Call sign |
TCPE |
|
Flag |
Turkey |
|
Port of registry |
Istanbul |
|
GT |
25.938 t registered Suez: 26.872,29 |
|
DWT |
Summer: 45.514 t Winter: 44.310 t |
|
NT |
15.427 t registered Suez: 24.219,16 t Panama: 21.572 t |
|
Displacement |
Summer: 53.181 t Winter: 51.977 t |
|
Light ship |
7.667 t |
|
Length |
185,74 m |
|
Breadth |
30,40 m moulded |
|
Draught |
Summer: 11,62 m Winter: 11,38 m |
|
Moulded L x B x D |
177,00 x 30,40 x 16,50 m |
|
Registered L x B x D |
178,08 x 30,40 x 16,50 m |
|
Keel to top mast |
46,40 m |
|
Air draft |
34,78 m loaded 38,40 m ballast |
|
Freeboard |
Summer: 4.918 mm Winter: 5.160 mm |
|
Depth |
16,50 m moulded |
|
Speed |
Max: 15,9 knots |
|
Built |
2001 |
|
Keel laid |
02/02/2001 |
|
Launch date |
26/03/2001 |
|
Delivery date |
12/07/2001 |
|
Builder |
Tsuneishi Heavy Industries (Cebu) Inc. |
|
Yard number |
SC-024 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui MAN B&W 6S50MC Mark 6 - 2 stroke single acting 6 cylinder 500 x 1.910 mm combustion engine 7.171 kW at 120,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 500 mm |
|
Propellers |
1x Solid pitch propeller - 4 blades keyless diameter 5.800 mm |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 2,20 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
3x Yanmar 6N18AL-HV main diesel generatorsets |
|
Emergency generator |
1x Mitsui Zosen BF6L913diesel generatorset |
|
Number of holds |
5 Hold 1: 20,00 x 15,30 m Hold 2-5: 20,80 x 12,30 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 10.361,6 / 10.015,1 m³ Hold 2: 12.199,4 / 11.844,6 m³ Hold 3: 11.731,1 / 11.392,0 m³ Hold 4: 12.193,8 / 11.814,0 m³ Hold 5: 10.722,5 / 10.499,2 m³ Grain: 57.208,4 m³ Bale: 55.564,9 m³ |
|
Hatch cover type |
MacGregor Folding type |
|
Tank capacities |
Fuel oil: 1.703,8 m³ Diesel oil: 86,6 m³ Fresh water: 389 m³ |
|
Cargo gear |
4x Electro-hydraulic driven deck cranes- SWL 30,0 t each Grab: 4x Dual-scope motor grab MZGL-12000-6-B / Cap.: 12/10/8,5/7,5/6 m³ |
|
Manager |
Ince Denizcilik Ve Ticaret A.S. 34662 Altunizade - Uskudar |
|
Registered owner |
Incetrans Deniz Tasimaciligi Limited Sirketi |
|
Group |
Ince Shipping |
|
Latest data adjustment |
25 March 2018 |
