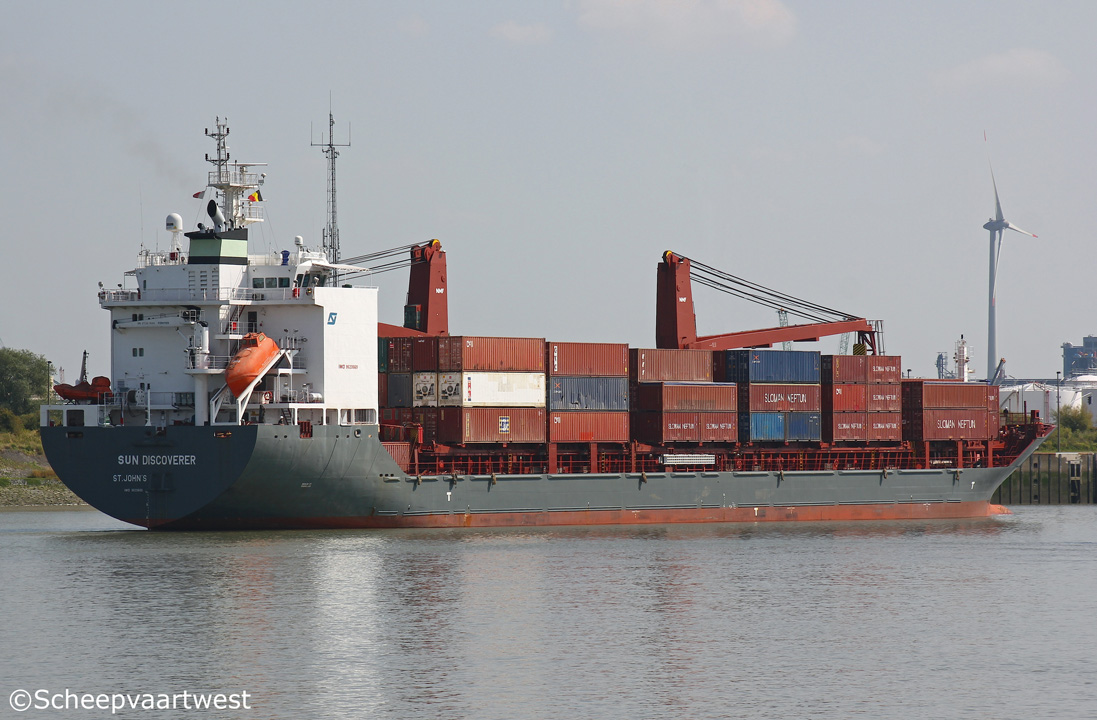

Sun Discoverer 02

Antwerpen 29 August 2017

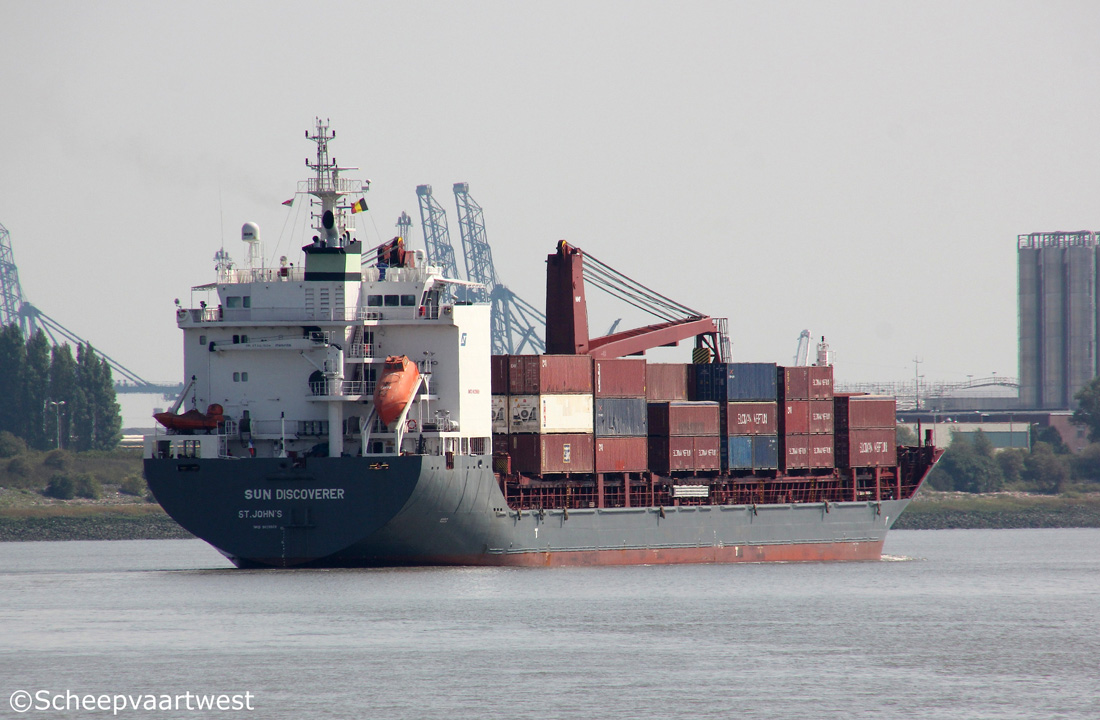

Sun Discoverer 01
Antwerpen 29/08/17



Name

SUN DISCOVERER

Previous names

Sloman Discoverer

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9620669

Call sign

V2FO2

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

9.611 t

DWT

Summer: 12.641 t

NT

4.260 t

Number of 20ft containers

665

Container capacity 14t

524

Reefer capacity

25 sockets - max. 50 reefers via splitters

Length

138,01 m overall

130,71 m between perpendiculars

Breadth

21,36 m extreme

21,00 m moulded

Draught

8,00 m

Freeboard

3.018 mm

Depth

11,00 m moulded

Speed

15,0 knots

Built

2012

Keel laid

20.11.2008

Launch date

25.07.2011

Date of completion

06.01.2012

Builder

Jiangzhou Union Shipbuilding Co., Ltd.
Matou Town
Rui Chang ,332208 Jiangxi
People's Republic of China

Yard number

JZ1040

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

6

Continuous decks

2

Main engine

1x Mak 6M43C - 4 stroke 6 cylinder 430 x 610 mm diesel engine - 5.400 kW at 500 rpm

Year of manufacture: 2011

Manufacturer: Caterpillar Motoren Rostock GmbH
Werftallee 13
18119 Rostock
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 130 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10, bar

Heating surface: 88,6 m²

Year of manufacture: 2010

1x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 39,0 m²

Year of manufacture: 2011

Manufacturer: Alfa Laval Aalborg B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

Electric installations

3x Plants each 400 V - 493 kVA

1x Plant 400 V - 875 kVA

1x Plant 400 V - 124 kVA

2x Plants each24 V - 160 Ah

1x Plant 24 V - 195 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

Shaft generator

1x 875 kVA

Generators

3x MAN D 2840 LE 301 diesel generatorsets each 493 kVA

Emergency generator

1x D 2866 E diesel generatorset 124 kVA

Batteries

1x Battery for UPS navigation 200 Ah

1x Battery for automation 200 Ah

1x Battery for UPS radio 195 Ah

2x Batteries for start emergency engine each 160 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 33,0 bar

1x Receiver 160 litres - 33,0 bar

1x Receiver 30 litres - 33,0 bar

1x Receiver 1.000 litres - 11,0 bar

1x Receiver 250 litres - 11,0 bar

Bow thruster

1x Transverse thruster - 500 kW, forward

Number of holds

3

Cargo hold capacity

15.953 m³

Tank capacities

Ballast: 5.001 m³

Anchor equipment

3x Anchors weight each 4.590 kg

Length: 550,00 m

Diameter: 52 mm

Cargo gear

2x Deck cranes - SWL 150 t each combinable up to 300 t

Crew size

20

Manager

Sloman Neptun Schiffahrts-Aktiengesellschaft
Langenstraße 44
28195 Bremen
Germany

Registered owner

Sloman Neptun Schiffahrts-Aktiengesellschaft

Latest data adjustment

18 October 2017
