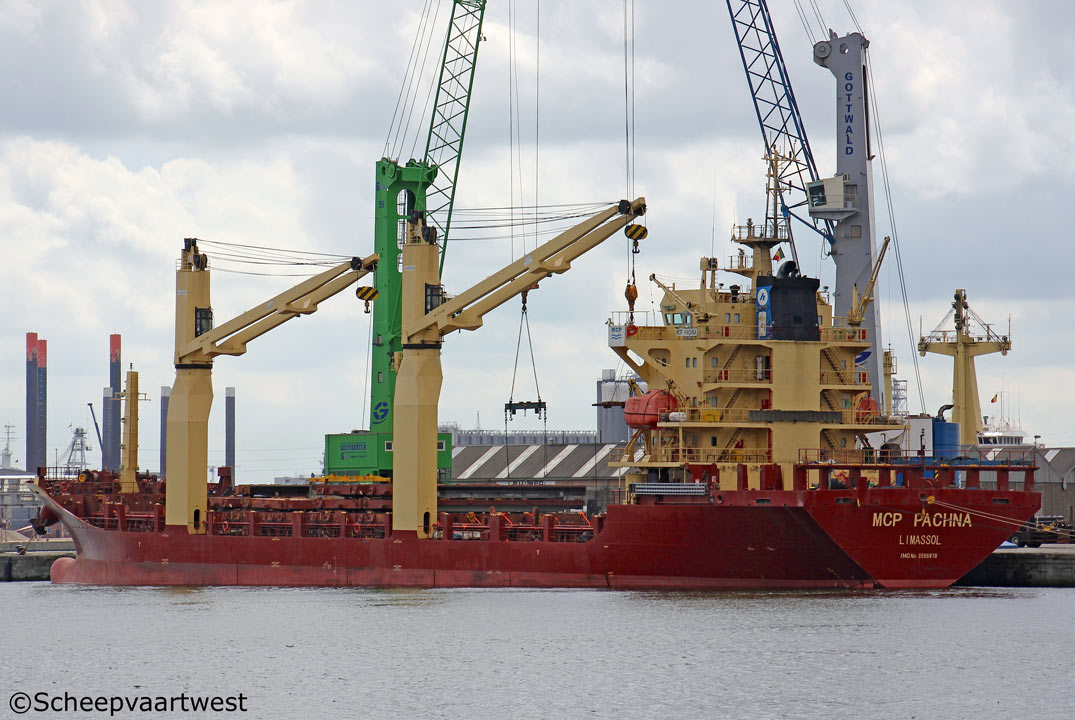

MCP Pachna 01

Antwerpen 20 July 2017



Name

MCP PACHNA

Type

General dry cargo ship - Strengthened for Heavy Cargoes; - Equipped with container securing arrangements

IMO-number

9566679

Call sign

5BVR2

Flag

Cyprus

Port of registry

Limassol

GT

5.338 t

DWT

Summer: 7.734,4 t

NT

2.309 t

Number of 20ft containers

Hold 1: 42 or 15 FEU + 9 TEU

Hold 2: 90 or 36 FEU + 18 TEU

Hold 3: 68 or 34 FEU

Hatch 1: 57 or 18 FEU + 21 TEU

Hatch 2: 154 or 63 FEU + 27 TEU

Hatch 3: 139 or 67 FEU + 5 TEU

Deck aft: 68 or 32 FEU or 32 FEU + 4 TEU

Total: 618 or 271 FEU + 84 TEU

Container capacity 14t

406

Reefer plugs

60 - 34 A,440 V,60 Hz, 9P+E

Length

117,00 m overall

110,00 m between perpendiculars

Breadth

19,70 m moulded

Draught

6,46 m

Forecastle

12,09 m

Poop

22,15 m

Deckhouse

9,10 m

Freeboard

2.072 mm

Depth

8,50 m to main deck

Speed

13,8 knots

Built

2009

Date of completion

16.10.2009

Builder

Huanghai Shipbuilding Co.,Ltd.
Rongcheng
China

Yard number

HCY 110

Hull material

Steel

Bulkheads

6

Number of decks

1x Upper deck

Main engine

2x Daihatsu 8DKM-28L - 8 cylinder 280 x 390 mm diesel engine each 2.500 kW at 750 rpm

Built: 01.04.2009

Builder: Shaanxi Diesel Heavy Industry Co.,Ltd. - China

Boilers

1x Boiler - 9,0 bar

Built: 01.07.2008

Builder: SAACKE Qingdao Marine Boiler Co., Ltd. - China

Generators

3x Deutz MWM TBD 134V8 main diesel engine each 296 kW coupled with generator 312 kVA - 450 Volt/60Hz

Number of holds

3

Hold 1: 22,10 x 15,00 m narrowing fore to 6,60 m x 8,30/8,35 m

Hold2: 33,15 x 15,00 m x 8,40 m

Hold 3: 26,65 x 15,00 m narrowing fore to 6,60 m x 8,40/7,20 m

Cargo hold capacity

Grain/Bale:

Hold 1: 2.279,40 m³

Hold 2: 4.146,40 m³

Hold 3: 3.175,80 m³

Total: 9.601,60 m³

Number of hatches

3

Hatch 1: 19,50 x 15,00 m

Hatch 2: 31,85 x 15,00 m

Hatch 3: 25,35 x 15,00 m

Hatch cover type

MacGreghor original MacStack system, non-sequential opening possible

Max. permitted loads

Tanktop: 17,0 t/m²

Hatch 1: 4,3 t/m²

Hatch 2&3: 3,5 t/m²

Tank capacities 100%

Ballast: 3.915 m³

Fuel oil: 386 m³

Diesel oil: 235 m³

Fresh water: 163 m³

Lifting equipment

1x Crane - SWL 2,0 t

Cargo gear

2x Haegglunds electro/hydraulic Cranes - SWL 40,0t each

Combined SWL 80,0 t

Crew size

20

Operator

Intership Navigation Co., Ltd.

Miltonos Street
Limassol
Cyprus

Owner

Blue Sky Shipping Limited

Latest data adjustment

15 August 2017
