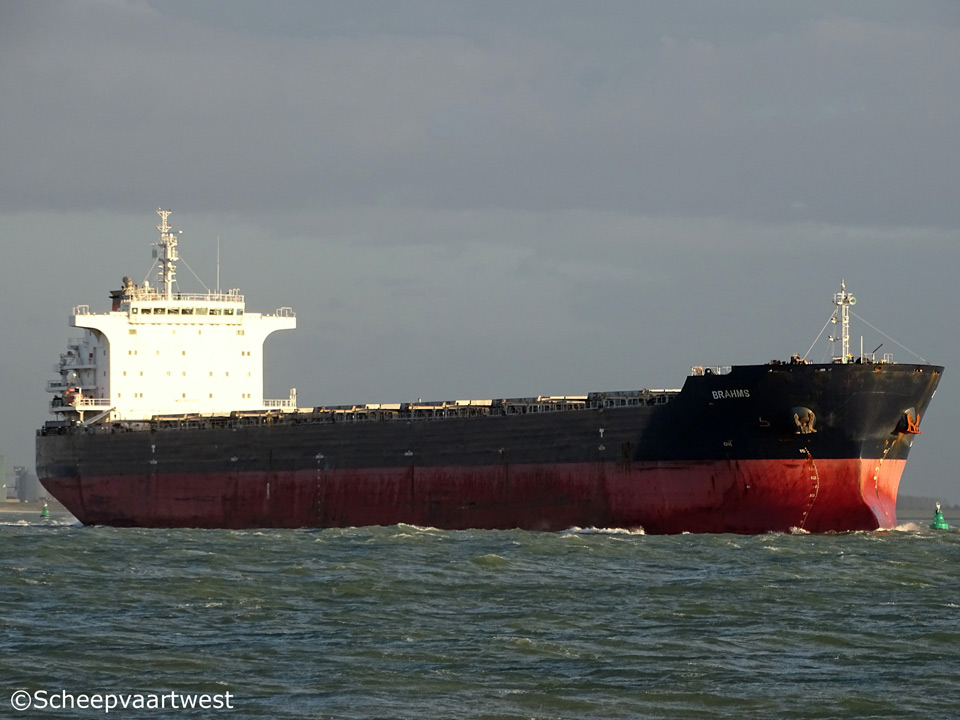

Brahms 01

Westerschelde 11 January 2017

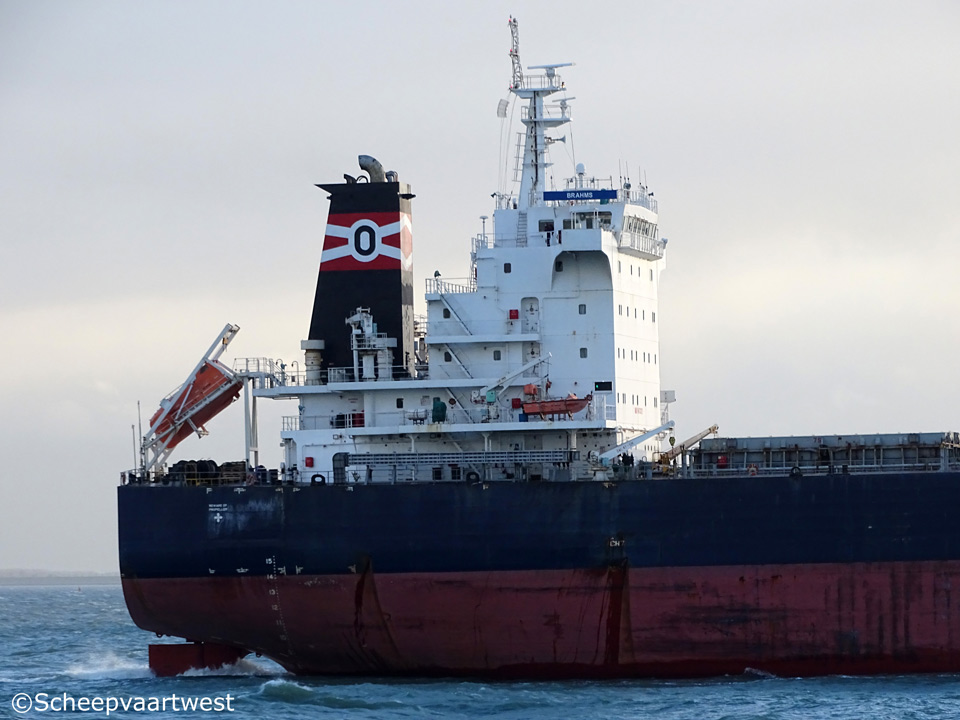

Brahms 02
Westerschelde 11/01/17



Name

BRAHMS

Previous names

2011 - 07.2014 Conti Serpentin

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9473327

Call sign

9HA3558

Flag

Malta

Port of registry

Valletta

GT

41.074 t registered

DWT

75.003 t

NT

25.643 t registered

Length

225,00 m overall

Breadth

32,26 m moulded

Draught

Summer: 14,22 m

Moulded L x B x D

217,00 x 32,26 x 19,60 m

Registered L x B x D

217,92 x 32,26 x 19,60 m

Freeboard

5.420 mm

Depth

19,60 m moulded

Speed

15,4 knots

Built

2011

Keel laid

04.03.2010

Date of completion

22.06.2011

Builder

Penglai Zhongbai Jinglu Ship Industry Co., Ltd.
1 Yingbin Road

Lingang Ind Zone Xicheng

Penglai, 265601

China

Yard number

JL0005(B)

Hull material

Steel

Main engine

1x 2 stroke single acting 5 cylinder 600 x 2.400 mm diesel engine 8.833 kW at 105,0 rpm

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propeller shaft

1x oil lubrication shaft without monitoring device

Diameter: 535 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 9,0 bar

Evaporation: 2,70 t/h

Manufacturer: Aalborg(Qingdao) Boiler Company Ltd.

Generators

4x Generators - 2.225 kVA

Cargo hold capacity

Grain: 90.136 m³

Tank capacities

Fuel oil: 3.049 m³

Fresh water: 343 m³

Manager

Orion Reederei GmbH & Co. KG
Große Elbstraße 277
22767 Hamburg
germany

Registered owner

Bareboat Charterer: Brahms Shipping Company Limited

Latest data adjustment

24 April 2017
