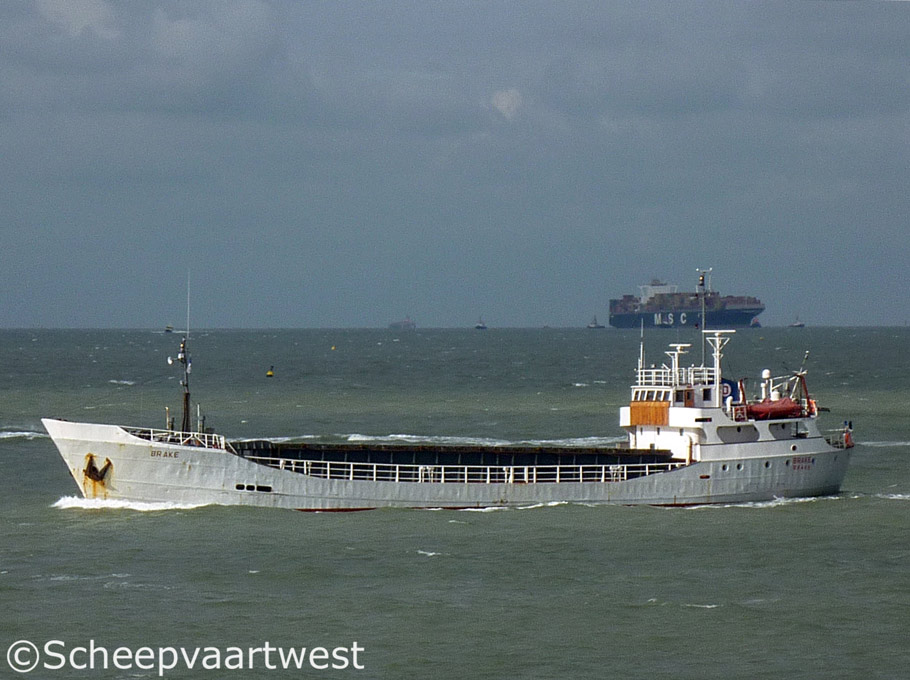

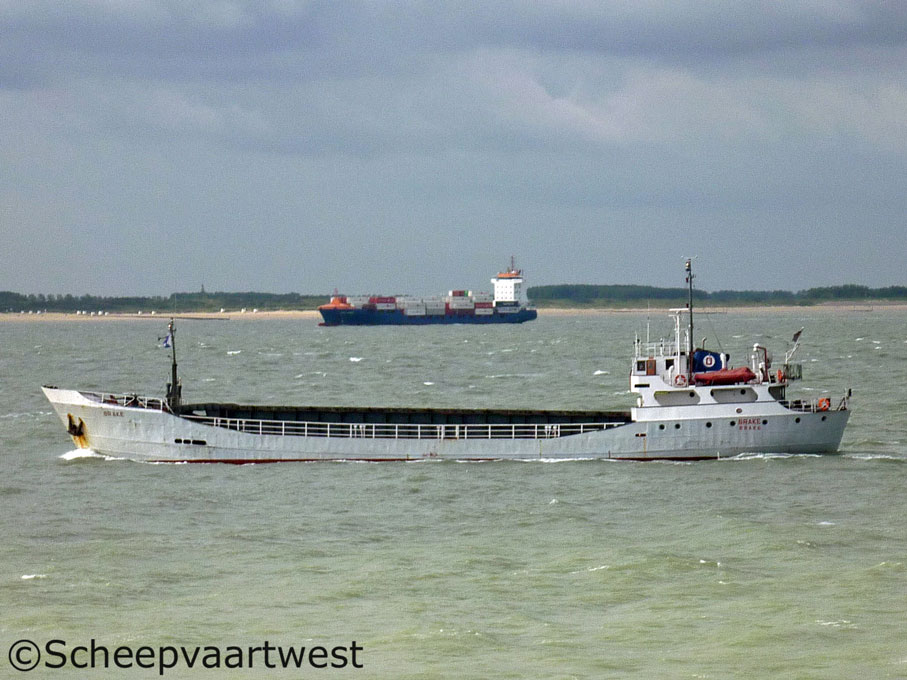

| Westerschelde 19 September 2011 |
 |
| Westerschelde 19/09/11 |
|
Name |
BRAKE |
|
Previous names |
1957 - 18-11-1990 Marlies |
|
Type |
General cargo |
|
IMO-number |
5225904 |
|
Call sign |
T2ND |
|
Flag |
Tuvalu |
|
Port of registry |
Brake |
|
GT |
603 t |
|
DWT |
Summer: 817 t |
|
NT |
351 t |
|
Length |
57,89 m overall 52,10 m registered |
|
Breadth |
8,50 m registered |
|
Draught |
3,41 m |
|
Forecastle |
6,55 m |
|
Poop |
11,60 m |
|
Depth |
3,45 m moulded |
|
Speed |
9,5 knots |
|
Built |
1957 Ship lengthened: 03.1978 by Elsflether Werft |
|
Keel laid |
08.11.1956 |
|
Launch date |
02.04.1957 |
|
Date of completion |
06.1957 |
|
Builder |
C. Lühring |
|
Yard number |
5604 |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
3 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK MSU 423 - 4 stroke 6 cylinder 290 x 420 mm diesel engine - 265 kW / 360 bhp at 340 rpm Year of manufacture: 1957 Manufacturer: MaK Maschinenbau Kiel AG - Germany |
|
Electric installations |
1x Plant 380 V - 15 kVA 1x Plant 24 V - 0,6 kW 1x Plant 24 V - 1,6 kW |
|
Generators |
1x Generator 15 kVA 1x Generator 1,6 kW 1x Generator 0,6 kW |
|
Compressed air receivers |
1x Receiver 500 litres - 40,0 bar 1x Receiver 250 litres - 40,0 bar |
|
Cargo capacity |
Grain:1.250 m³ / 46.000 ft³ Bales: 1.150 m³ / 44.000 ft³ |
|
Number of holds |
1 |
|
Number of hatch |
1 |
|
Tank capacities |
Fuel oil: 32 m³ Water ballast: 271 m³ |
|
Anchor equipment |
3x Anchors weight each 780 kg Chain length: 330,00 m |
|
Manager |
RMS Schiffahrtskontor Bremen GmbH |
|
Managing owner |
Ludwig Harms Finanzdienstleistungen e.K. |
|
Owner |
Ohlrogge Schiffahrts KG Inh. Olaf Ohlrogge e.K. |
