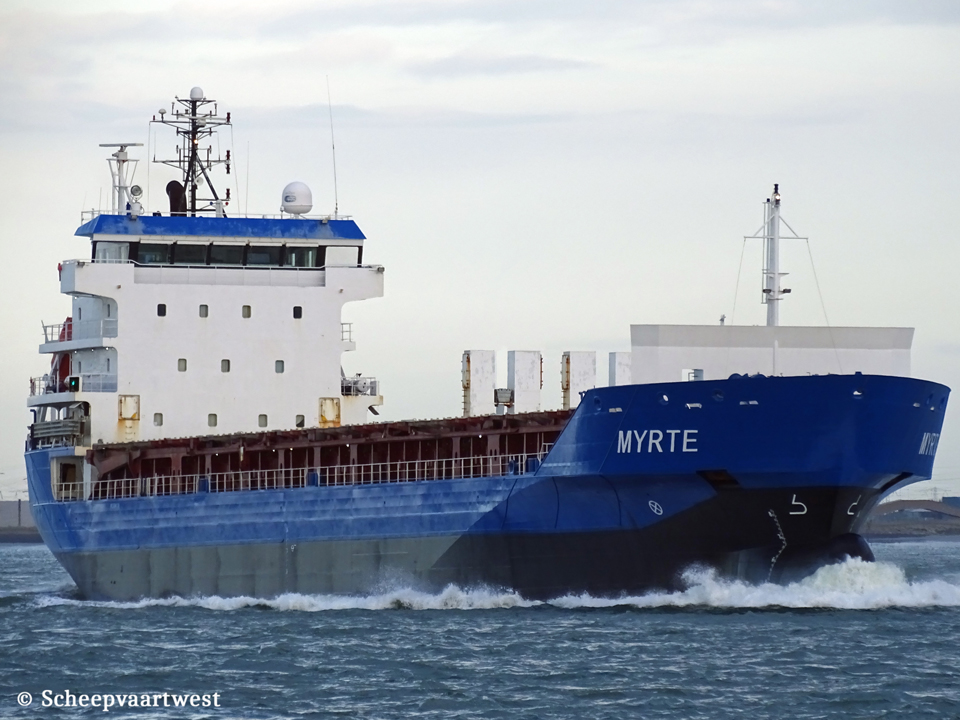

Myrte IMO 9364136 07

Westerschelde 30 September 2016

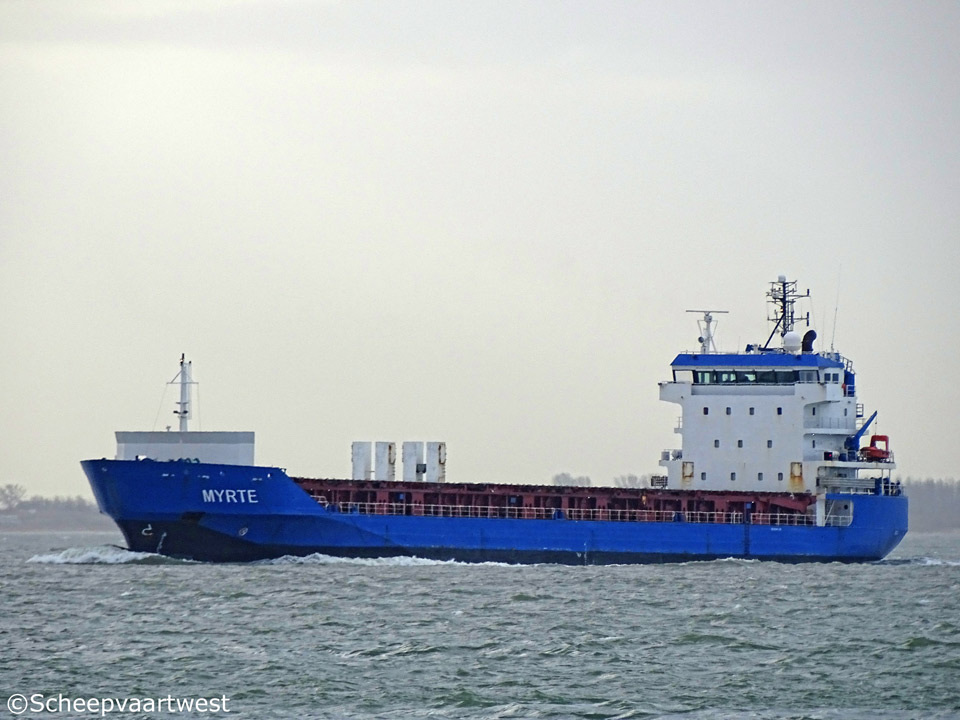

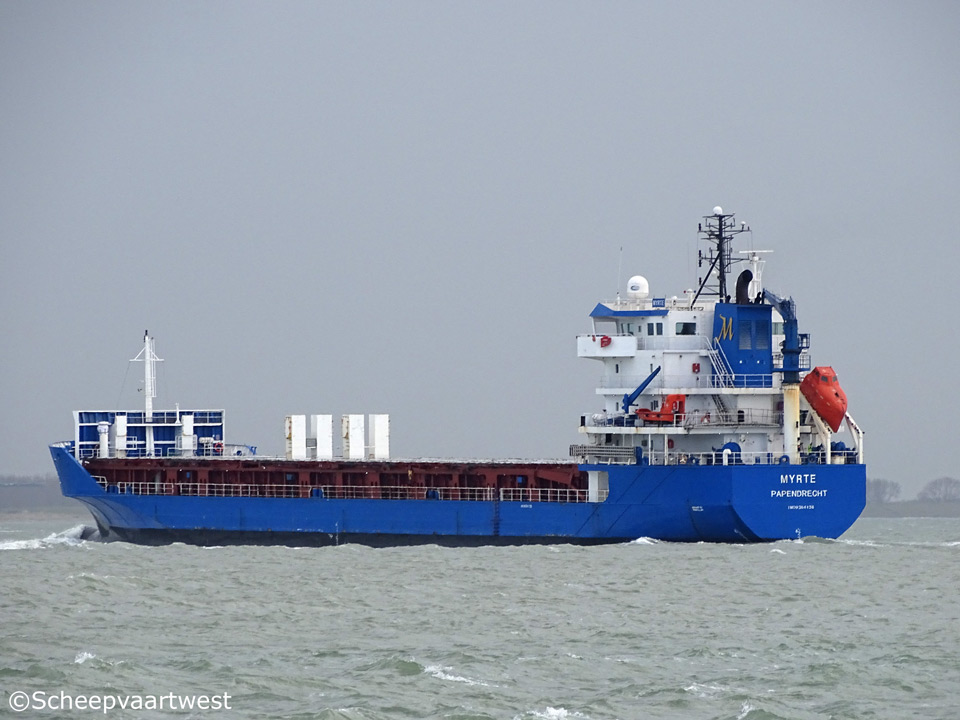

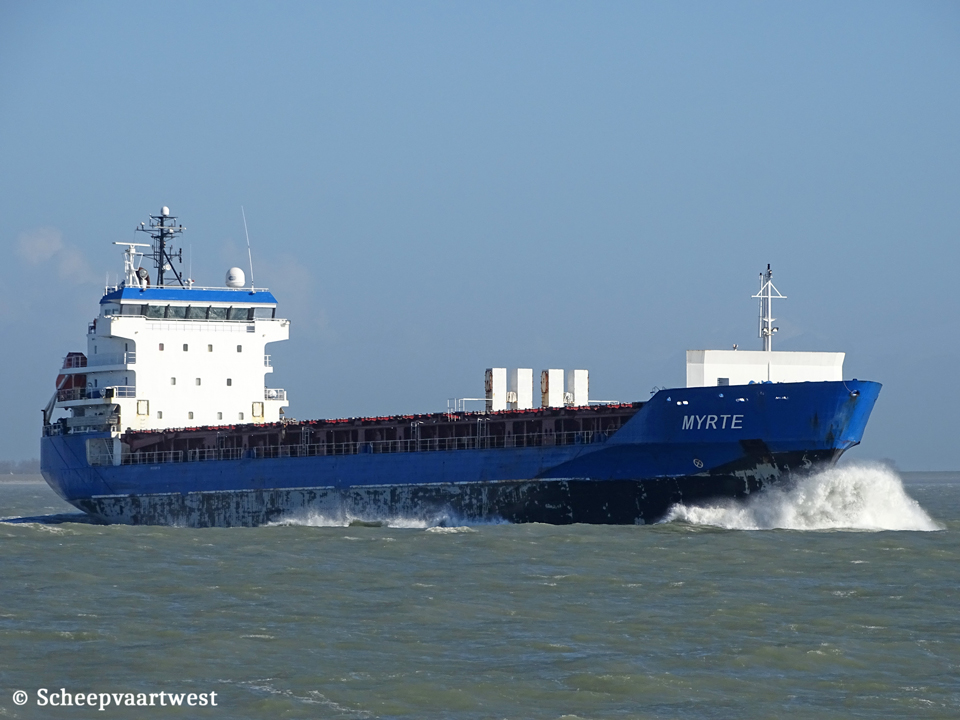

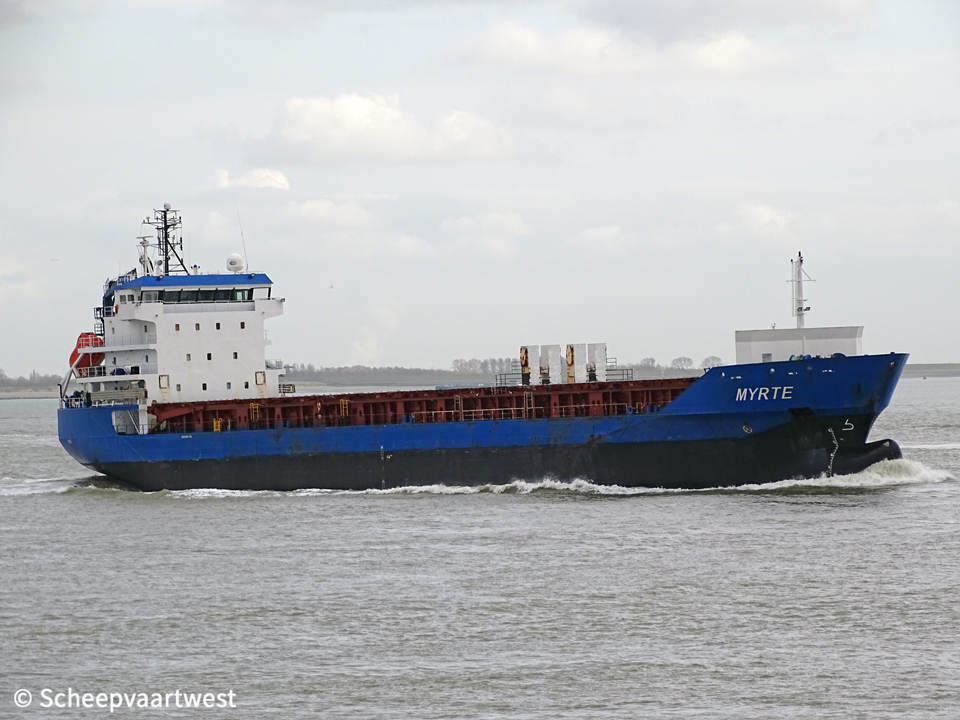

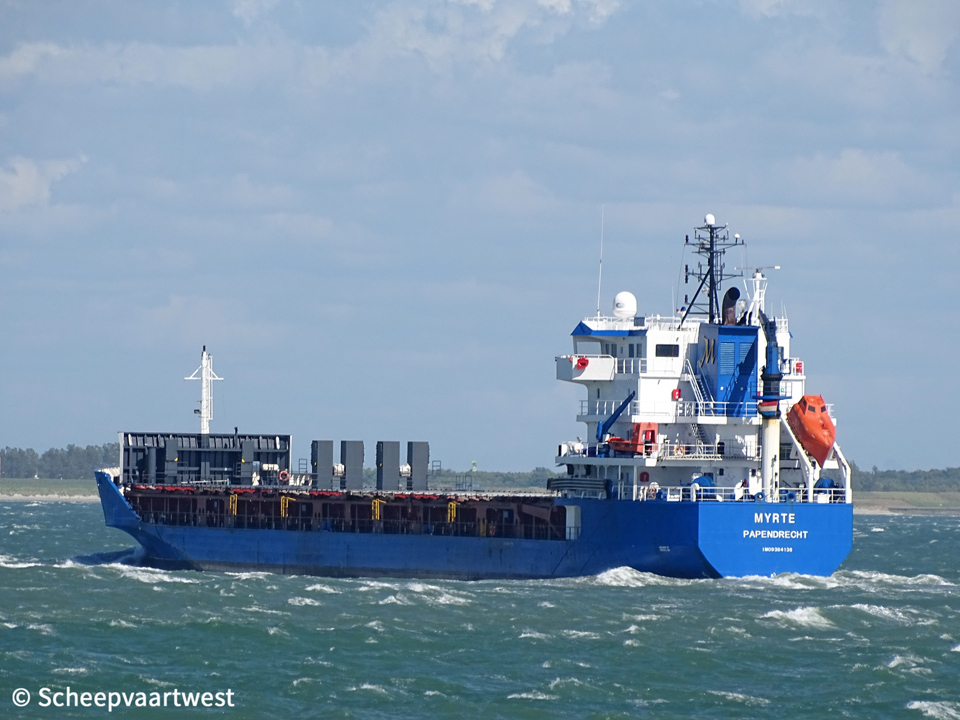

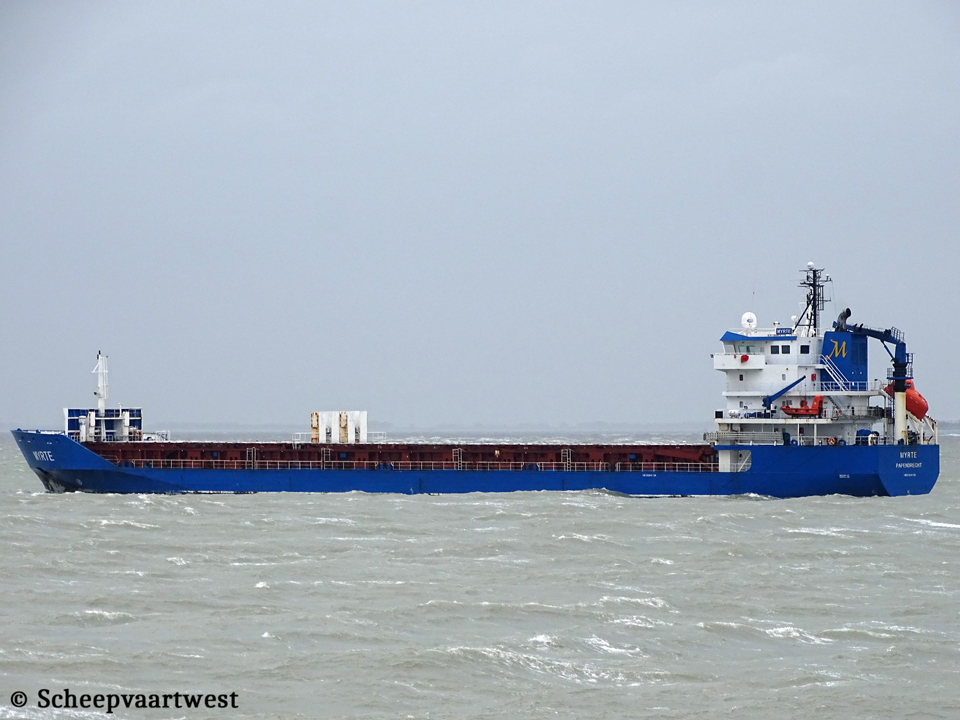

Myrte IMO 9364136 06   Myrte 03   Myrte 01   Myrte 02   Myrte 04   Myrte IMO 9364136 05
Westerschelde 13/03/19   Westerschelde 16/03/20 Westerschelde 11/01/17 Westerschelde 11/01/17 Westerschelde 05/07/20   Westerschelde 13/03/19

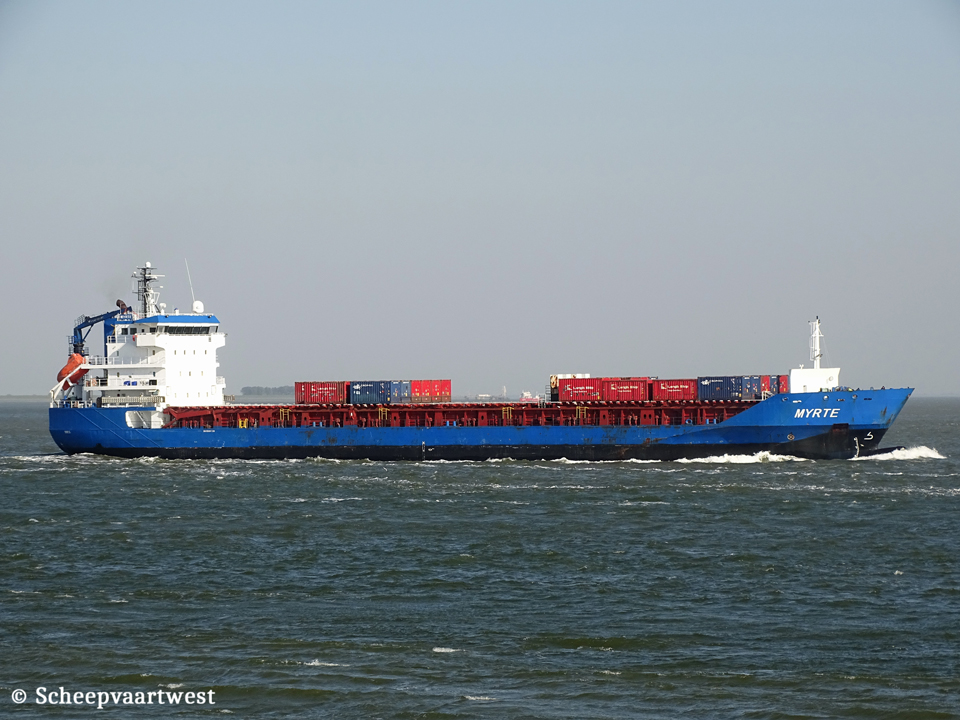

Myrte IMO 9364136 08
Westerschelde 21/04/20


Name

MYRTE

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9364136

Call sign

PBII

Flag

The Netherlands

Port of registry

Papendrecht

GT

6.046 t

DWT

Summer: 7.124,6 t

NT

2.959 t

Number of 20ft containers

In hold: 228

On deck: 192

Total: 480

Container capacity 14t

290

Reefer capacity

24

Length

122,04 m overall

115,37 m between perpendiculars

Breadth

16,50 m extreme

Draught

Max.: 7,36 m

Air draft

31,50 m in ballast

Depth

10,00 m moulded

Speed

11,0 - 14,0 knots loaded

12,0 - 15,0 knots ballast

Built

2008

Keel laid

26/06/2006

Launch date

21/06/2008

Date of completion

15/12/2008

Builder

Zhejiang Hongxin Shipbuilding Co., Ltd.

Ningbo

China

Yard number

HX2005-1

Hull material

Steel

Hull type

Single hull

Movable bulkheads

1x Moveable (hold: 2)

Continuous decks

1

Main engine

1x MaK 8M32C - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 3.945 kW / 5.364 hp at 600 rpm

Manufacturer: M.A.K. Caterpillar, Kiel - Germany

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired

1x Thermal oil heater, exhaust heated

Generators

2x MAN D2840LE301 main diesel generatorsets

Emergency generator

1x MAN D2866E20 diesel generatorset

Bow thruster

1x 440 kW

Number of holds

2

Hold 1: 27,30 x 13,50 x 11,00 m

Hold 2: 50,40 x 13,50 x 11,00 m

Cargo hold capacity

380.940 ft³ / 10.787 m³

Hold ventilation

6x per hour

Number of hatches

2

Hatch 1: 27,30 x 13,95 m

Hatch 2: 50,40 x 13,95 m

Type of hatch

McGregor folding

Tank capacities

Ballast: 3.178 m³

Max. permitted loads

Tanktop: 15,0 t/m²

Hatch cover: 2,4 t/m²

Tank capacities

Bunker: IFO 582 m³

Bunker: MGO 70 m³

Fresh water: 70 m³

Ballast water: 3.177 m³

Anchor equipment

Length: 495,00 m

Diameter: 46 mm

ISM & commercial manager

Sam Shipping V.o.F.

Kazernestraat 9

3351 AG Papendrecht

The Netherlands

Owner

C.V. Scheepvaartbedrijf Myrte

Papendrecht

The Netherlands

Registered owner

Myrte Shipping B.V.

Latest data adjustment

26 June 2022
