| Westerschelde 05 January 2017 |
|
Name |

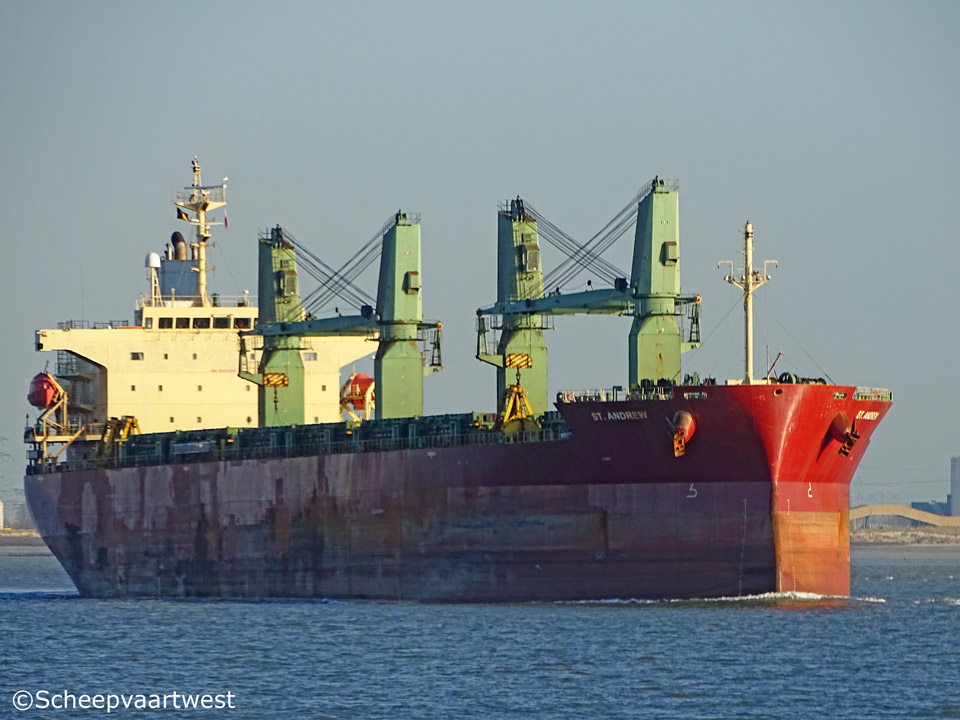

ST. ANDREW |
|
Previous names |
2006 - 02.2014 Sanko Mercury |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9401934 |
|
Call sign |
9HA3552 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
30.488 m registered |
|
DWT |
Summer: 50.792 t |
|
NT |
15.289 t registered |
|
Number of 20ft containers |
306 |
|
Number of 40ft containers |
153 |
|
Length |
189,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,26 m |
|
Moulded L x B x D |
186,00 x 32,26 x 17,31 m |
|
Registered L x B x D |
186,04 x 32,26 x 17,31 m |
|
Freeboard |
5.120 mm |
|
Depth |
17,31 m moulded |
|
Speed |
Max.: 17,01 knots 14,5 knots ballast |
|
Built |
2006 |
|
Keel laid |
11.04.2006 |
|
Launch date |
19.01.2010 |
|
Date of completion |
04.03.2010 |
|
Builder |
Oshima Shipbuilding Co., Ltd. |
|
Yard number |
10527 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x MAN-B&W-Kawasaki - 2 stroke single acting 5 cylinder 600 x 2.400 mm diesel engine 10.187 kW at 95,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 535 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler- 6,9 bar Evaporation: 3,01 t/h Manufacturer: Aalborg Industries Co.,Ltd. |
|
Generators |
3x Main diesel generatorsets each 525 kVA |
|
Number of holds |
8 |
|
Cargo hold capacity |
Bale:57.783 m³ Grain: 57.886 m³ |
|
Number of hatches |
8 Hatches 1 and 8: 14,00 x 19,00 m Hatches 2-7: 15,40 x 27,60 m |
|
Tank capacities |
Fuel oil: 2.603 m³ Fresh water: 414 m³ |
|
Cargo gear |
4x Cranes - SWL 40,0 t each |
|
Manager |
Eastern Mediterranean Maritime Ltd. Greece |
|
Registered owner |
Arendale Shipping Limited |
|
Latest data adjustment |
28 March 2017 |
