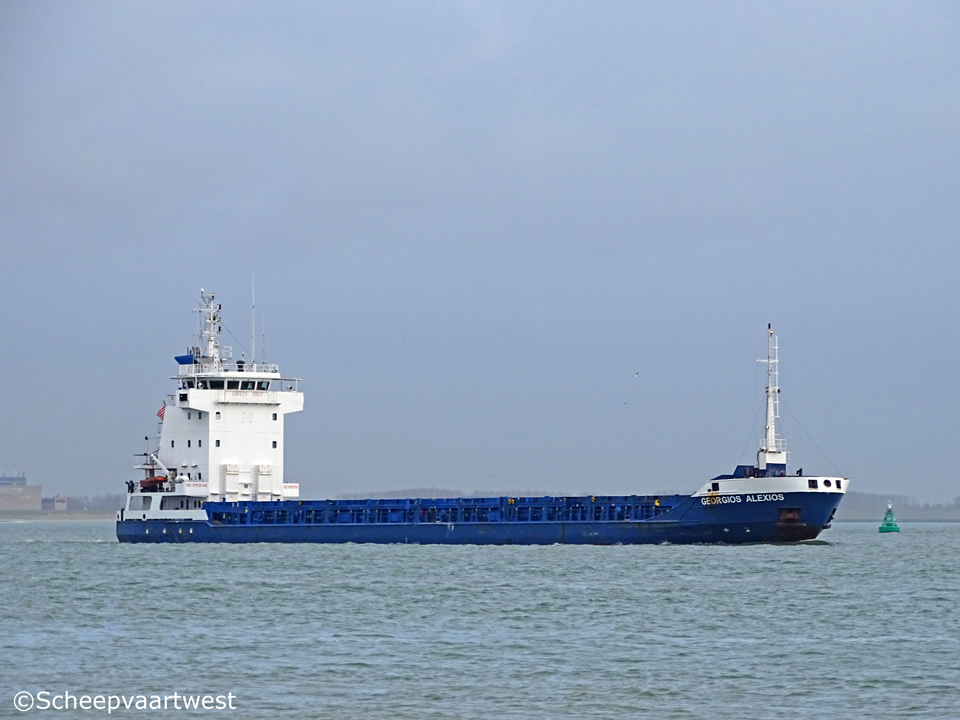

Westerschelde 10 January 2017 |
|
Name |
GEORGIOS ALEXIOS |
|
Previous names |
1999 - 04.2015 Memel |
|
Type |
General cargo ship |
|
IMO-number |
9192624 |
|
Call sign |
D5HZ9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
1999 - 2015 Antigua & Barbuda, St. John's - Call sign V2AO4 |
|
GT |
2.997 t registered |
|
DWT |
Summer: 4.439 t |
|
NT |
1.741 t registered |
|
Number of 20ft containers |
297 |
|
Container capacity 14t |
185 |
|
Reefer points |
30 |
|
Length |
99,90 m overall 95,30 m between perpendiculars 95,80 m registered |
|
Breadth |
12,80 m registered |
|
Draught |
5,67 m |
|
Air draft |
26,70 m |
|
Moulded L x B x D |
95,80 x 12,80 x 7,57 m |
|
Registered L x B x D |
95,80 x 12,80 x 7,55 m |
|
Forecastle |
6,80 m |
|
Poop |
15,94 m |
|
Freeboard |
1.898 mm |
|
Depth |
7,55 m registered |
|
Speed |
Max.: 12,5 knots Service: 10,5 knots |
|
Built |
1999 |
|
Keel laid |
23.04.1998 |
|
Launch date |
19.04.1999 |
|
Date of completion |
01.12.1999 |
|
Builder |
Slovenske Lodenice a.s. |
|
Yard number |
3021 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom |
|
Watertight bulkheads |
4 |
|
Movable bulkheads |
2x Movable, max. 3 compartments |
|
Continuous decks |
2 |
|
Main engine |
1x Duetz MWM TBD 645L6 - 4 stroke 6 cylinder 330 x 450 mm diesel engine - 2.550 kW / 3.467 bhp at 600 rpm Reduced power: 1.275 kW Year of manufacture: 1998 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG |
|
Propller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 265 mm |
|
Propellers |
1x Controllable pitch propeller - aft at 304 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar Year of manufacture: 1998 |
|
Electric installations |
2x Plants each 380/220 V - 210 kVA 1x Plant 380 V - 844 kVA 1x Plant 380 V - 49 kVA |
|
Shaft generator |
1x 844 kVA |
|
Generators |
2x Main diesel generatorsets each 210 kVA |
|
Emergency generator |
1x Diesel generatorset 49 kVA |
|
Compressed air receivers |
2x Receivers each 355 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 220 kW, forward |
|
Number of holds |
1 70,85 x 10,20 x 8,17 m |
|
Cargo hold capacity |
Bales & Grain: 5.841 m³ / 208.000 ft³ |
|
Number of hatches |
2 Hatch 1-2: 37,95 x 31,25 x 10,20 m |
|
Hatch type |
Folding hatch covers with hydraulic opening system |
|
Strength |
Tanktop: 15,0 t/m² Hatch cover: 1,7 t/m² |
|
Ventilation |
6x Air-changes per hour (basis empty hold) |
|
Tank capacities |
Fuel oil: 240 m³ Luboil: 10 m³ Freshwater: 52 m³ Water ballast: 1.520 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440.00 m |
|
Manager |
Nearchos Shipmanagement Co. |
|
Registered owner |
Kateli Shipping Inc. |
|
Previous names & owners |
1999 - 2015 Memel - Bojen Schiffahrtsbetrieb GmbH & Co. KG, 26802 Moormerland-Neermoor - Federal Republic of German |
|
Latest data adjustment |
28 March 2017 |
