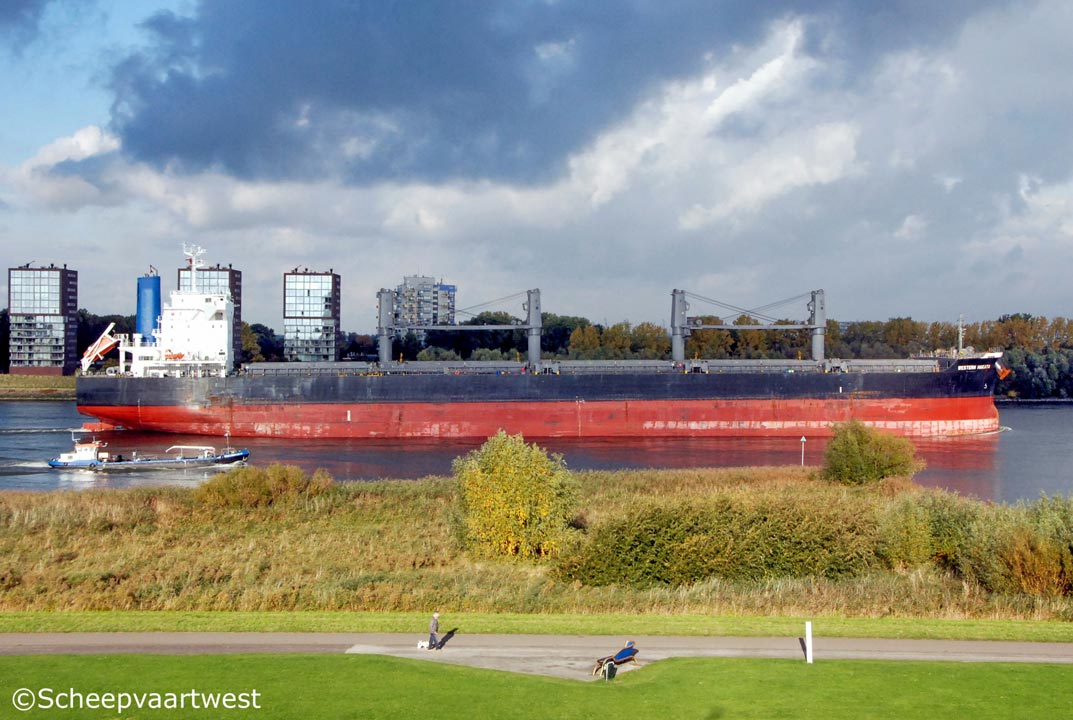

Western Hakata 01
Spijkenisse 21 October 2016



Name

Western Hakata

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9650925

Call sign

3FAH6

Flag

Republic of Panama

Port of registry

Panama City

GT

34.815 t registered

DWT

Summer: 61.353 t

NT

20.209 t registered

Length

199,98 m overall

Breadth

32,24 m moulded

Draught

Summer: 13,01 m

Moulded L x B x D

195,00 x 32,24 x 18,60 m

Registered L x B x D

195,39 x 32,24 x 18,60 m

Freeboard

5.640 mm

Depth

18,60 m moulded

Speed

15,8 knots

Built

2014

Keel laid

22.07.2013

Launch date

27.01.2014

Date of completion

18.03.2014

Builder

Imabari Shipbuilding Co., Ltd.

Imabari

Japan

Yard number

810

Hull material

Steel

Main engine

1x 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine 8.260 kW at 108,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 500 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 2,53 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators - 1.965 kVA

Cargo hold capacity

Bale: 73.551 m³

Grain: 77.674 m³

Tank capacities

Fuel oil: 2.565 m³

Fresh water: 669 m³

Renamed

2017 Eternal Hakata - Republic of Panama, Panama City - Call sign: 3FAH6

Registered Owner: Ambitious Line, S.A.

Manager: Shikishima Kisen K.K.

Latest data adjustment

13 March 2017
