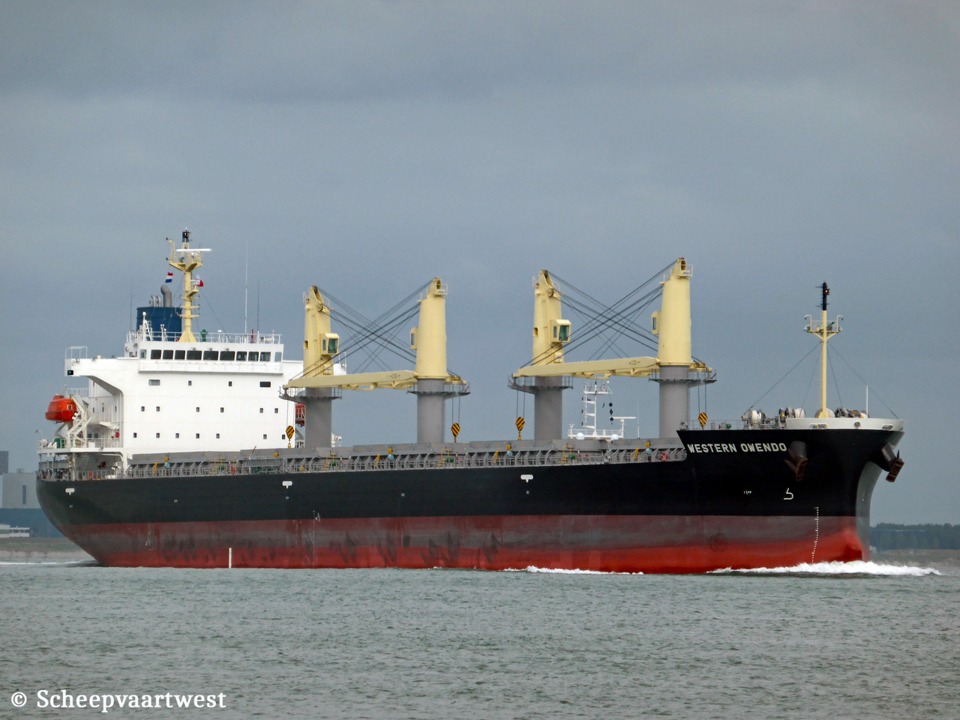

Westerschelde 23 June 2015 |
 |
|

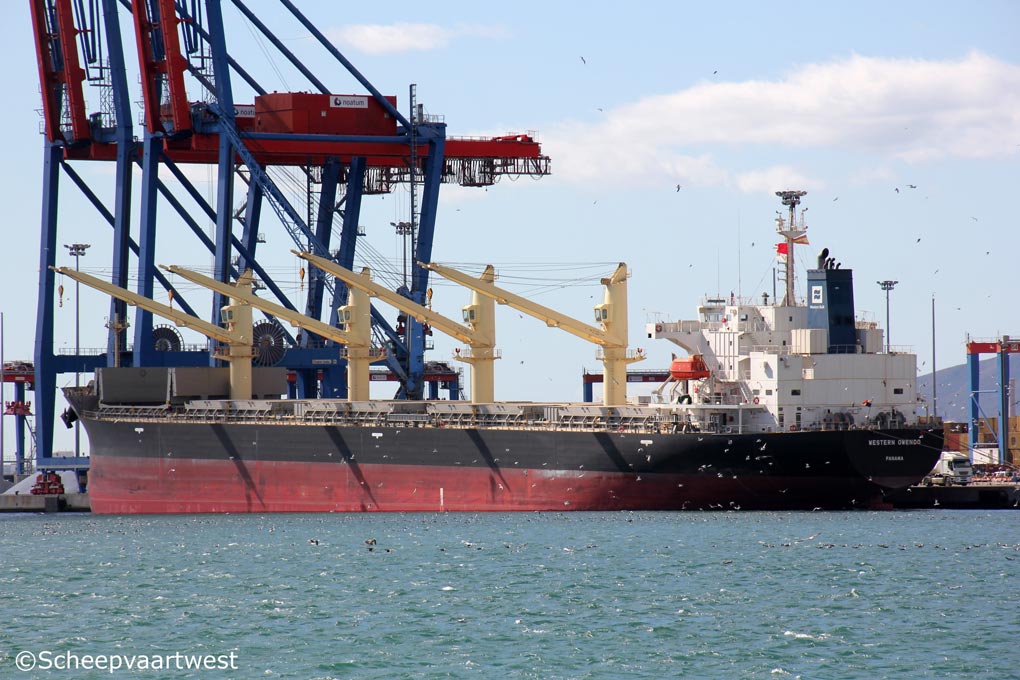

| Malaga; Spain 25/02/16 | |
|
Name |
WESTERN OWENDO |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9687136 |
|
Call sign |
3EMH4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
22.385 t registered |
|
DWT |
37.614 t |
|
NT |
12.178 t registered |
|
Length |
179,99 overall |
|
Breadth |
30,00 m moulded |
|
Draught |
Summer: 10,33 m |
|
Moulded L x B x D |
175,60 x 30,00 x 14,63 m |
|
Registered L x B x D |
175,77 x 30,00 x 14,63 m |
|
Freeboard |
4.352 mm |
|
Depth |
14,63 m moulded |
|
Speed |
Max: 15,5 knots Service: 14,0 knots |
|
Built |
2015 |
|
Keel laid |
26/01/2015 |
|
Launch date |
03/03/2015 |
|
Date of completion |
03/04/2015 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Nagasaki Japan |
|
Yard number |
10709 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 5S60MC-C8 - 2 stroke single acting 5 cylinder 500 x 2.000 mm combustion engine 5.650 kW / 7.681 hp at 108,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 420 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 1,82 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 1.975 kVA |
|
Number of holds |
5 |
|
Hold capacity |
Bale: 46.436 m³ Grain: 46.834 m³ |
|
Tank capacities |
Fuel oil: 1.521 m³ Fresh water: 256 m³ Water ballast: 14.769 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Manager |
New Century Overseas Management, Inc. |
|
Operator |
Western Bulk Henrik Ibsensgt. 100 Oslo Norway |
|
Registered owner |
Berlian Maritime Steamship Inc. for Orix Maritime Corp. Japan |
|
Renamed |
2018 - 2021 Yuna Orchid Republic of Panama; Panama City - Call sign: 3EMH4 2021 Unity North Bahamas, Nassau - Call sign: C6FC5 Owner: Unity North Ltd. Manager: Unity Ship Management Ltd., London - United Kingdom |
|
Latest data adjustment |
22 September 2023 |
