Westerschelde 02 April 2012 |
|
Name |

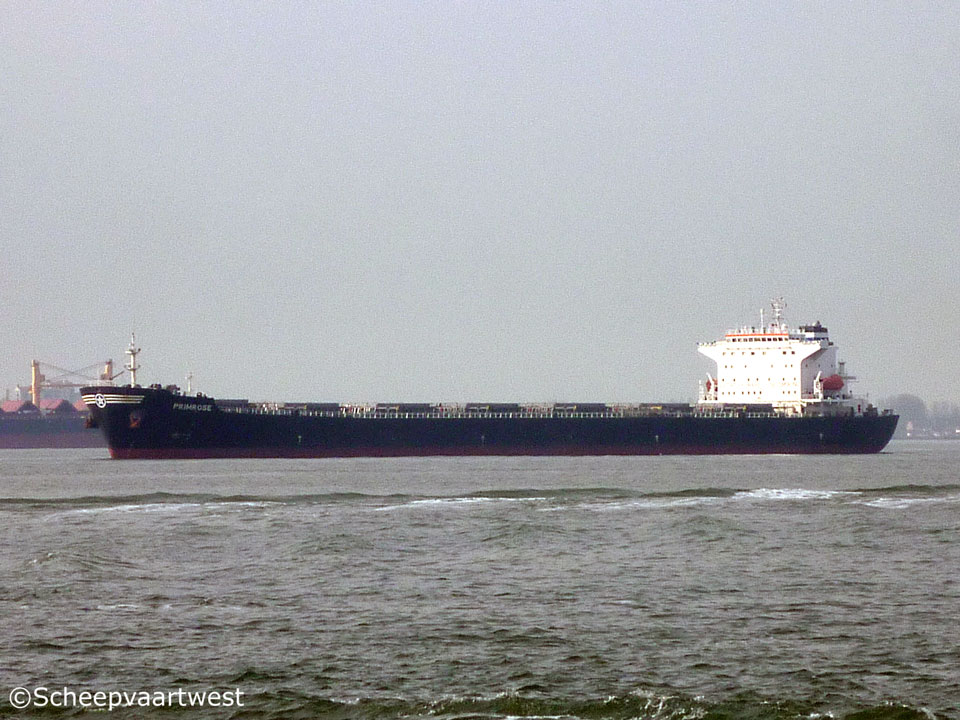

PRIMROSE |
|
Type |
Bulk carrier |
|
IMO-number |
9248899 |
|
Call sign |
IBXN |
|
Flag |
Italy |
|
Port of registry |
Napoli |
|
GT |
40.562 t |
|
DWT |
Summer: 74.716 t |
|
Length |
224,00 m |
|
Breadth |
32,26 m |
|
Draught |
14,70 m |
|
Depth |
14,30 m |
|
Speed |
Max.: 14,5 knots |
|
Built |
2001 |
|
Builder |
Hudong Zhonghua Shipbuilding Group |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 9 |
|
Continuous decks |
1 |
|
Main engine |
1x Hudong/ MAN B&W 5S60MC-C - 2 stroke 5 cylinder 600 x 2.400 mm diesel engine 9.690 kW / 13.166 hp at 101 rpm |
|
Propellers |
1x Screw propeller solid - aft at 101 rpm |
|
Boilers |
1x CHM Aalborg 269,00 m² - 7,0 bar |
|
Shaft generator |
1x 813 kVA / 650 kW |
|
Generators |
2x Yanmar 6N18(A)L-SN diesel generatorsets each - 663 kVA - 530 kW - 720 hp |
|
Number of holds |
7 Hold dim. (hold no: clear length / breadth height): Hold 1: 27,88 x 32,22 x 16,76 m Hold 2: 30,26 x 32,22 x 16,72 m Hold 3: 28,62 x 32,22 x 16,72 m Hold 4: 30,26 x 32,22 x 16,72 m Hold 5: 28,62 x 32,22 x 16,72 m Hold 6: 30,26 x 32,22 x 16,72 m Hold 7: 28,62 x 32,22 x 16,72 m |
|
Hold capacity |
Hold 1: 11.305,4 m³ Hold 2: 13.536,9 m³ Hold 3: 13.548,7 m³ Hold 4: 13.548,7 m³ Hold 5: 13.548,7 m³ Hold 6: 13.548,7 m³ Hold 7: 12.860,2 m³ Total: 91.717,3 m³ |
|
Number of hatches |
7 Size (L X B ) and height + coaming breadth height: Hatch 1: 18,86 x 18,26 x 0,90 + 1,82 m Hatch 2: 21,32 x 18,26 x 0,90 + 1,82 m Hatch 3: 21,32 x 18,26 x 0,90 + 1,82 m Hatch 4: 21,32 x 18,26 x 0,90 + 1,82 m Hatch 5: 21,32 x 18,26 x 0,90 + 1,82 m Hatch 6: 21,32 x 18,26 x 0,90 + 1,82 m Hatch 7: 21,32 x 18,26 x 0,90 + 1,82 m |
|
Tank capacities |
Fuel oil: 4.827,8 m³ Ballast: 34.510,6 m³ |
|
Crew size |
30 |
|
Manager |
Clipper Bulk A/S |
|
Owner |
d'Amato Navigazione SpA |
|
Scrapped |
2016 |
|
Latest data adjustment |
09 February 2017 |
