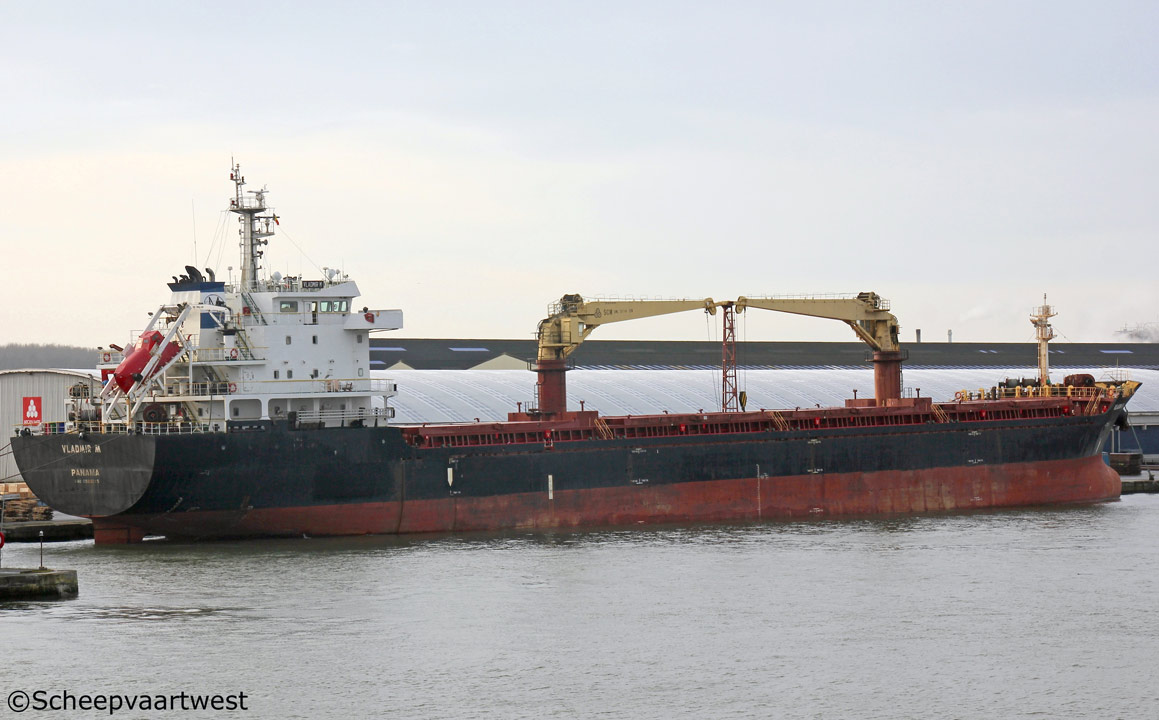

Vladmir M 01

Antwerpen 23 December 2016



Name

VLADMIR M

Previous names

2010 - 06.2011 Tanya

Type

Bulk carrier

IMO-number

9585015

Call sign

HP5468

Flag

Republic of Panama

Port of registry

Panama City

GT

8.887 t registered

DWT

12.824 t

NT

4.507 t registered

Length

138,60 m overall

Breadth

20,40 m moulded

Draught

Summer: 7,91 m

Moulded L x B x D

129,80 x 20,40 x 11,00 m

Registered L x B x D

130,11 x 20,40 x 11,00 m

Freeboard

3.118 mm

Depth

11,00 m moulded

Speed

Max.: 15,9 knots

Built

2010

Keel laid

21.01.2009

Date of completion

15.12.2010

Builder

Zhoushan Penglai Ship Building & Repairing Co.,Ltd.
China

Yard number

PL0709

Hull material

Steel

Main engine

1x Wärtsilä 6L38 - 4 stroke single acting 6 cylinder 380 x 475 mm diesel engine 4.050 kW at 600 rpm

Manufacturer: Wärtsilä Finland Oy/ Wärtsilä Italia S.p.A.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 430 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 1,90 t/h

Manufacturer: JiangYin Sanjie Industry Co., Ltd.

Emergency generator

4x Generators - 1.375 kVA

Cargo hold capacity

Grain: 16.759,32 m³

Tank capacities

Fuel oil: 620,63 m³

Fresh water: 173,31 m³

Manager

Norfes - Marine Services Co., Ltd.
Pogranichnaya St. 15 V
Vladivostok, 690091
Russia.

Registered owner

Zircon Holding & Finance Inc.

Latest data adjustment

05 January 2017
