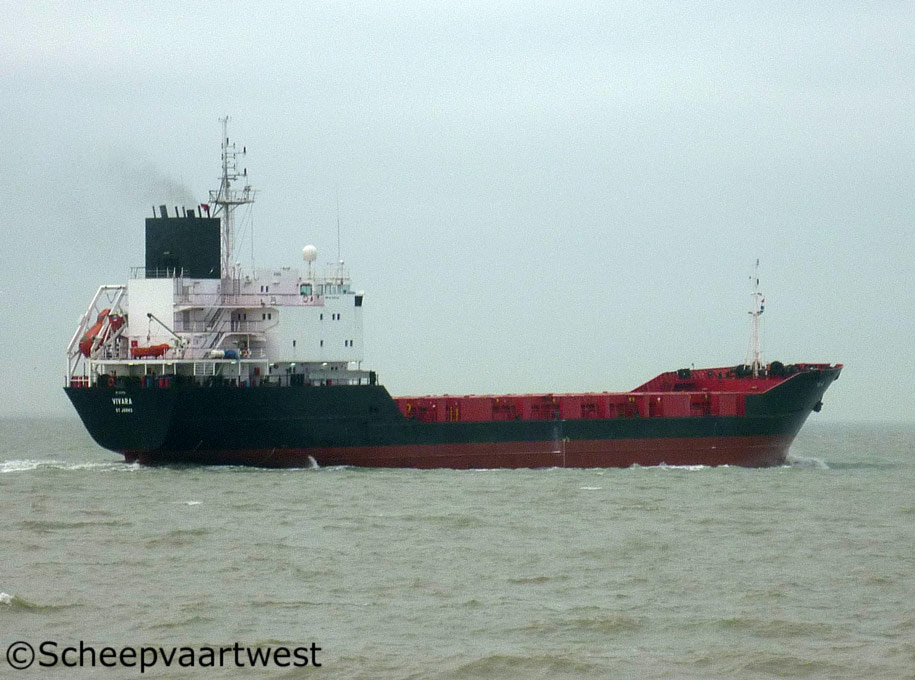

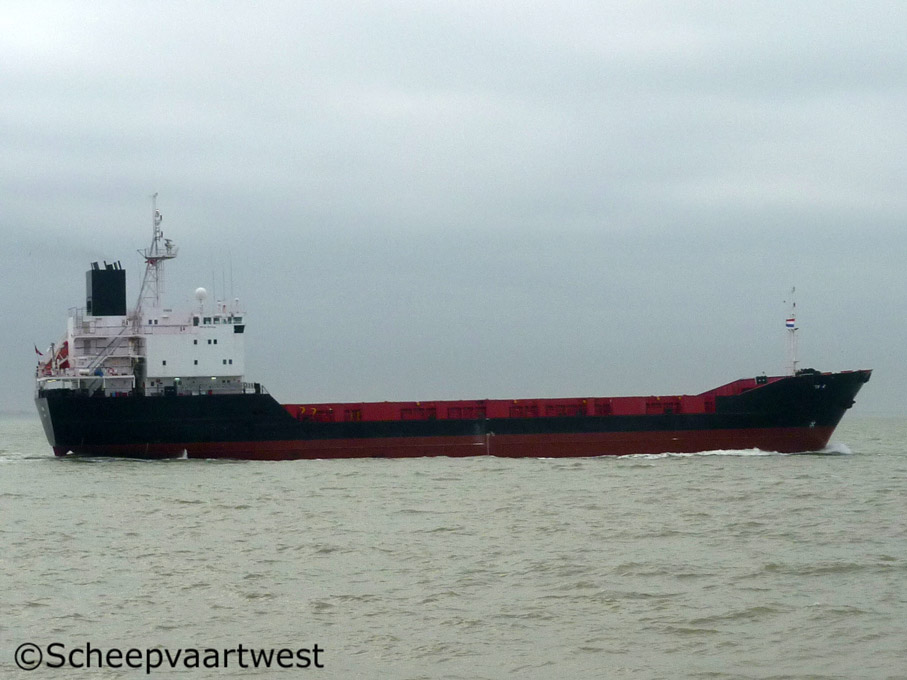

| Westerschelde 22 december 2011 |
 |
| Westerschelde 22/12/11 |
|
Name |
VIVARA |
|
Previous names |
2000 Moksheim 2008 OMG Kolpino - Vyborg Shg. Co. Ltd. - Marshall Islands |
|
Type |
General cargo ship - heavy cargo - equipped for carriage of containers |
|
IMO-number |
9203708 |
|
Call sign |
V4MF2 |
|
Flag |
Saint Kitts and Nevis |
|
Previous flag |
Malta |
|
Port of registry |
Basseterre |
|
GT |
5.659 t |
|
DWT |
6.847 t |
|
NT |
2.363 t |
|
Number of 20ft containers |
342 |
|
Length |
109,44 m overall 100,81 m between perpendiculars |
|
Breadth |
17,80 m |
|
Draught |
7,04 m |
|
Air draft |
38,30 m |
|
Freeboard |
1.972 mm |
|
Depth |
9,00 m |
|
Speed |
12,5 knots |
|
Built |
2000 |
|
Date of completion |
03.2000 |
|
Builder |
Severnoe Design Bureau Saint-Petersburg |
|
Yard number |
437 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x B&W 6L35MC - 2 stroke 6 cylinder 350 x 1.050 mm diesel engine - 3.360 kW / 4.569 bhp at 200 rpm Builder: Bryansk engine works - Russia |
|
Propelling system |
1x Screw propeller solid - at 200 rpm |
|
Boilers |
1x CHM Clayton 113,70 m² - 9,0 bar |
|
Diesel generators |
3x Main diesel generatorsets each 400 kVA - 320 kW - 435 hp |
|
Emergency generator |
1x Diesel generatorset 270 kVA - 216 kW - 293 hp |
|
Number of holds |
3 Hold 1: 12,78 (13,30) x 12,70 x 9,35 m Hold 2: 25,10 (26,25) x 13,73 x 9,35 m Hold 3: 25,38 (26,00) x 13,73 x 9,35 m |
|
Total capacity of holds |
Hold 1: 1.310,9 m³ Hold 2: 3.253,7 m³ Hold 3: 3.294,4 m³ Total: 7.859,0 m³ |
|
Hatches |
3 MCGregor Folding Hatchcovers |
|
Strength |
Tanktop: 13,5 t/m² |
|
Fuel capacity |
2.402,82 m³ |
|
Manager |
Nautilus Shipping & Trading Group |
|
Owner |
Nautilus Shipping & Trading Group |
|
Registered owner |
New Marine Technologies Group Ltd. |
