Westerschelde 31 May 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Vlissingen 08/12/18 | Vlissingen 07/12/16 | Vlissingen 07/12/16 | Vlissingen 07/12/16 | Vlissingen 15/07/17 | Vlissingen 15/07/17 | |||||
|
Name |

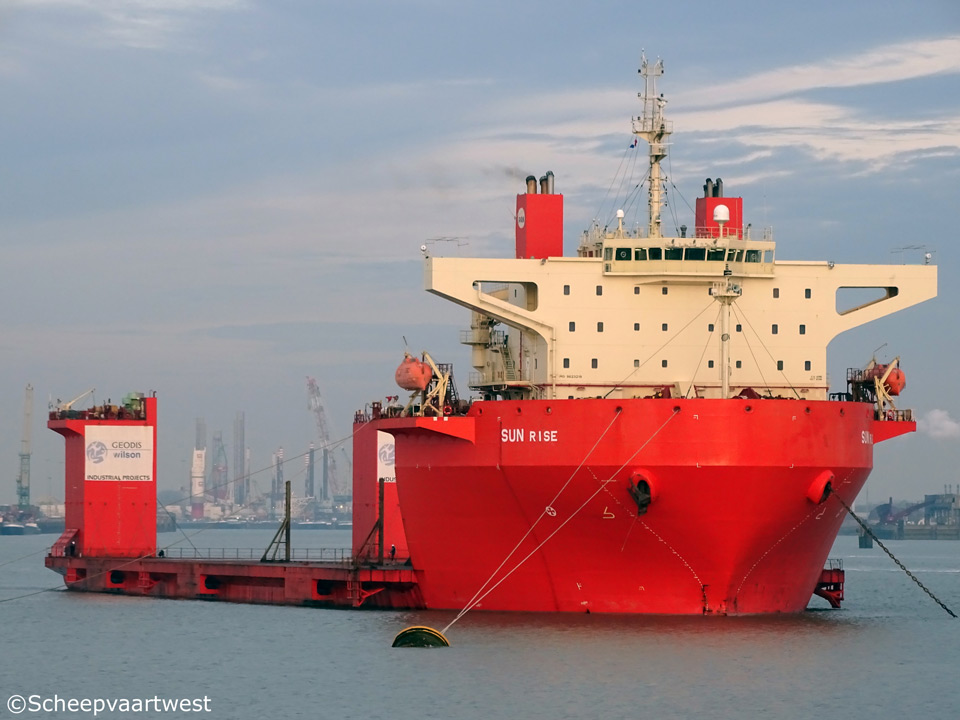

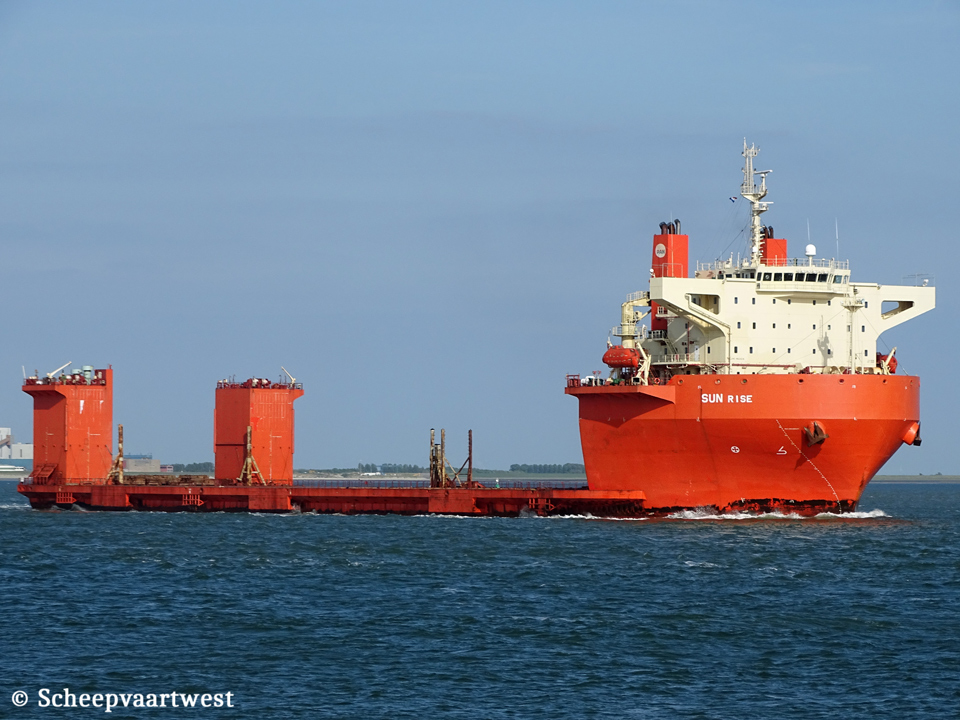

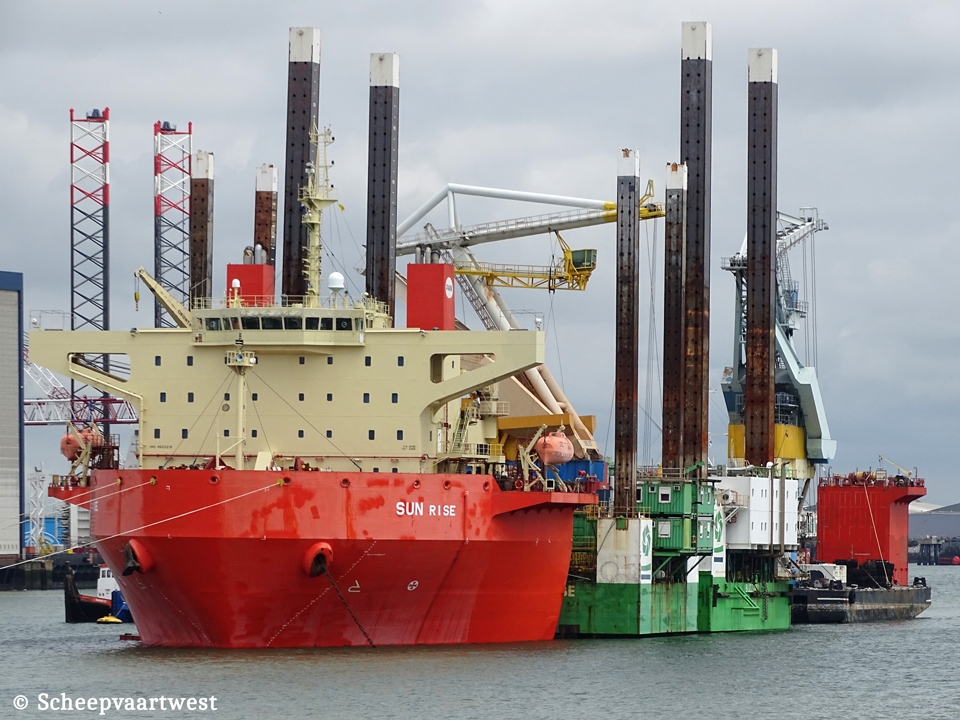

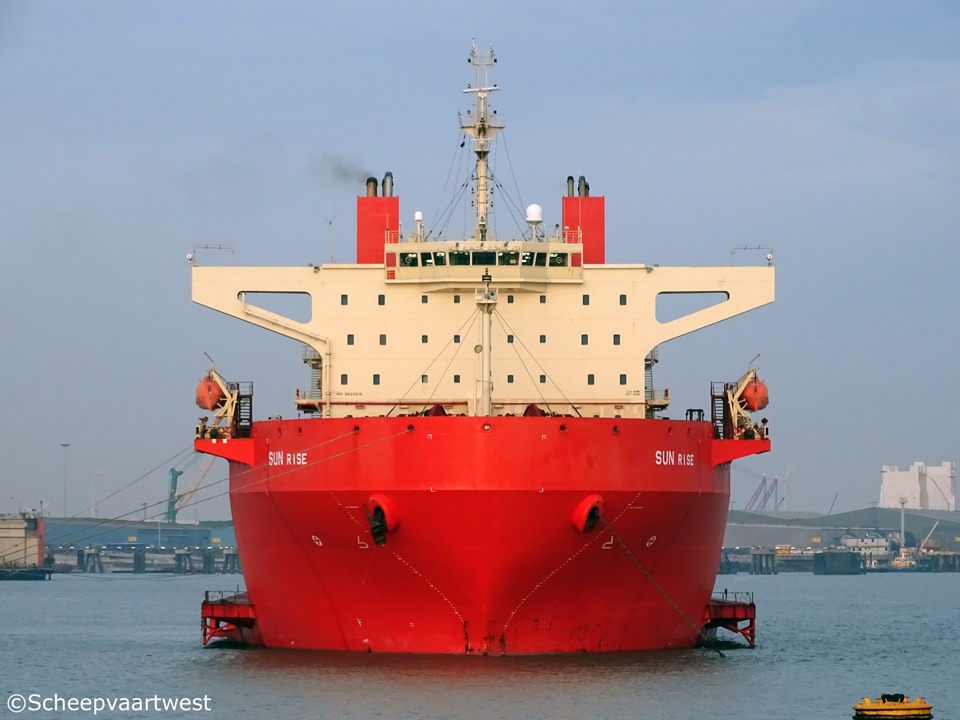

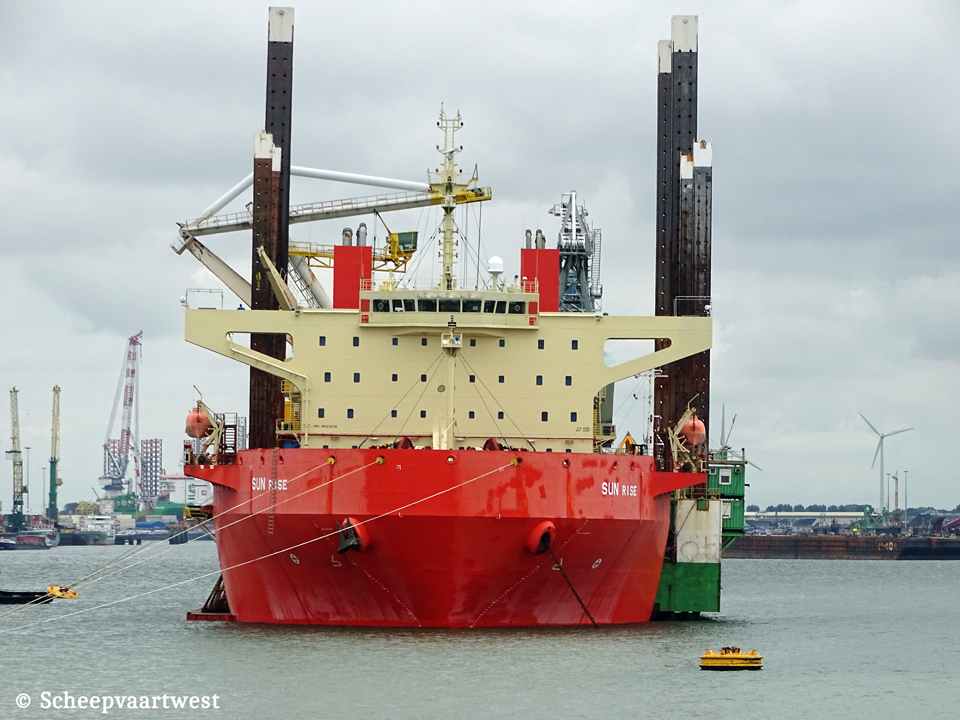

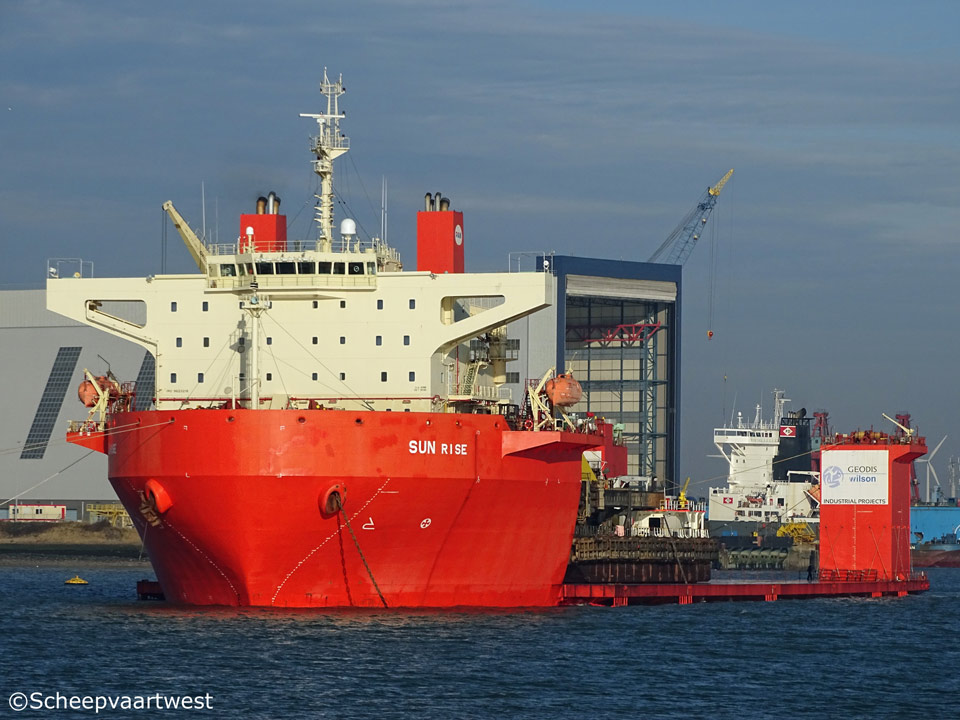

SUN RISE |
|
Korean name |
선 라이즈 |
|
Previous names |
2012 - 07/2013 STX Rose 2 |
|
Type |
Self-propelled semi-submersible heavy load carrier |
|
IMO-number |
9623219 |
|
Previous classification |
DNV GL |
|
Call sign |
D7GU |
|
Flag |
South Korea |
|
Port of registry |
Jeju |
|
Previous flags |
2012 - 10/2022 Marshall Islands, Majuro - V7ZD3 |
|
GT |
22.499 t |
|
DWT |
Summer: 24.629 t |
|
NT |
6.547 t |
|
Length |
168,50 m overall 158,00 m between perpendiculars |
|
Breadth |
40,00 m 44,00 m with sponson |
|
Draught |
7,12 m 17,80 m submerged |
|
Reg. Dimensions L x B x D |
158,14 x 40,00 x 10,30 m |
|
Rule Dimensions L x B x D |
158,00 x 40,00 x 10,30 m |
|
Freeboard |
2.700 mm |
|
Depth |
10,30 m to main deck |
|
Speed |
13,0 knots |
|
Built |
2012 |
|
Keel laid |
09/08/2011 |
|
Launch date |
29/03/2012 |
|
Date of completion |
31/10/2012 |
|
Builder |
STX (Dalian) Shipbuilding Co., Ltd. Dalian China |
|
Yard number |
D2101 |
|
Hull material |
Steel |
|
Watertight bulkheads |
Transverse: 10 |
|
Continuous decks |
1 |
|
Main engine |
3x STX/MAN-B&W 8L32/40 - 4 stroke 8 cylinder combustion engine 320 x 400 mm 9.000 kW / 12.237 hp at 720 rpm Built: 08.2011 Builder: STX Engine Co., Ltd., Changwon - South Korea |
|
Propellers |
2 |
|
Boilers |
1x Auxiliary water tube boiler - 8,8 bar Heating surface: 21,6 m² 1x Economizer EGE - 11,8 bar Heating surface: 36,0 bar Built: 06/2011 Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
6x Generators - 4.289 kVA -6.600 Volt |
|
Deck space |
134,00 x 44,44 m |
|
Tank capacities |
Fuel oil: 2.163,7 m³ Fresh water: 322,8 m³ Water ballast: 4.881,9 m³ |
|
Commerical manager |
Pan Ocean Co., Ltd. Tower8, 7, Jong-ro 5 gil, Jongno-gu Seoul, 03157 South Korea |
|
Technical manager |
POS SM Co., Ltd. 4th Floor, Pan Ocean Busan Building 102, Jungang-daero, Jung-gu Busan, 48938 South Korea |
|
Registered owner |
Pan Ocean Co., Ltd. Tower8, 7, Jong-ro 5 gil, Jongno-gu Seoul, 03157 South Korea |
|
Latest data adjustment |
19 June 2023 |
