Antwerpen 01 September 2016 |
 |
| Antwerpen 30/01/18 |
|
Name |

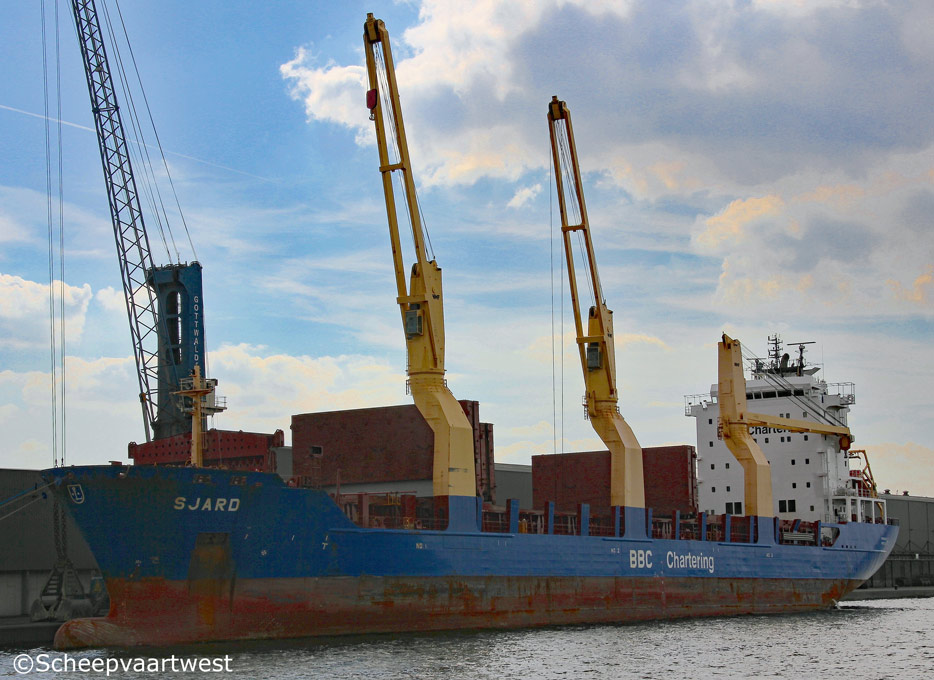

SJARD |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of container - Strengthened for heavy cargo Tweendecker |
|
IMO-number |
9303314 |
|
Call sign |
V2CV8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
12.936 t |
|
DWT |
Summer: 17.305,3 t |
|
NT |
5.824 t |
|
Number of 20ft containers |
In hold: 408 On deck: 550 Total: 958 |
|
Number of 40ft containers |
In hold: 193 + 22 TEU On deck: 225 + 100 TEU Total: 418 + 122 TEU |
|
Container capacity 14t |
617 |
|
Reefer plugs |
60 |
|
Length |
143,14 m overall 134,43 m between perpendiculars |
|
Breadth |
23,13 m extreme 22,80 m moulded |
|
Draught |
Max.: 9,70 m |
|
Height above keel |
41,40 m |
|
Depth |
13,30 m |
|
Speed |
15,0 knots |
|
Built |
2007 |
|
Keel laid |
22.04.2007 |
|
Launch date |
08.07.2007 |
|
Date of completion |
18.09.2007 |
|
Builder |
Tianjin Xingang Shipyard |
|
Yard number |
SB 355-6 |
|
Hull material |
Steel |
|
Bulkheads |
Following no. of panels can be used as transversal bulkheads: cargo hold no. 2 (6 pontoons) with 3 locations cargo hold no. 3 (4 pontoons) with 1 location operated by vessels gear |
|
Main engine |
1x MAN 6S46MC-C - 6 cylinder diesel engine 7.074 kW at 129 rpm |
|
Propellers |
1x Four bladed fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x Yanmar 6N18AL-EV main diesel generatorsets each 600 kW |
|
Emergency generator |
1x MAN D0824 LE 201 diesel generatorset 85 kW |
|
Bow thruster |
1x 700 kW |
|
Number of holds |
3 Hold 1: 22,50 x 13,20 x 11,70 m, boxshaped Hold 2: 42,20 x 18,60 x 13,80 m, boxshaped Hold 3: 28,10 x 18,60 x 13,80 m, boxshaped No. 2,3 with two operation levels of tweendeck: Level 1 / Level 2 upper hold height: abt. 8,20 m / 5,90 m lower hold height: abt. 4,60 m / 6,90 m |
|
Cargo hold capacity |
Grain/ bale space: 21.697 m³ / 766.222 ft³ |
|
Floor space |
Under deck: 3.184 m² / 34.276 m² On deck: 1.480 m² / 15.930 m² |
|
Hold ventilation |
Hold 1: 15 times / hour Hold 2-3: 6 times / hour |
|
Number of hatches |
3 Hatch 1: 20,50 x 13,20 m Hatch 2: 38,80 x 18,60 m Hatch 3: 26,20 x 18,60 m |
|
Hatches type |
3x Hatches are fitted with hydraulic operated folding hatch covers, can be partly disconnected |
|
Tank capacities |
IFO: 1.526 m³ MGO: 145 m³ Ballast: 5.670 m³ Freshwater.: 335 m³ |
|
Max. permitted loads |
Tanktop: 20,0 t/m² Tweendeck: 4,7 t/m² On deck: 2,2 t/m² |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Cargo gear |
3x NMF cranes - SWL 80 t each Combinable: 160 t Situated: portside |
|
Accommodation |
20 persons, 20 cabins |
|
Manager |
Briese Schiffahrts GmbH & Co. KG |
|
Operator |
BBC Chartering GmbH |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "SJARD" |
|
Latest data adjustment |
27 September 2016 |
