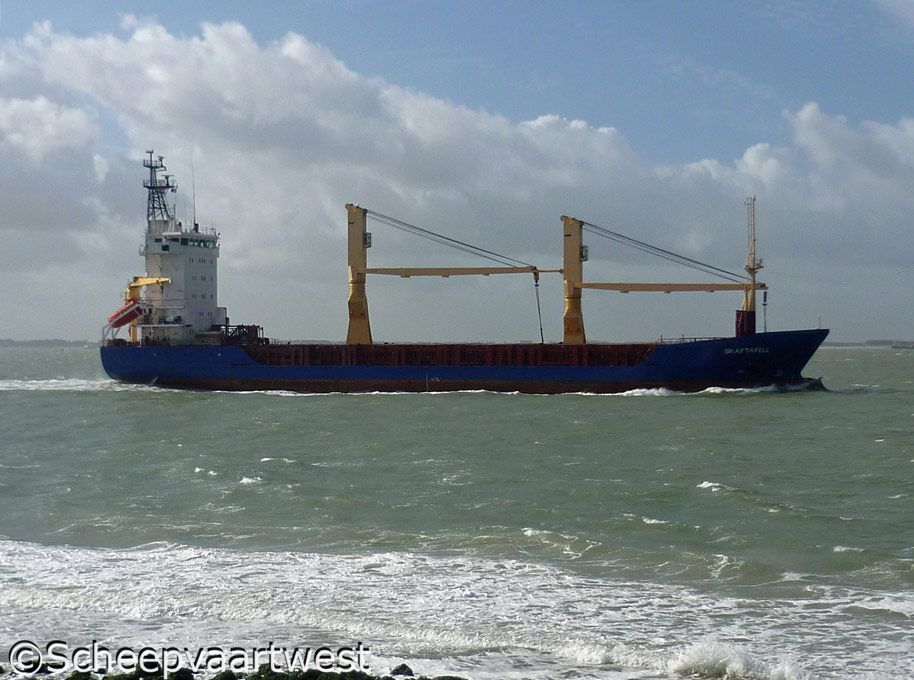

| Westerschelde 13 September 2011 |
 |

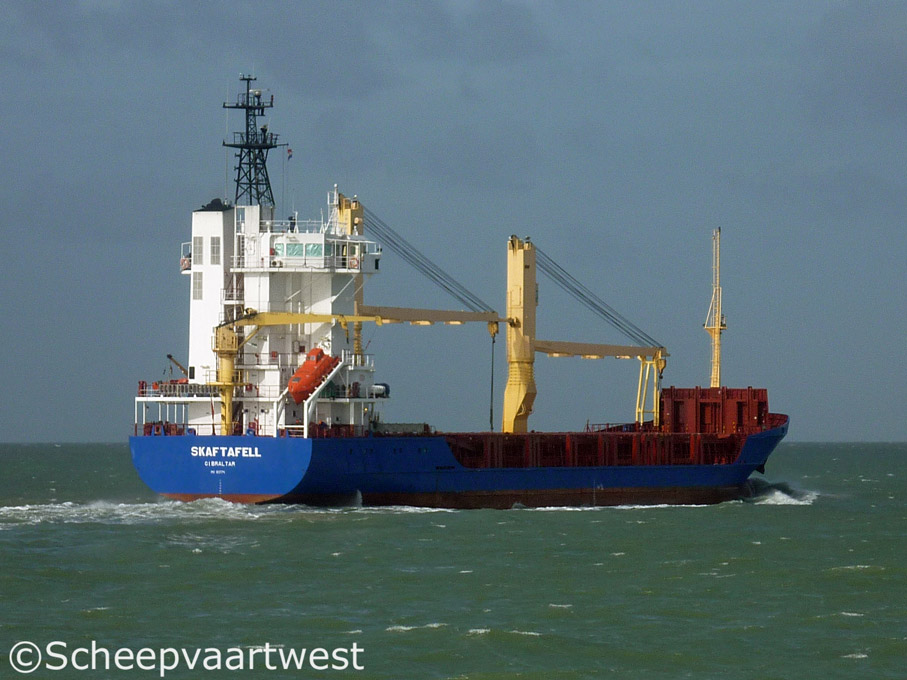

| Westerschelde 13/09/11 |
|
Name |
SKAFTAFELL |
|
Previous names |
13.05.1997 Torum 14.08.2000 Industrial Harmony 25.01.2003 BBC Brazil 14.09.2003 Brake 24.01.2004 BBC Brazil |
|
Type |
Multi-purpose cargo ship - Tweendeck Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9137741 |
|
Call sign |
ZDFR5 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
4.078 t |
|
DWT |
4.900 t |
|
NT |
2.009 t |
|
Number of 20ft containers |
On deck: 229 In hold: 127 Total: 356 |
|
Container capacity 14t |
211 |
|
Reefer plugs |
60 on deck + in hold |
|
Length |
101,32 m overall 93,95 m registered |
|
Breadth |
16,60 m registered |
|
Draught |
6,408 m |
|
Forecastle |
8,848 m |
|
Poop |
17,505 m |
|
Depth |
8,11 m moulded |
|
Speed |
15,0 knots |
|
Built |
1997 |
|
Keel laid |
20.08.1996 |
|
Launch date |
30.01.1997 |
|
Date of completion |
05.1997 |
|
Builder |
Remontowa Shipbuilding S.A. |
|
Yard number |
B196-II/3 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Partly double bottom |
|
Watertight bulkheads |
2x Movable, can be placed in 3 positions |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 9 L 32/40 - 4 stroke 9 cylinder 320 x 400 mm diesel engine - 3.960 kW at 750 rpm Reduced power: 3.480 kW Year of manufacture: 1996 Manufacturer: MAN B&W Diesel GmbH |
|
Propeller |
1x Controllable pitch propeller - aft at 135 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 34,7 m² Year of manufacture: 1996 Manufacturer: Apparate- und Kesselbau AKB GmbH 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 131,0 m² Year of manufacture: 1996 Manufacturer: W.L. Feenstra |
|
Electric installations |
1x Plant 380/220 V - 445 kVA 1x Plant 380/220 V - 445 kVA 1x Plant 380 V - 800 kVA 1x Plant 380 V - 195 kVA |
|
Shaft generator |
1x 800 kVA / 640 kW |
|
Diesel generators |
2x MAN D 2842 LE diesel generatorsets each 445 kVA |
|
Emergency generator |
1x MAN D 2886 TE diesel generatorset 195 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 1.000 litres - 10,0 bar 1x Receiver 27 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 300 kW, forward |
|
Cargo capacity |
Grain & Bales: 6.800 m³ |
|
Number of holds |
1 Dimensions:57,80 x 13,40 x 8,93 m, boxshaped |
|
Hold ventilation |
30 air changes per hour |
|
Number of hatch |
1 Dimensions: 57,85 x 13,40 m |
|
Hatch cover type |
McGregor folding, 8 segments |
|
Strength |
On deck: 2,5 t/m² On tanktop: 17,6 t/m² On tweendeck: 2,5 t/m² |
|
Tank capacities |
Water ballast: 1.846,5 t / 1.801 m³ Fresh water: 83,7 t IFO: 486 t / 490 m³ MDO: 121,11 t / 140 m³ |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m |
|
Lifting equipment |
1x Crane - SWL 1,4 t 2x Cranes - each SWL 60.00 t, portside |
|
Accommodation |
14 persons, 13 cabins |
|
Manager |
Briese Schiffahrts GmbH & Co. KG |
|
Owner |
Briese Schiffahrts GmbH & Co. KG MS "NEUWERK" |
