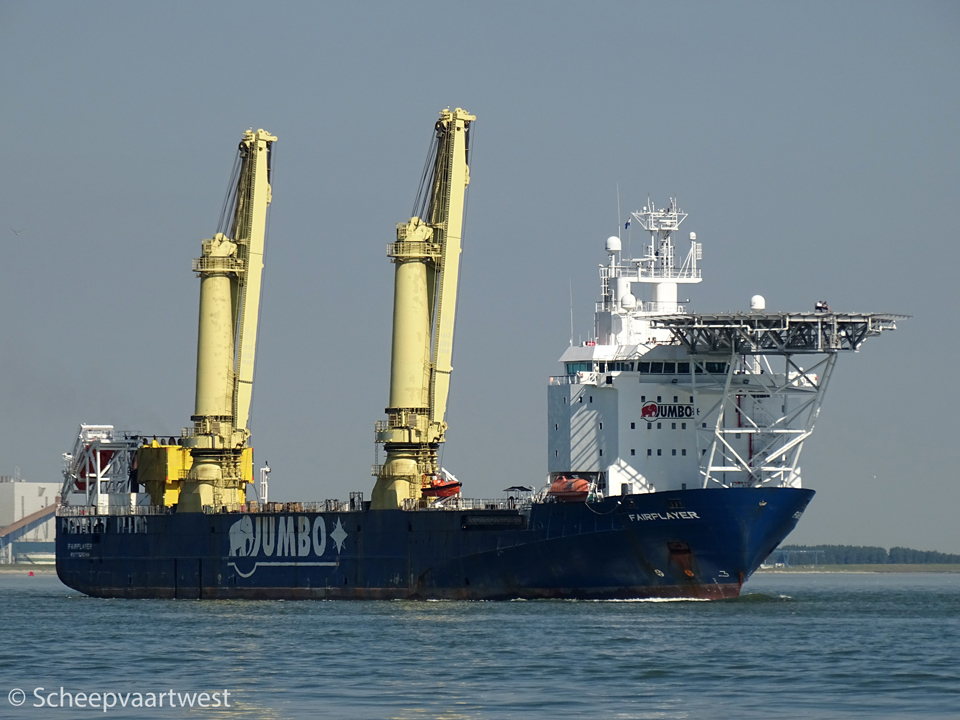

Fairplayer 02

esterschelde 19 July 2016

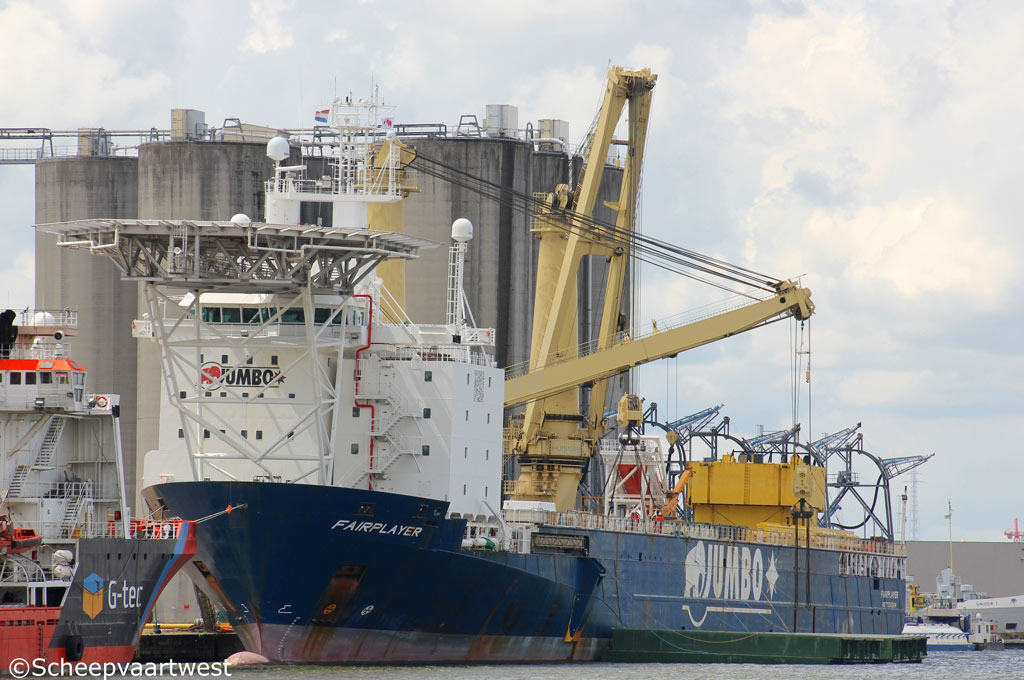

Fairplayer 01
Antwerpen 14/07/16



Name

FAIRPLAYER

Type

General cargo ship - Heavy load carrier - Strengthened for heavy cargos

IMO-number

9371579

Call sign

PHPU

Flag

The Netherlands

Port of registry

Rotterdam

GT

15.027 t registered

DWT

Summer: 13.000 t

NT

4.244 t registered

Number of 20ft containers

426

Length

144,10 m overall

133,80 m between perpendiculars

Breadth

26,70 m moulded

Draught

7,50 m

Depth

14,10 m to main deck

Speed

Transit average: 17,0 knots

Economical: 14,0 knots

Built

2008

Launch date

17.08.2007

Date of completion

22.08.2008

Builder

Damen Shipyards Galati (Santierul Naval Damen Galati S.A.)
Galatz
Romania

Yard number

551006

Hull material

Steel

Continuous decks

1

Main engine

2x MAK-Caterpillar 9M32C - 4 stroke 9 cylinder diesel engines each 4.500 kW

Propellers

2x Wärtsilä controllable pitch propellers

Shaft generator

2x AEM SE 630 M4 each 3.000 kW

Generators

2x Caterpillar 3516B diesel generatorsets each 1.824 kW

Emergency generator

1x Diesel generatorset 465 kW

Bow thruster

2x Wärtsilä 1.500 kW

Retractable azimuth

1x Wärtsilä 1.700 kW

Hold capacity

Bale: 18.130 m³

Main deck area / Cargo hold

Main deck: 3.100 m²

Tween deck: 1.700 m²

Lower hold/tanktop: 1.400 m²

Max. permitted loads

Main deck: 9-12 t/m²

Tween deck: 7,0 t/m²

Lower hold/tanktop: 12,0 t/m²

Tank capacities

Fuel oil: 1.340 t

MGO: 290 t

Fresh water: 200 t

Helideck

12,8 t (Sikorsky S-92-CAP437)

Cargo gear

2x Huisman mast cranes - SWL 900 t each

Ancillary lifting: 2x 37,5 t

Accommodation

Up to 80 persons (incl. hospital)

13x Single cabins

33x Double cabins

Manager

Kahn Scheepvaart B.V.
Havenstraat 23
3115 HC Schiedam
The Netherlands

Operator

Jumbo

Owner

Jumbo Navigation N.V.
Willemstad (NA)
Netherlands Antilles

Latest data adjustment

21 August 2016
