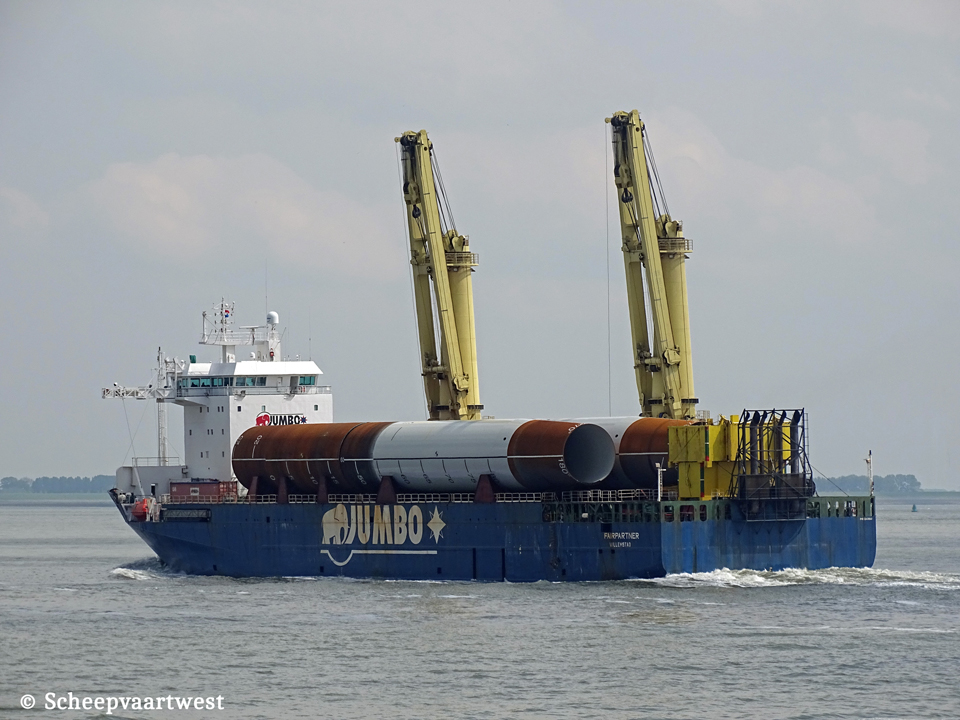

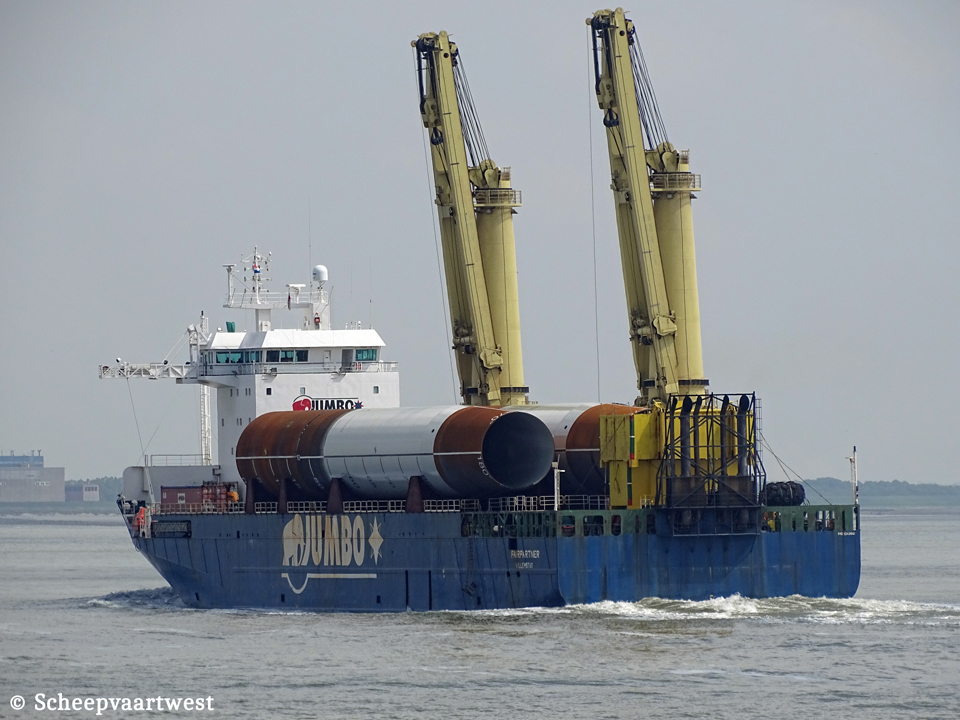

| Westerschelde 29 April 2020 |
 |
 |
|
| Westerschelde 29/04/20 | Westerschelde 29/04/20 | |
|
Name |
FAIRPARTNER |
|
Type |
Heavy lift cargo - Strengthened for heavy cargoes |
|
IMO-number |
9243849 |
|
Call sign |
PHEC |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flags |
07/2004 - 11/2005 Netherlands Antilles, Willemstad - Call sign: PJXK |
|
GT |
15.022 t Suez: 14.672 t |
|
DWT |
11.281 t |
|
NT |
4.506 t Suez: 10.926 t Panama: 12.592 t |
|
Number of 20ft containers |
426 |
|
Length |
143,21 m overall 133,80 m between perpendiculars |
|
Breadth |
26,60 m extreme 26,50 m moulded |
|
Draught |
Summer: 7,50 m |
|
Air draft |
47,32 m |
|
Depth |
14,10 m moulded |
|
Speed |
Max: 16,5 knots |
|
Built |
2004 |
|
Keel laid |
12/05/2002 |
|
Launch date |
30/10/2003 |
|
Delivery date |
09/07/2004 |
|
Builder |
Damen Shipyards Galati (Santierul Naval Damen Galati S.A.) Galatz Rumania Yard number: 9102 |
|
Builder completion |
B.V. Damen Scheepswerf Hoogezand Foxhol The Netherlands Yard number: 994 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
2x MAN-B&W Type 9L32/40 - 4 stroke single acting 9 cylinder 320 x 400 mm combustion engine each 4.320 kW / 5.870 bhp Total: 8.640 kW / 11.740 hp Builder: MAN-B&W Diesel A.G., Augsburg - Germany |
|
Shaft generator |
2x AEM SE 630 M4 each 3.000 kW |
|
Generators |
1x Caterpillar 3516B main diesel generatorset 1.824 kW 1x Caterpillar 3508B main diesel generatorset 740 kW |
|
Emergency generator |
1x Diesel generatorset 280 kW |
|
Bow thrusters |
1x Lips controllable pitch thruster 1,450 kW |
|
Thrusters |
1x Wärtsilä - 1.450 kW 1x Rolls Royce - 1.500 kW |
|
Retractable Azimuth |
1x Wärtsilä - 1.700 kW |
|
Number of holds |
1 Lower hold: 82,65 x 17,00 m Tweendeck: 101,95 x 17,00 m Total height: 12,50 m |
|
Cargo hold capacity |
Bale: 18.030 m³ with tweendecks in holds |
|
Number of hatches |
1 |
|
Number of tweendecks |
1x Adjustable in height |
|
Free deck space |
3.100 m² |
|
Max permitted loads |
Tanktop: 12,0 t/m² Tweendecks: 7,0 t/m² Hatchcovers: 5x 8,7 t/m² + 3x 12 t/m² |
|
Tank capacities |
HFO: 1.268 t MGO: 164 t Fresh water: 140,82 t |
|
Cargo gear |
2x Huisman mast cranes - SWL 900 t each Combination: 1.88 t 2x Ancillary lifting: SWL 37,5 t each |
|
Person capacity |
80 |
|
Manager |
Kahn Scheepvaart B.V. Rotterdam The Netherlands |
|
Previous managers |
07/2004 - 11/2005 Kahn Scheepvaart B.V., Willemstad (NA) - Netherlands Antilles |
|
Operator |
Jumbo The Netherlands |
|
Registered owner |
Fairpartner BV Willemstad (NA) Netherlands Antilles |
|
Latest data adjustment |
18 May 2023 |
