Brugge, Belgium 15 May 2022 |
 |
 |
 |
 |
|||

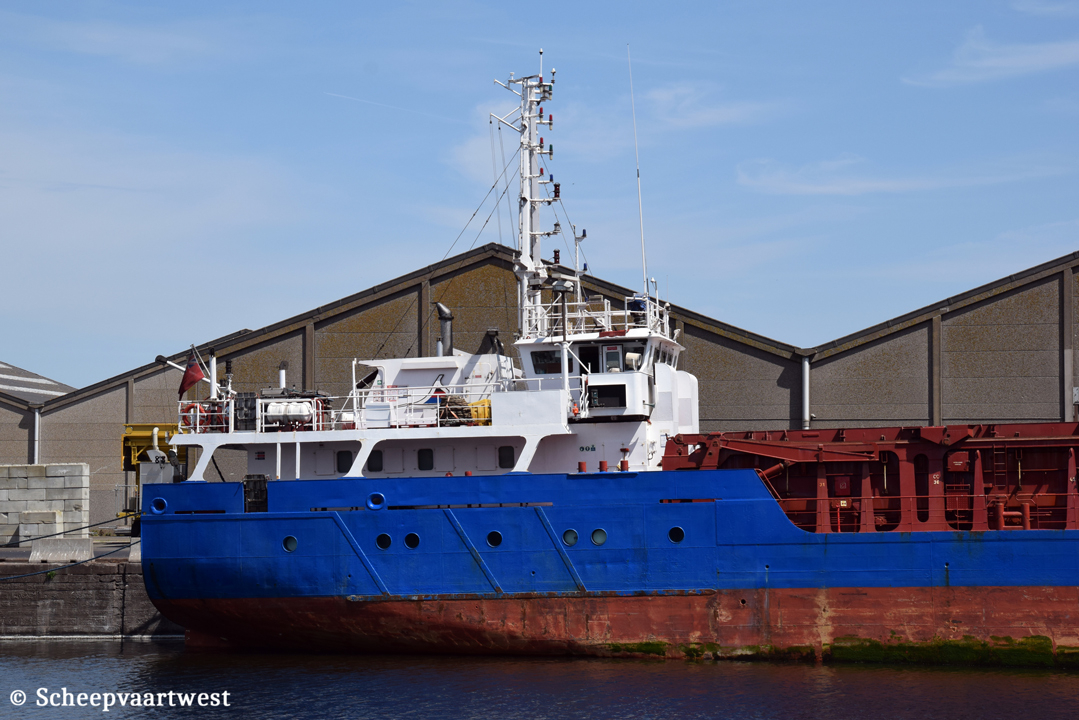

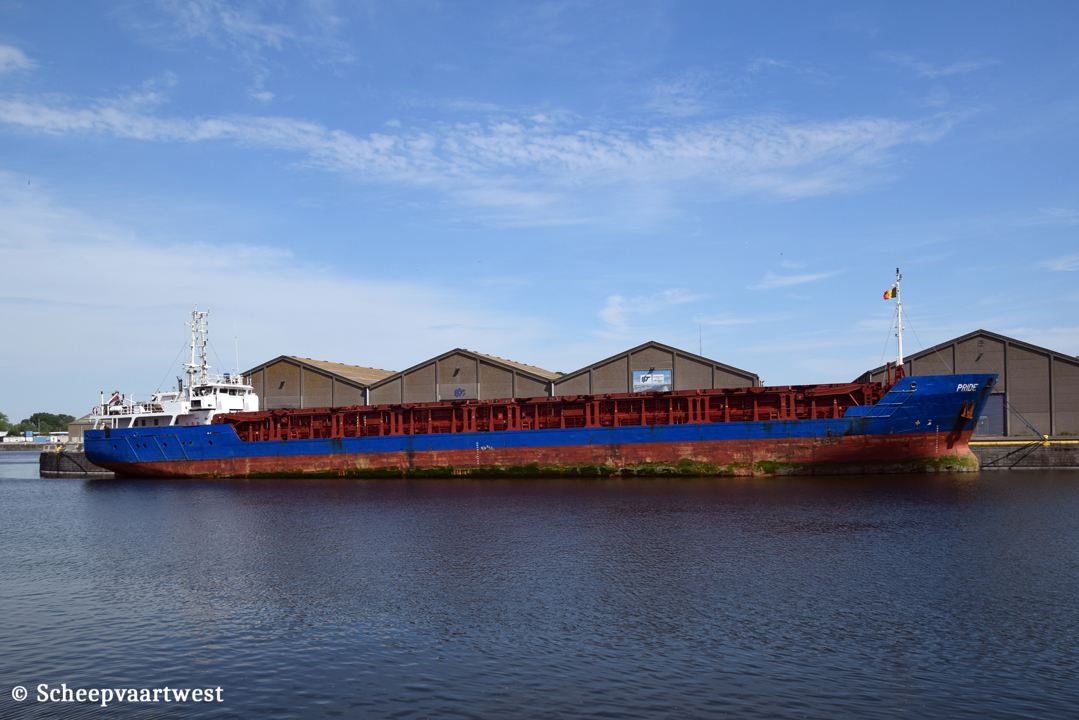

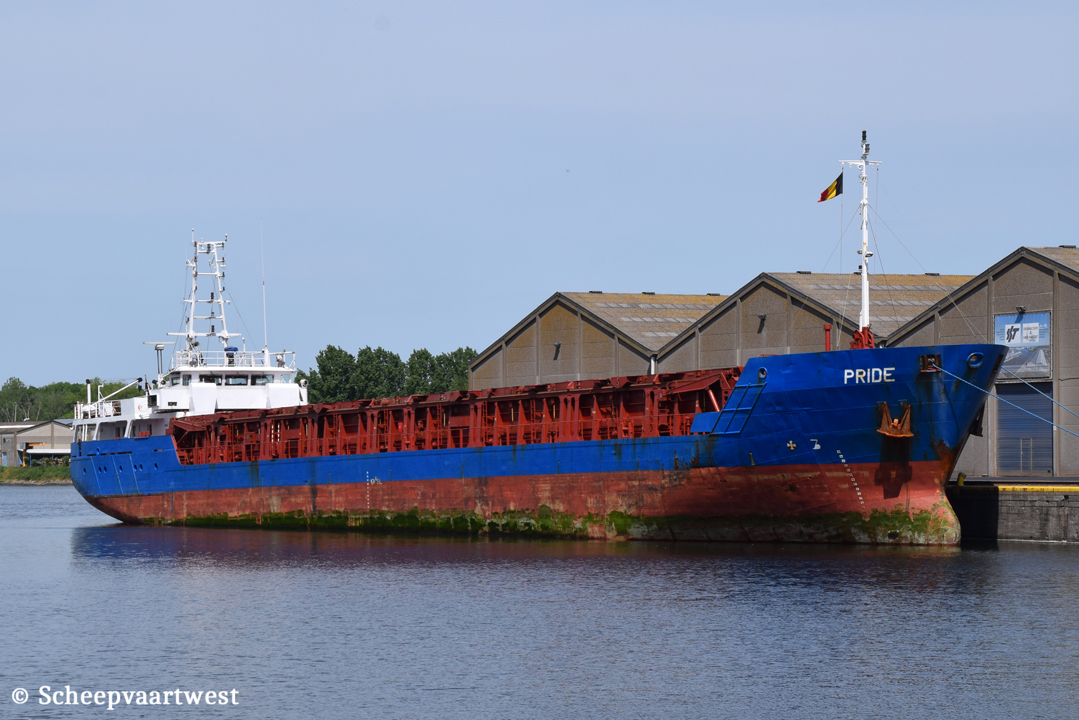

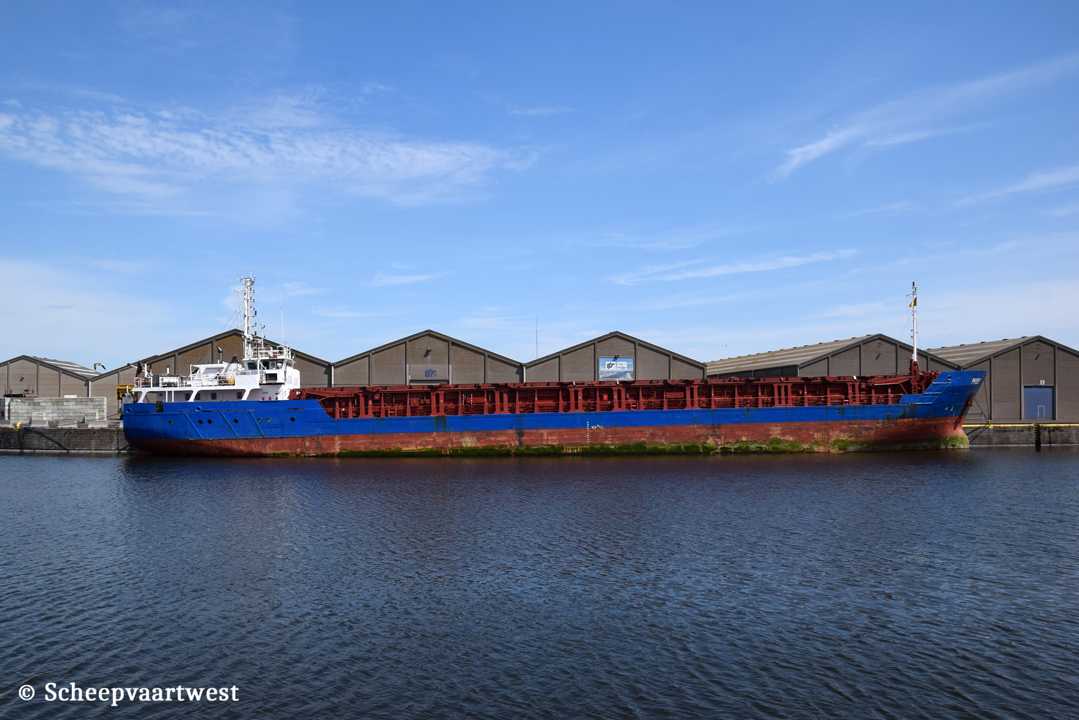

| Brugge 15/05/22 | Brugge 15/05/22 | Brugge 15/05/22 | Antwerpen 07/07/16 |
|
Name |
PRIDE |
|
Previous names |
2002 built as: Accumersiel 07/2002 - 06/2005 Wani Pride |
|
Type |
Multi-purpose general cargo ship - Equipped for carriage of containers - grain and timber fitted - strengthened for heavy cargoes Sea-Rhine-Trader |
|
IMO-number |
9252931 |
|
Call sign |
ZDFD7 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
2.061 t |
|
DWT |
Summer: 2.981 t |
|
NT |
1.161 t |
|
Number of 20ft containers |
In hold: 78 On deck: 48 Total: 126 |
|
Number of 40ft containers |
In hold: 36 + 6 TEU On deck: 24 Total: 60 + 6 TEU |
|
Container capacity 14t |
108 |
|
Reefer plug |
6x On deck in the aft part |
|
Length |
88,49 m overall 84,96 m between perpendiculars |
|
Breadth |
11,35 m extreme |
|
Draught |
4,94 m |
|
Height above keel |
12,60 m bridge and mast in lower position 25,10 m bridge and mast in upper position |
|
Forecastle |
6,46 m |
|
Poop |
16,80 m |
|
Depth |
6,40 m |
|
Speed |
11,5 knots |
|
Built |
2002 |
|
Keel laid |
29/06/1998 |
|
Launch date |
03/04/2002 |
|
Date of completion |
01/06/2002 |
|
Builder |
Slovenske Lodenice Komarno a.s. Prevadzkaren Slovakia |
|
Yard number |
1714 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2x Movable, can be placed in 9 positions |
|
Main engine |
1x Klöckner-Humbolt-Deutz AG SBV 6M628 - 4 stroke single acting 6 cylinder 240 x 280 mm combustion engine 1.125 kW / 1.530 hp at 900 rpm Start type: Compressed air |
|
Propellers |
1x Fixed pitch propeller - aft at 264 rpm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
1x AvK DSG 43M1-4 - 80 kW at 1.500 rpm |
|
Generators |
3x Caterpillar 3306 DITA main diesel generatorsets each 161 kW at 1.500 rpm |
|
Emergency generator |
1x Caterpillar 3304 DITA diesel generatorset 94 kW at 1.500 rpm |
|
Bow thruster |
1x Jastram BU-20F - 130 kW |
|
Number of holds |
1 57,50 x 9,00 x 8,04 m |
|
Cargo hold capacity |
Grain: abt. 4.165 m³ - 146.944 ft³ / Bale: abt. 4.080 m³ - 144.084 ft³ |
|
Hold ventilation |
6x Air-changes per hour |
|
Number of hatches |
1 57,50 x 9,00 m |
|
Hatch cover type |
MacGregor folding type with hydraulic control |
|
Max. permitted loads |
Tantop: 12,0 t/m² On deck: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.144,6 m³ Marine gas oil: 135,7 m³ Fresh water: 23,4 m³ |
|
Anchor equipment |
3x Anchor each 1.440 kg Length: 412,50 m Diameter: 30 mm |
|
Cargo gear |
Gearless |
|
Accommodation |
8 persons, 7 cabins |
|
ISM & commercial manager |
Briese Dry Cargo GmbH & Co. KG Hafenstrasse 12 26789 Leer Germany |
|
Registered owner |
Briese Chartering Carriers GmbH & Co KG Care of Briese Schiffahrts GmbH & Co KG Hafenstrasse 12 26789 Leer Germany |
|
Remarks |
Wheelhouse hydraulic lowering |
|
Latest data adjustment |
18 June 2022 |
