Westerschelde 11 April 2014 |
|
Name |

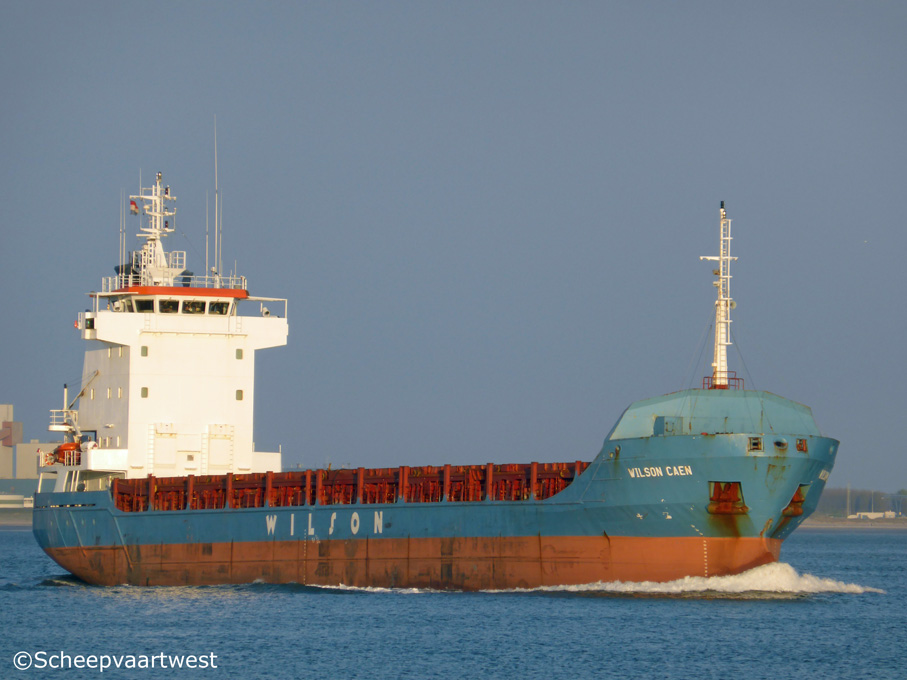

WILSON CAEN |
|
Previous names |
1998 - 07.2004 Dutch Navigator |
|
Type |
General dry cargo ship - Equipped for carriage of containers - Strengthened for heavy |
|
IMO-number |
9173290 |
|
Call sign |
8PRM |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
Previous flags |
1998 - 04.2004 The Netherlands, Rotterdam - Call sign: PFSL |
|
GT |
2.999 t |
|
DWT |
Summer: 4.451,6 t Winter: 4.310 t |
|
NT |
1.733 t |
|
Number of 20ft containers |
297 |
|
Length |
99,91 m overall 95,52 m between perpendiculars |
|
Breadth |
12,80 m extreme |
|
Draught |
Summer: 5,67 m Winter: 5,55 m |
|
Air draft |
25,35 m |
|
Depth |
7,55 m moulded |
|
Speed |
Service: 12,5 knots |
|
Built |
1998 |
|
Keel laid |
20.06.1997 |
|
Launch date |
12.01.1998 |
|
Date of completion |
20.04.1998 |
|
Builder |
Slovenske Lodenice a.s. |
|
Yard number |
3007 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2x Movable bulkheads, 5 positions each hatch |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz MWM TBD 645 L 6 - 4 stroke single acting 6 cylinder 330 x 450 mm diesel engine 2.550 kW Manufacturer: MTU Friedrichshafen G.m.b.H., Friedrichshafen - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 800 kVA |
|
Generators |
2x Deutz MWM TBD 234 V 8 diesel generatorset each 201 kVA |
|
Emergency generator |
1x Deutz F6L912 diesel generatorset 49 kVA |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1 69,86 x 10,20 x 8,01 m |
|
Cargo hold capacity |
Bale & Grain: 5.841 m³ / 260.275 ft³ |
|
Number of hatches |
2 Hatch 1: 37,95 x 10,20 m Hatch 2: 31,20 x 10,20 m |
|
Hatch type |
MacGregor Folding type |
|
Max. permitted loads |
Deck/hatch cover: 17 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.704,60 m³ Fuel main engine: 172 m³ Fuel auxiliary: 32,5 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 36 mm |
|
Manager |
Wilson Ship Management AS |
|
Previous managers |
1998 - 04.2004 Rederij Wessels B.V., Rotterdam - The Netherlands |
|
Operator |
Wilson |
|
Owner |
Wilson Shipowning AS |
|
Previous names & owners |
1998 - 04.2004 Dutch Navigator - m.s. Dutch Harbour Navigator C.V., Rotterdam - The Netherlands |
|
Latest data adjustment |
02 June 2016 |
