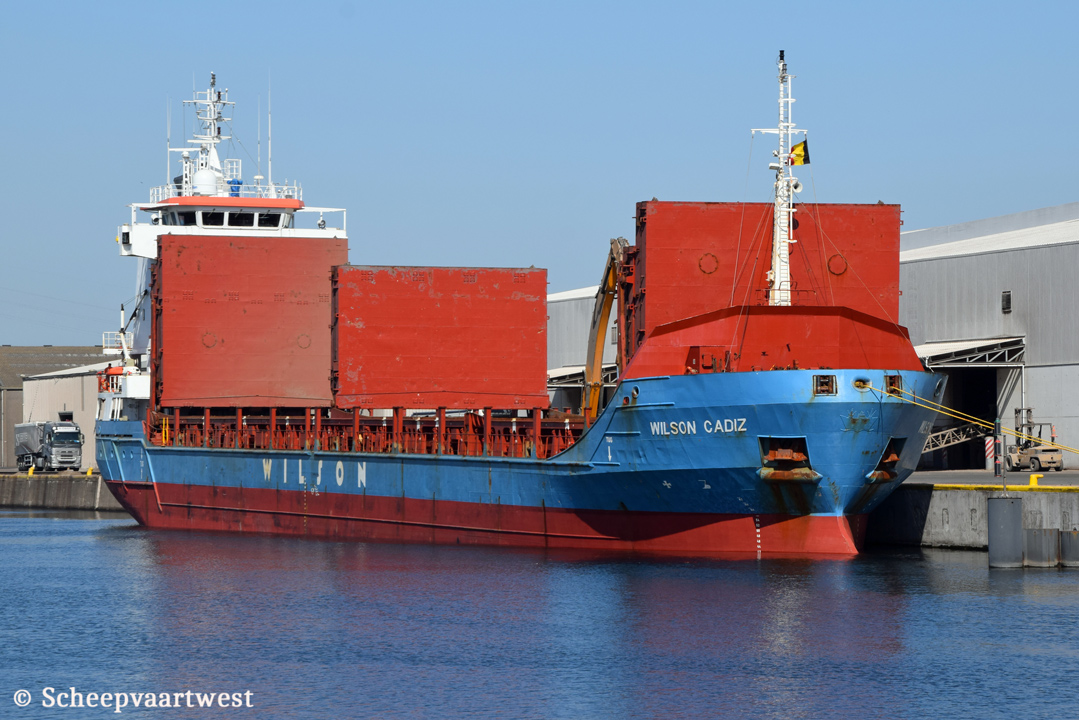

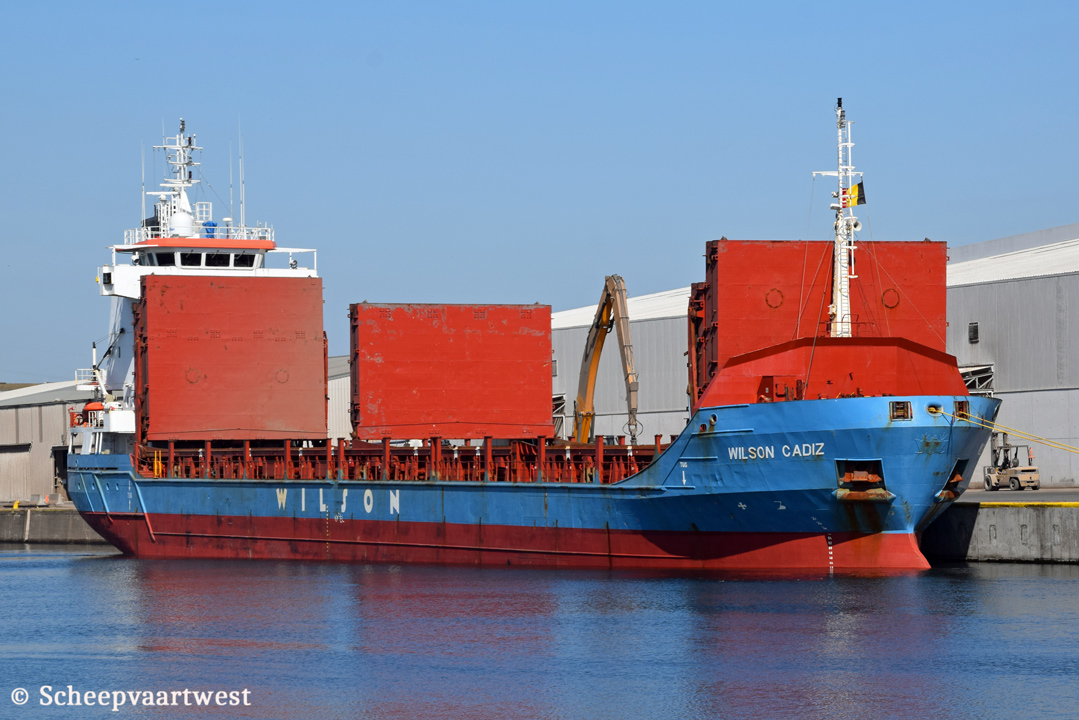

Brugge, Belgium 30 March 2021 |
 |
| Brugge 30/03/21 |
|
Name |
WILSON CADIZ |
|
Previous names |
2000 - 03/2006 Dutch Sun |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9192612 |
|
Call sign |
8PSY |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
Previous flags |
2000 - 03/2006 The Netherlands, Rotterdam - Call sign: PEAP |
|
GT |
2.999 t |
|
DWT |
Summer: 4.432 t Winter: 4.291 t |
|
NT |
1.733 t |
|
Number of 20ft containers |
In hold: 129 On deck: 168 Total: 297 |
|
Container capacity 14t |
185 |
|
Reefer plugs |
30 on deck |
|
Length |
99,91 m overall 95,52 m between perpendiculars |
|
Breadth |
12,80 m extreme |
|
Draught |
Summer: 5,67 m Winter: 5,56 m |
|
Keel to top antenna |
Fwd / aft: 23,60 m / 26,80 m 18,80 m lowered mast |
|
Air draft |
25,35 m |
|
Depth |
7,55 m moulded |
|
Speed |
13,0 knots |
|
Built |
2000 |
|
Keel laid |
24/03/1998 |
|
Launch date |
23/12/1998 |
|
Date of completion |
18/01/2010 |
|
Builder |
Slovenske Lodenice Komarno a.s. Komarno Slovakia |
|
Yard number |
3010 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2x In 5 positions each hatch |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz MWM TBD645-L6. - 4 stroke singlke acting 6 cylinder 330 x 150 mm combustion engine 3.419 bhp Manufacturer: Klöckner-Humboldt-Deutz A.G., Mannheim - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
1x 675 kW |
|
Generators |
2x Deutz TBD234V8 main diesel generatorsets each 190 kW |
|
Emergency generator |
1x F6L912 diesel generatorset |
|
Bow thruster |
1x 220 kW |
|
Number of holds |
1x Box 69,86 x 10,20 x 8,00 m |
|
Cargo hold capacity |
Grain/Bale: 5.785 m³ |
|
Number of hatches |
2 Hatch 1: 37,95 x 10,20 m Hatch 2: 31,20 x 10,20 m |
|
Hatch type |
MacGregor multifold crocodile |
|
Max permitted loads |
Deck/hatches: 1,7 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Water ballast: 1.704,6 m³ MGO: 108 m³ IFO: 117 m³ |
|
Anchor equipment |
Length: 825,00 m Diameter: 36 mm |
|
Crew |
8 |
|
Manager |
Wilson Ship Management AS Bergen Norway |
|
Previous managers |
2000 - 03/2006 Rederij Wessels B.V., Rotterdam - The Netherlands |
|
Registered owner |
Wilson Shipowning AS Bergen Norway |
|
Previous names & owners |
2000 - 03/2006 Dutch Sun - m.s. Dutch Harbour Sun B.V., Rotterdam - The Netherlands |
|
Latest data adjustment |
29 April 2021 |
