Westerschelde 13 Fenruary 2020 |
 |
 |
 |
||
| Westerschelde 20/08/15 | Westerschelde 20/08/15 | Westerschelde 10/04/16 | ||
|
Name |

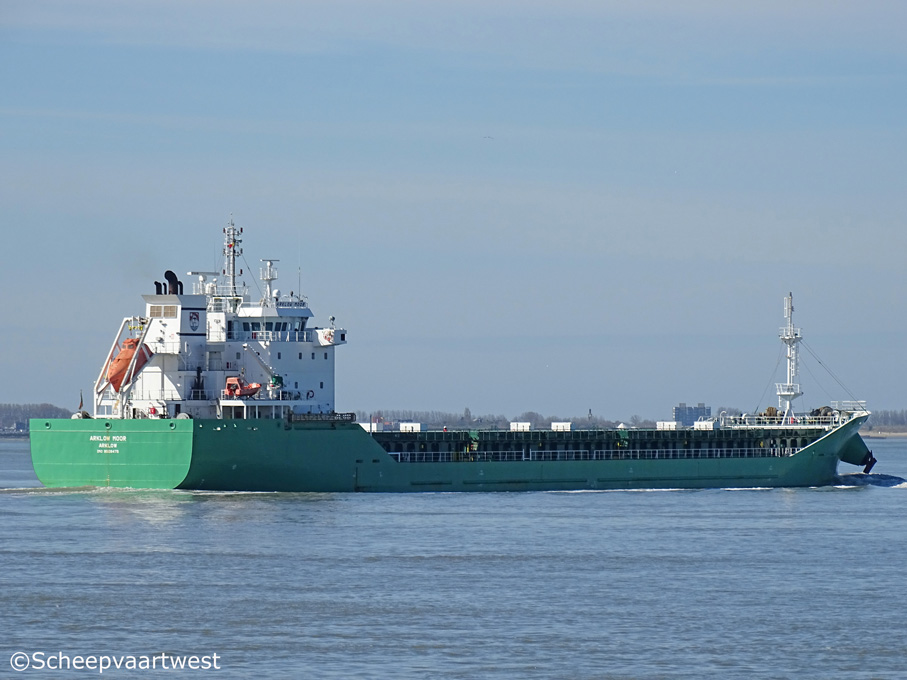

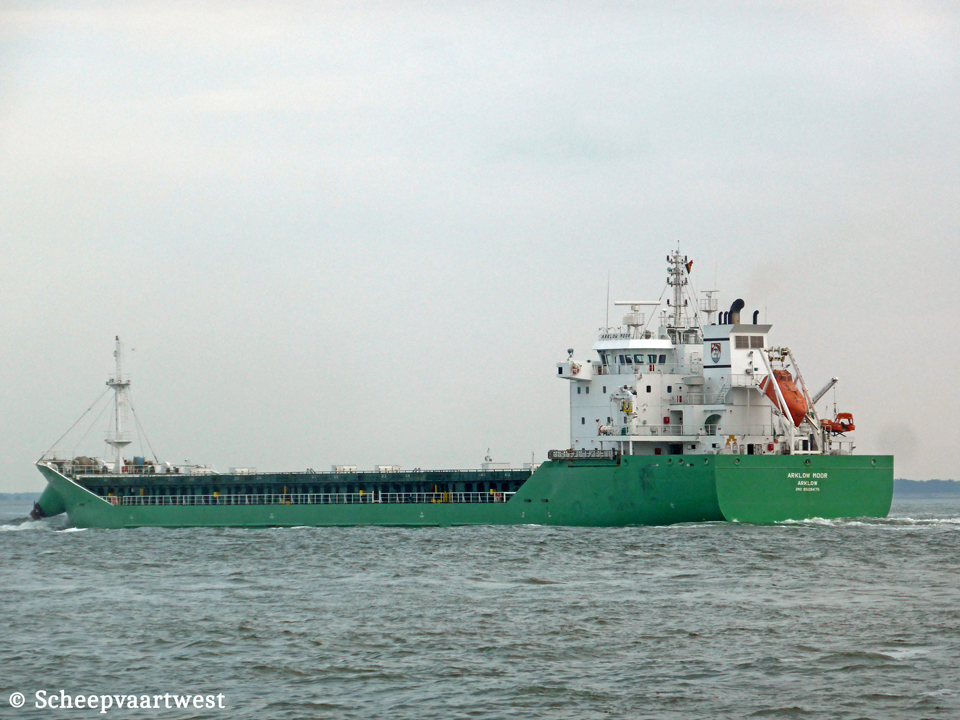

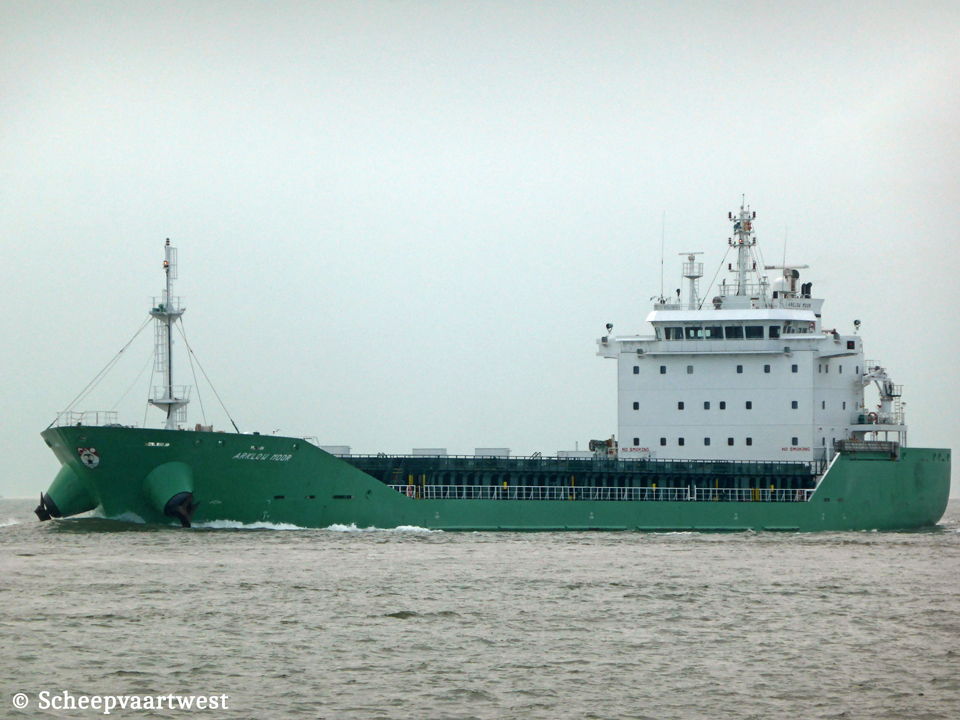

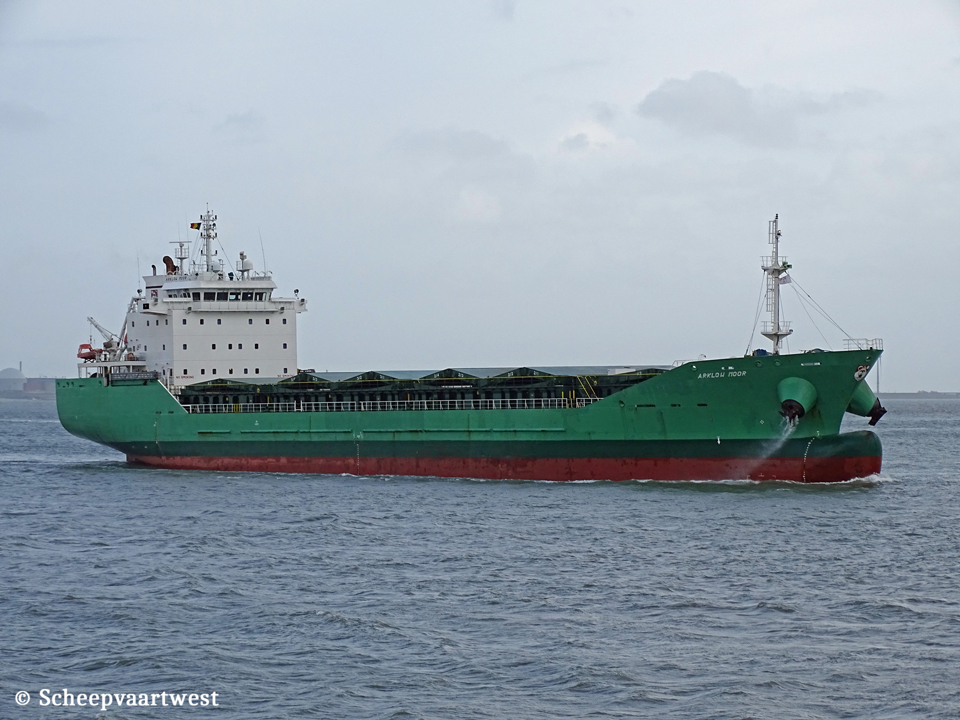

ARKLOW MOOR |
|
Type |
General cargo ship - Heavycargo |
|
IMO-number |
9509475 |
|
Call sign |
EILM3 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
9.758 |
|
DWT |
Summer: 14.744,50 t Winter: 14.242,09 t |
|
NT |
5.240 |
|
Displacement |
19.700 t |
|
Length |
136,47 m overall 128,50 m between perpendiculars |
|
Breadth |
21,00 m moulded 21,30 m extreme |
|
Draught |
Summer: 8,88 m Winter: 8,70 m 6,50 m max. ballast |
|
Air draft |
Min.: 29,10 m |
|
Freeboard |
2.539 mm |
|
Depth |
11,40 m moulded |
|
Speed |
14,5 knots Service: 13,0 knots |
|
Built |
2011 |
|
Keel laid |
28/08/2008 |
|
Launch date |
11/09/2010 |
|
Date of completion |
16/12/2011 |
|
Builder |
Mokpo Shipbuilding Industry Co., Ltd. South Korea |
|
Yard number |
08-199 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.337 hp at 500 rpm Built: 12/05/2010 Builder: Caterpillar Motoren Rostock GmbH, Rostock - Germany |
|
Propellers |
1x Rolls Royce screw propeller controllable pitch - aft at 500 rpm |
|
Boilers |
1x CHO 29,00 m² - 10,0 bar 1x CHR 115,00 m² - 10,0 bar |
|
Shaft generator |
1x 1.190 kVA - 952 kW |
|
Generators |
2x Yanmar main diesel generatorsets each 438 kVA - 350 kW - 595 hp |
|
Emergency generator |
1x STX diesel generatorset 125 kVA - 100 kW - 166 hp |
|
Bow thruster |
1x 750 kW |
|
Number of hold |
4 |
|
Total capacity of holds |
Hold 1: 3.132 m³ / 110.600 ft³ Hold 2: 5.762 m³ / 203.480 ft³ Hold 3: 5.628 m³ / 198.742 ft³ Hold 4: 3.587 m³ / 126.668 ft³ Total 18.110,53 m³ / 639.490 ft³ |
|
Hold ventilation |
Mechanical ventilation 6 changes per hour in empty holds |
|
Number of hatches |
4 Hatch 1: 15,40 x 12,60 m Hatch 2: 23,10 x 17,80 m Hatch 3: 23,10 x 17,80 m Hatch 4: 15,40 x 17,80 m |
|
Hatch type |
Weather tight folding type |
|
Max. permitted loads |
On hatches: 1,8 t/m² Tanktop: 20,0 t/m² |
|
Tank capacities |
Fuel oil: 626 m³ Ballast: 5.480 t Diesel: 143 m³ Fresh water: 136 m³ |
|
ISM & commercial manager |
Arklow Shipping ULC Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Registered owner |
Coastal Shipping PLC c/o Arklow Shipping Unlimited Co (Arklow Shipping ULC) North Beach, Ferrybank, Arklow, Co Wicklow Ireland |
|
Latest data adjustment |
26 December 2025 |
